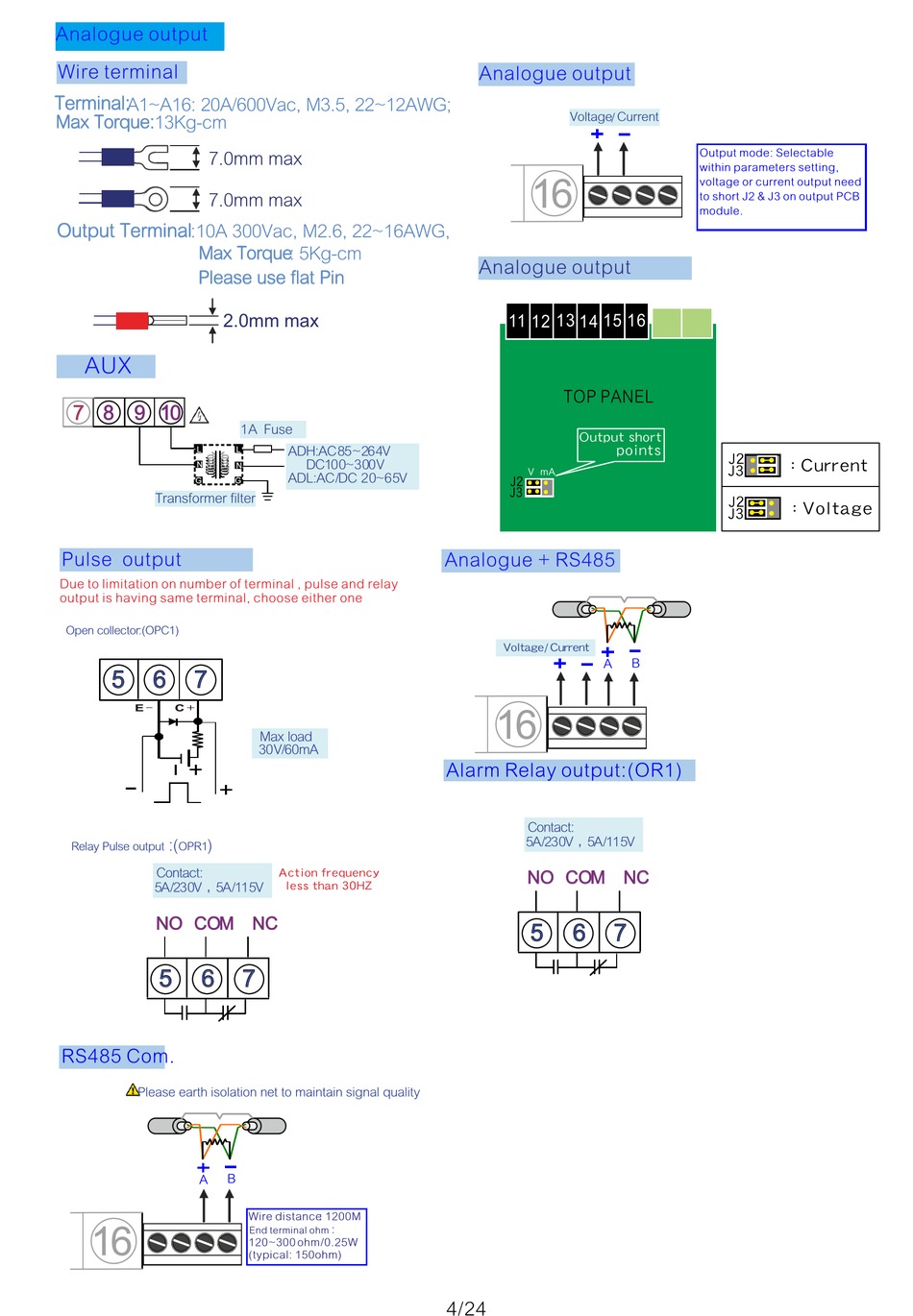

ADTEK CPM-10 Operation Manual page 5

Analogue output
Wire terminal
Terminal:
A1~A16: 20A/600Vac, M3.5, 22~12AWG;
Max Torque:
13Kg-cm
7.0mm max
7.0mm max
Output Terminal
:10A 300Vac, M2.6, 22~16AWG,
Max Torque
Please use flat Pin
2.0mm max
AUX
7 8 9 10
L
N
G
Transformer filter
Pulse output
Due to limitation on number of terminal , pulse and relay
output is having same terminal, choose either one
Open collector:(OPC1)
5 6 7
E - C +
:( )
Relay Pulse output OPR1
Contact:
5A/230V 5A/115V ，
NO COM NC
5 6
RS 485 Com .
Please earth isolation net to maintain signal quality
A B
16
: 5Kg-cm
1A Fuse
ADH:AC85~264V
L
DC100~300V
N
ADL:AC/DC 20~65V
G
Max load
30V/60mA
Action frequency
less than 30HZ
7
Wire distance : 1200M
:
End terminal ohm
120~300 ohm/0.25W
(typical: 150ohm)
Analogue output
Voltage / Current
16
Analogue output
11 12 13 15
14
TOP PANEL
Output short
points
V mA
J2
J3
Analogue + RS485
Voltage / Current
A
16
Alarm Relay output:(OR1)
Contact:
5A/230V 5A/115V
，
NO COM NC
5 6 7
4 24 /
Output mode: Selectable
within parameters setting,
voltage or current output need
to short J2 & J3 on output PCB
module.
16
J2
：
J3
J2
：
J3
B
Current
Voltage
