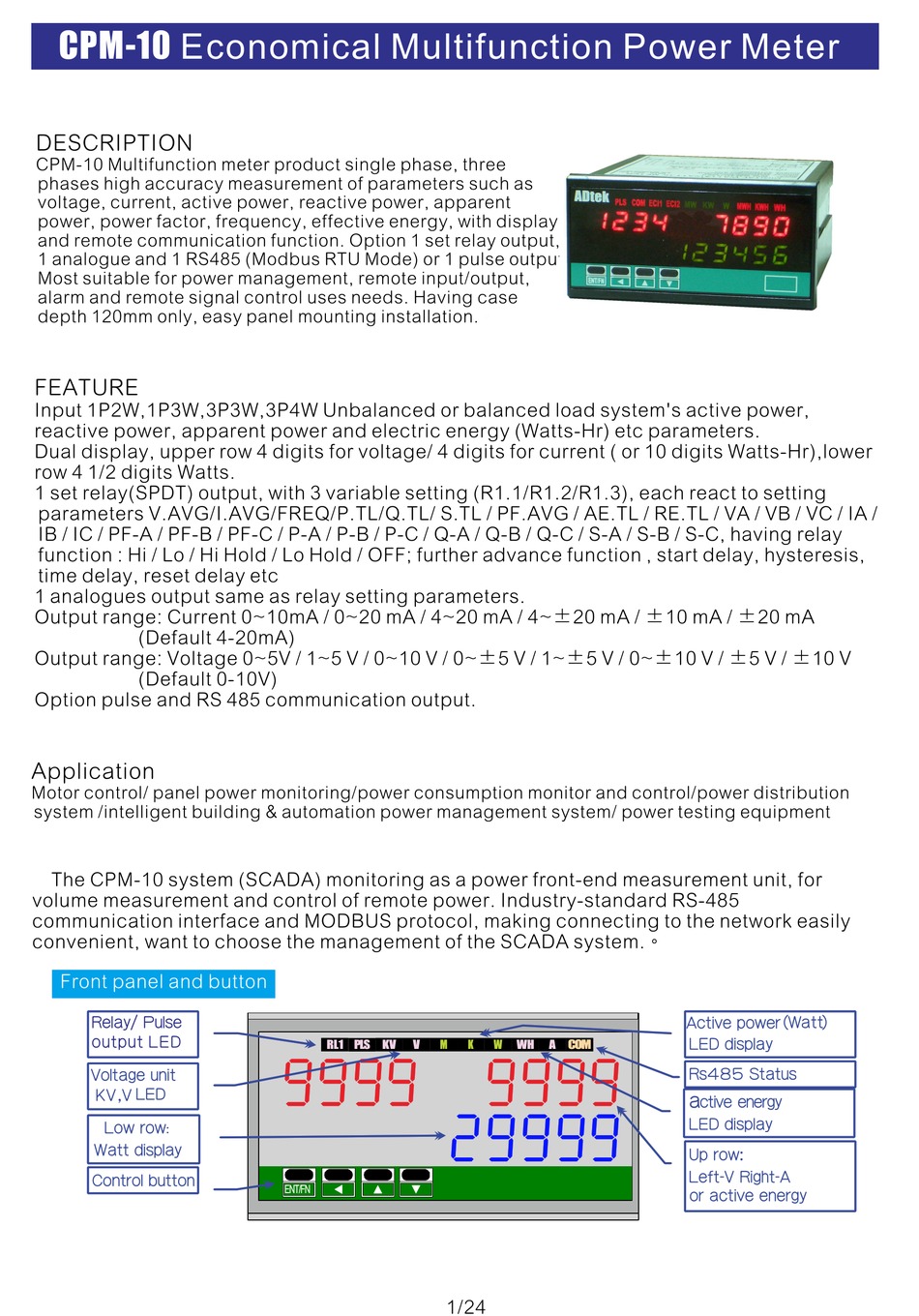

CPM-10 Economical Multifunction Power Meter
DESCRIPTION
CPM-10 Multifunction meter product single phase, three
phases high accuracy measurement of parameters such as
voltage, current, active power, reactive power, apparent
power, power factor, frequency, effective energy, with display
and remote communication function. Option 1 set relay output,
1 analogue and 1 RS485 (Modbus RTU Mode) or 1 pulse output.
Most suitable for power management, remote input/output,
alarm and remote signal control uses needs. Having case
depth 120mm only, easy panel mounting installation.
FEATURE
Input 1P2W,1P3W,3P3W,3P4W Unbalanced or balanced load system's active power,
reactive power, apparent power and electric energy (Watts-Hr) etc parameters.
Dual display, upper row 4 digits for voltage/ 4 digits for current ( or 10 digits Watts-Hr),lower
row 4 1/2 digits Watts.
1 set relay(SPDT) output, with 3 variable setting (R1.1/R1.2/R1.3), each react to setting
parameters V.AVG/I.AVG/FREQ/P.TL/Q.TL/ S.TL / PF.AVG / AE.TL / RE.TL / VA / VB / VC / IA /
IB / IC / PF-A / PF-B / PF-C / P-A / P-B / P-C / Q-A / Q-B / Q-C / S-A / S-B / S-C, having relay
function : Hi / Lo / Hi Hold / Lo H
time delay, reset delay etc
1 analogues output same as relay setting parameters.
Output range: Current 0~10mA / 0~20 mA / 4~20 mA / 4~±20 mA / ±10 mA / ±20 mA
(Default 4-20mA)
Output range: Voltage 0~5V / 1~5 V / 0~10 V / 0~±5 V / 1~±5 V / 0~±10 V / ±5 V / ±10 V
(Default 0-10V)
Option pulse and RS 485 communication output.
Application
Motor control/ panel power monitoring/power consumption monitor and control/power distribution
system /intelligent building & automation power management system/ power testing equipment
The CPM-10 system (SCADA) monitoring as a power front-end measurement unit, for
volume measurement and control of remote power. Industry-standard RS-485
communication interface and MODBUS protocol, making connecting to the network easily
convenient, want to choose the management of the SCADA system.。
Front panel and button
Relay/ Pulse
output LED
Voltage unit
KV V , LED
Low row
:
Watt display
Control button
old / OF F; further advance function , start delay, hysteresis,
RL1 PLS KV V M K
RL1 PLS KV V M
ENT/FN
ENT/FN
1/24
。
W WH A COM
K W WH A COM
Active power (Watt)
LED display
Rs485 Status
a
ctive energy
LED display
Up row:
Left-V Right-A
or active energy
