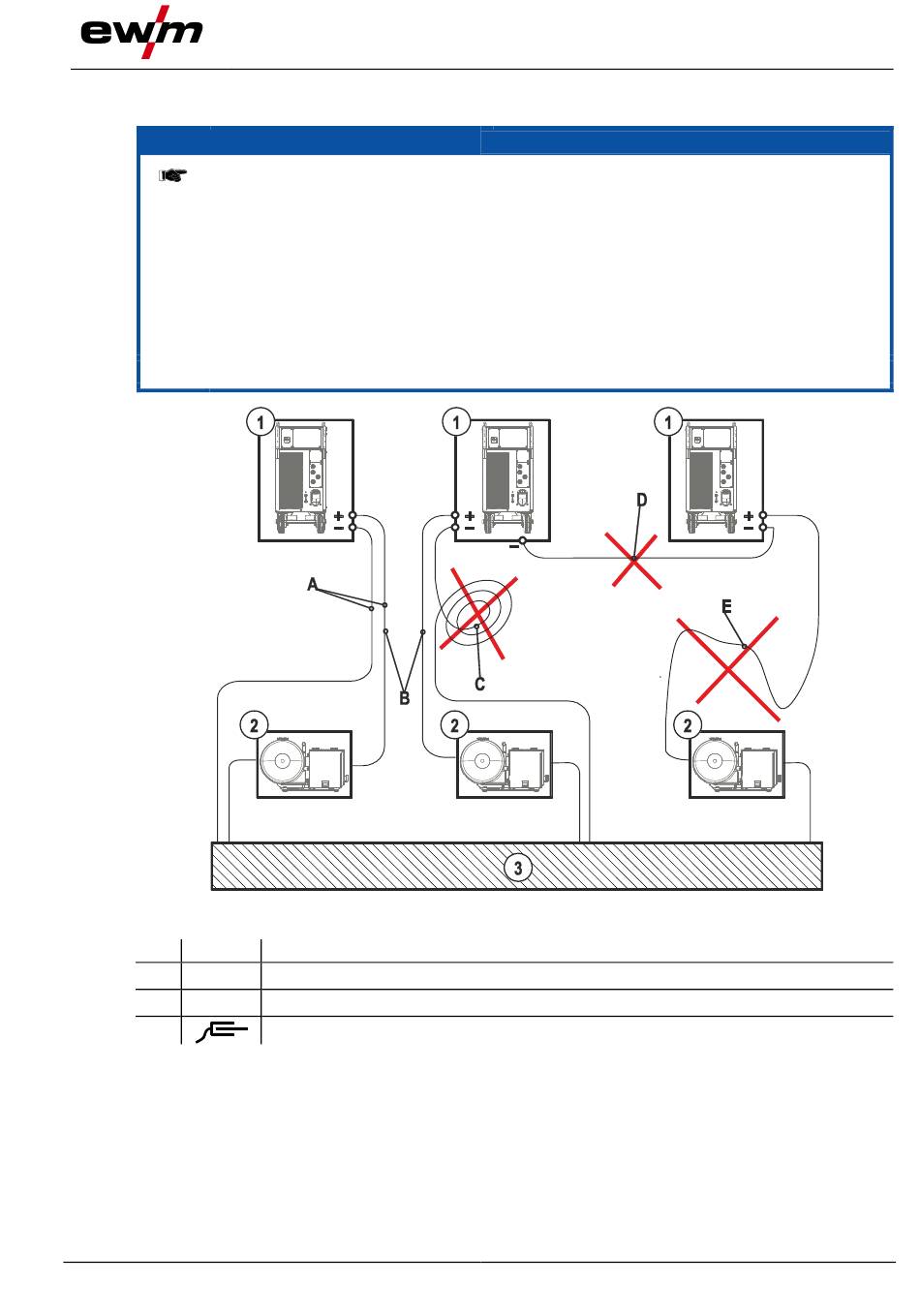

Notes on the installation of welding current leads
Incorrectly installed welding current leads can cause faults in the arc (flickering).
Install welding lead and hose package in parallel and as close together as possible.
A
Keep the welding lead and hose packages of each welding machine separate, with an
B
installation distance of at least 15 cm!
Fully unroll welding current leads, torch hose packages and intermediate hose
C
packages. Avoid loops!
Use an individual welding lead to the workpiece for each welding machine!
D
Connect the work clamp close to the welding point.
Always keep leads as short as possible!
E
Item Symbol
1
2
3
099-004846-EW501
8.01.2014
Description
0
Welding machine
Wire feed unit
Workpiece
Design and function
Notes on the installation of welding current leads
NOTE
Figure 5-1
