Item Symbol
1
2
3
4
5
6
7
8
9
•
Extend and lay out the torch hose package.
•
Unfasten pressure units and fold out (clamping units and pressure rollers will automatically flip
upwards).
•
Unwind welding wire carefully from the wire spool and insert through the wire inlet nipple over the
drive roller grooves and the guide pipe into the capillary tube and Teflon core using guide pipe.
•
Press the clamping element with the pressure roller back downwards and fold the wire units back up
again (wire electrode should be in the groove on the drive roller).
•
Set the contact pressure with the adjusting nuts of the pressure unit.
•
Press the wire inching button until the wire electrode projects out of the welding torch.
Automatic inching stop
Touch the welding torch against the workpiece during inching. Inching of the welding wire will stop as
soon it touches the workpiece.
099-004846-EW501
8.01.2014
Description 0
Pressure unit
Clamping unit
Knurled nut
Pressure roller
Wire feed nipple
Guide tube
Drive rollers
"Undetachable" knurled screws
Wire feed nipple with wire stabiliser
Design and function

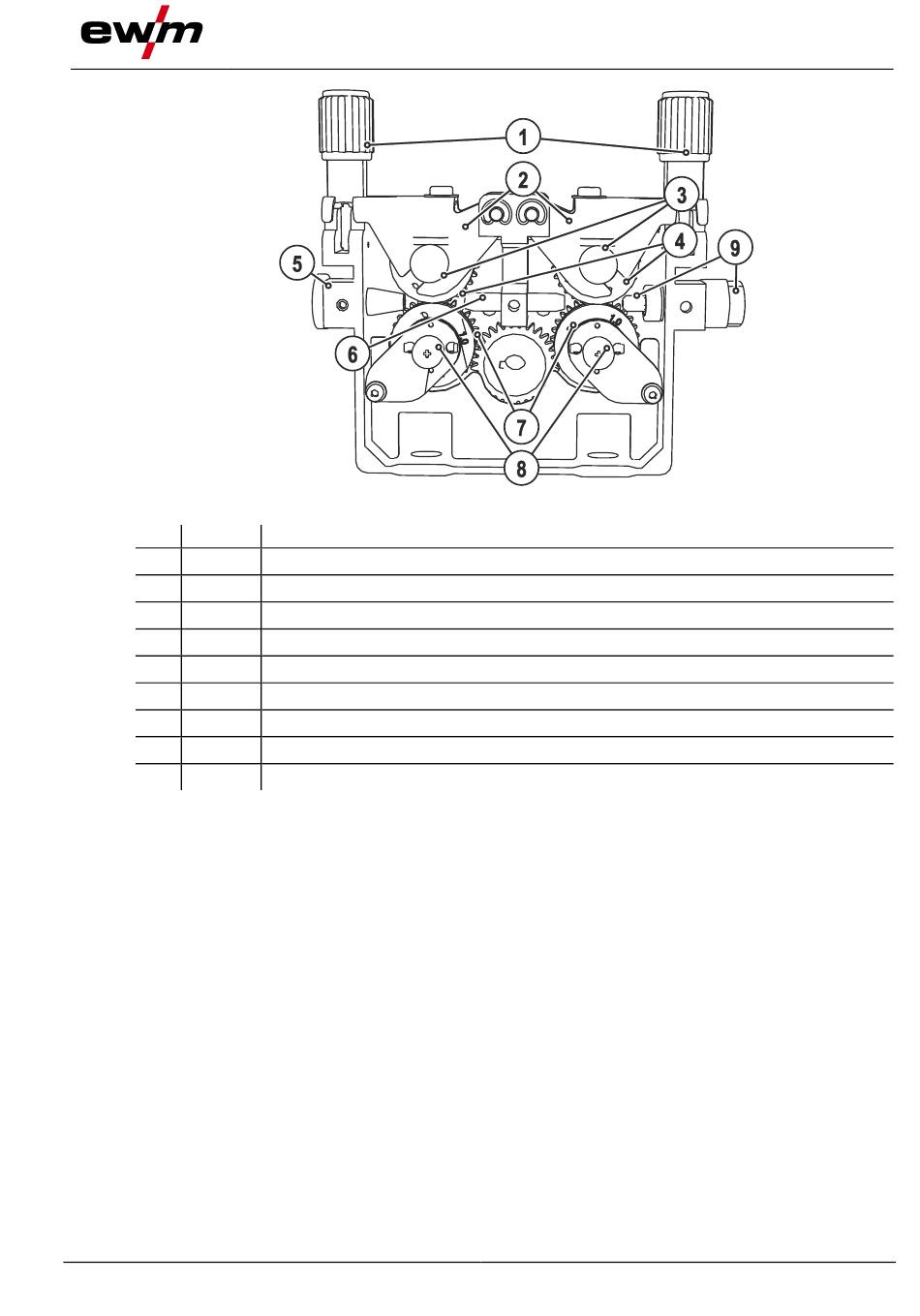

Figure 5-6
MIG/MAG welding
