Machine description – quick overview
Machine control – Operating elements
Machine control – Concealed operating elements
4.4.1
Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
22
Description 0
Select welding parameters button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Signal light, gas pre-flow time
Setting range 0.0 s to 20.0 s
Signal light, start program (P
•
Wire speed:1% to 200% of the main program P
•
Correction of the arc length -9.9 V to +9.9 V
Signal light, start time
Setting range, absolute 0.0 s to 20.0 s (0.1 s increments)
Signal light, slope time program P
Setting range 0.0 s to 20.0 s (0.1 s increments)
Signal light, main program (P
•
Wire speed WF-min. to WF-max.
•
Correction of the arc length -9.9 V to +9.9 V
Signal light, dynamics
Setting range -40 to +40
Signal light, duration of main program P
Setting range 0.1 s to 20.0 s (0.1 s increments).
Used e.g. in connection with the super pulse function
Signal light, reduced main program (P
•
Wire speed:1% to 200% of the main program P
•
Correction of the arc length -9.9 V to +9.9 V
Signal light, duration reduced main program P
Setting range 0.0 s to 20.0 s (0.1 s increments).
Used e.g. in connection with the super pulse function.
Signal light, slope time program P
Setting range 0.0 s to 20.0 s (0.1 s increments)
Signal light, end program (P
•
Wire speed:1% to 200% of the main program P
•
Correction of the arc length -9.9 V to +9.9 V
Signal light, duration of end program P
Setting range 0.0 s to 20.0 s (0.1 s increments)
Signal light, gas post-flow time
Setting range 0.0 s to 20.0 s

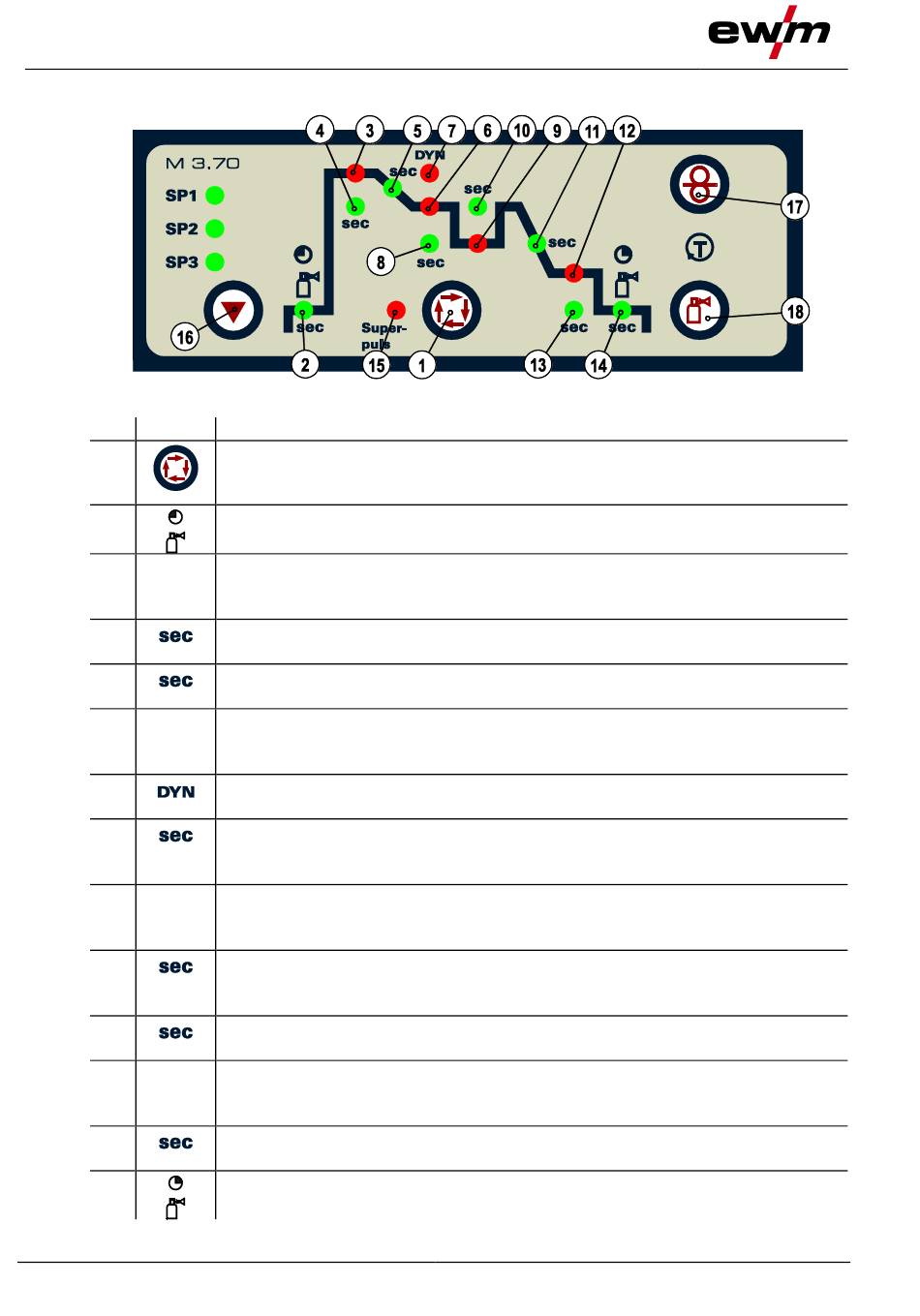

Figure 4-5
)
START
A
to main program P
START
)
A
A
)
B
A
B
(or P ) to end program P
A B
)
END
A
END
A
END
