What's in the box?
In addition to this guide, the package includes the following items:
WF-2572
1
Appearance
Technical Support：service@icpdas.com
Antenna
(ANT-225-05)
WF-2572 Quick Start
v1.00, September 2018
Screw Driver
(1C016)
No. Description
1
Antenna Connector
2
3
USB Connector
4
Ethernet Connector
5
Power Connector
6
Operating Mode Switch
USB Cable
(CA-USB18)
P1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA WF-2572
Summary of Contents for ICP DAS USA WF-2572

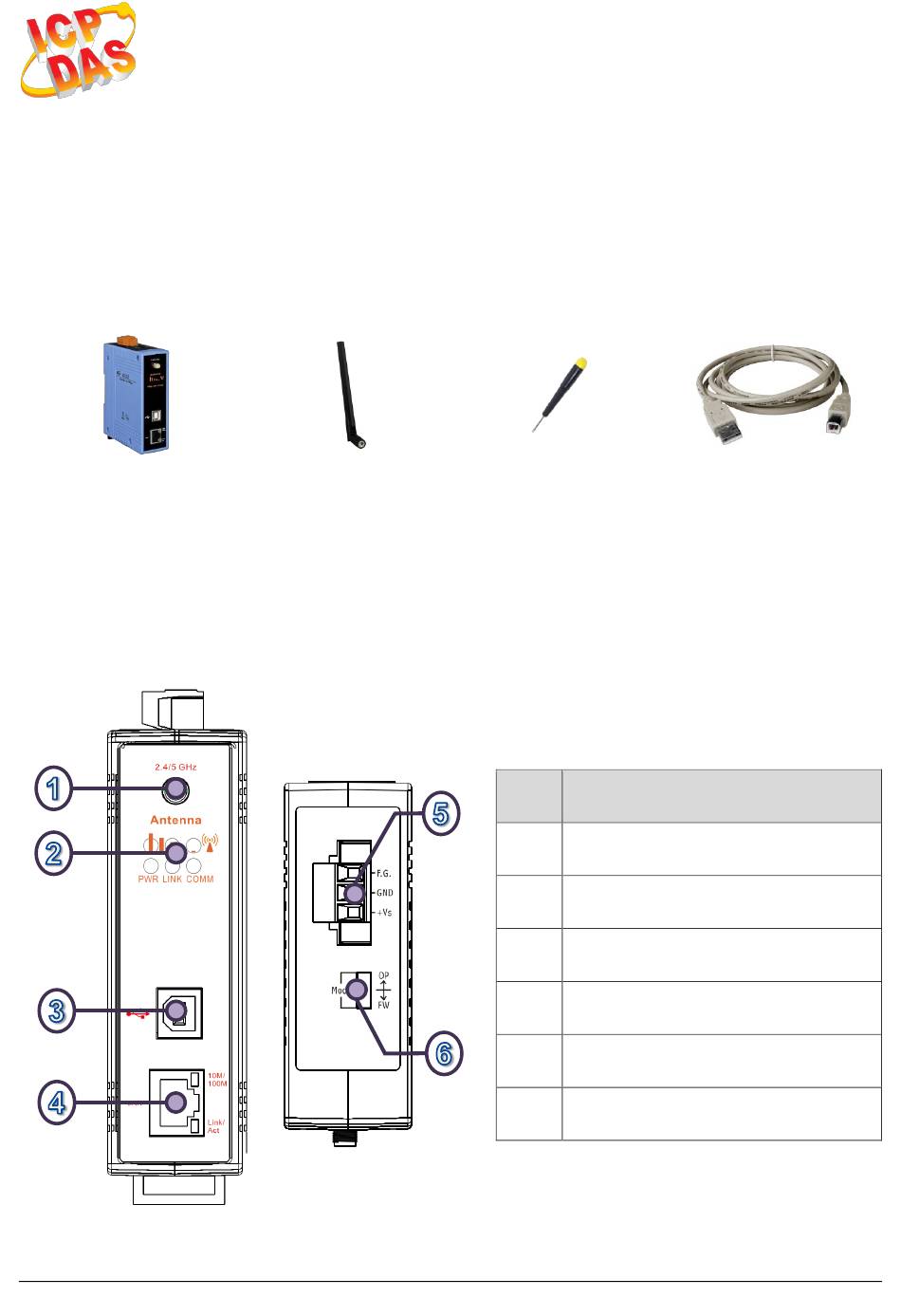

- Page 1 WF-2572 Quick Start v1.00, September 2018 What’s in the box? In addition to this guide, the package includes the following items: USB Cable Antenna Screw Driver WF-2572 (CA-USB18) (1C016) (ANT-225-05) Appearance No. Description Antenna Connector LED Indicator USB Connector Ethernet Connector...
-
Page 2: Led Indicator
LED Indicator LED Status Description Limit-AP mode Signal strength-Green Always ON Device at Limit-AP mode Always ON AP at 2.4 GHz Signal strength-Yellow AP at 5 GHz Always ON Power Good Power (PWR) Power failure Blink/Always ON Unconnected Connection Status(LINK) Connected Blink Data transmission... -
Page 3: Hardware Installation
Connection Application Users can use two WF-2572s or one WF-2572 module with the computer that supports wireless network connection structure in the application. It can complete the purpose of wireless network connection by this way. - Page 4 Connection Setting – Infrastructure Mode chitecture has shown in Figure 2. The WF-2572 connects to the PC by The test ar Ethernet interface. The Wi-Fi AP connects to other PC by Ethernet interface. The WF-2572 sets to “Infrastructure” mode that it connects to the Wi-Fi AP.
- Page 5 5. Set device MAC. If you didn’t know the device, you can refer to chapter 4.4.3 on user manual. 6. Click “Write Setting” to save setting Set Computer’s IP Step2. 1. Please set the computer’s IP to 192.168.255.10 and 192.168.255.11. Figure 4.
- Page 6 Figure 5. Ping Success Connection Setting – Limit-AP Mode The test architecture has shown in Figure 6. Both of WF-2572 connects to the computer by Ethernet. One of the WF-2572 sets to the Limit-AP mode. The other WF-2572 sets to the Infrastructure mode.
- Page 7 7. Please set IP/Submask/Gateway of WF-2572. 8. Please click the “Write Setting” button to save the setting. Figure 7. Setting Wi-Fi Parameter The WF-2572’s Infrastructure setting can refer to chapter 4.4 on user manual. Step2. Step3. Setting PC’s IP 1. As shown in Figure 4, the PC’s is “192.168.255.10” and “192.168.255.11”.
-
Page 8: Technical Support
Technical Support Please contact us if you have any questions about products. ICP DAS website: http://www.icpdas.com Email: service@icpdas.com Technical support：service@icpdas.com...
