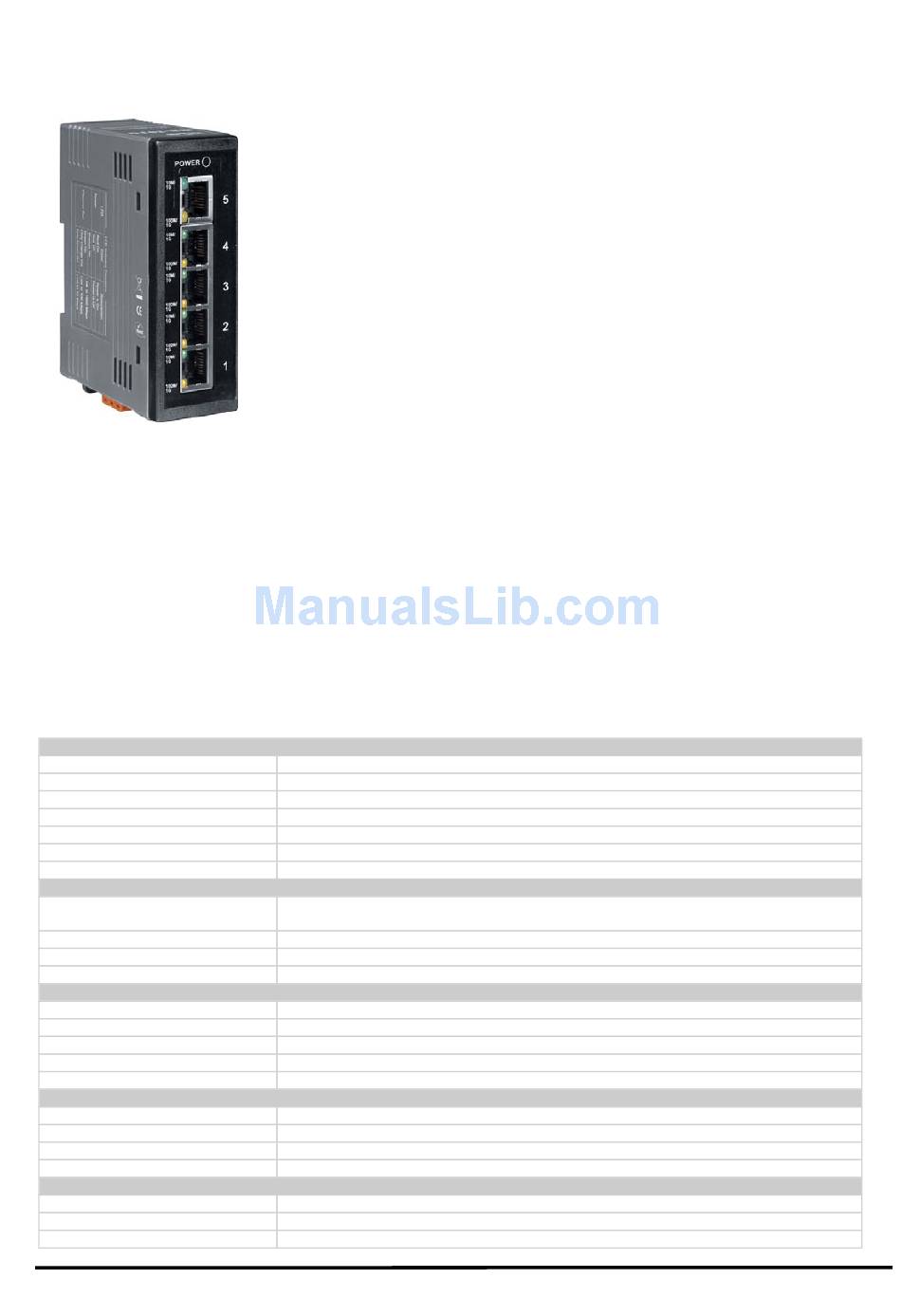

ICP DAS USA NS-205G User Manual

5-Port Industrial 10/100/1000 Mbps Ethernet Switch

Features:

•
Power saving Technology
•
Automatic MDI / MDI-X crossover for plug-and-play
•
Each port supports both 10/100 and 1000 Mbps speed auto negotiation
•
Store-and-forward architecture
•
Full duplex IEEE 802.3x and half duplex backpressure flow control
•
10 Gbps high performance memory bandwidth.
•
Supports operating temperatures from –40 ~ +75 ℃
•
DIN-Rail

Specifications:

Technology
Standards
Processing Type
MAC Addresses
Memory Bandwidth
Frame buffer memory
Jumbo Frames
Flow Control
Interface
RJ45 ports
LED Indicators
Ethernet Isolation
Frame Ground for EMS Protection
Power
Input Voltage Range
Power consumption
Protection
Frame Ground for EMS Protection
Connection
Mechanical
Case
Flammability
Dimensions
Installation
Environmental
Operating Temperature
Storage Temperature
Ambient Relative Humidity
NS-205G

Introduction:

The NS-205G is 5-port unmanaged gigabit switches that support 10/100/1000
Base-T, with a 10/100/1000M auto-negotiation feature and auto MDI/MDIX
function. It can connect 5 workstations and automatically switches the
transmission speed (10 Mbps or 100 Mbps or 1000Mbps) for corresponding
connections.
That is an ideal solution for bandwidth-hungry applications (such as high
resolution digital image transmission, video/audio file streaming/downloading,
and server farm connectivity).
The flow control mechanism is also negotiated. There is link/data rate LEDs for
each port to aid trouble-shooting. Port connectors are shielded RJ-45
IEEE 802.3, 802.3u, 802.3ab and 802.3x
Store & forward, wire speed switching
8K
10 Gbps
1 Mbit
9K for Speed 1000M
IEEE802.3x flow control, back pressure flow control
10/100/1000 Base-T auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Power, 10/100/1000M, Link/Act.
1500 Vrms 1 minute
Yes
+10 ~ +30VDC (Non-isolation)
0.2A@24VDC, +/- 5% arrowed with 1000M Full duplex
Power reverse polarity protection
Yes
3-Pin Removable Terminal Block
Plastic
UL 94V-0
33mm x 107mm x 78mm (W x H x D)
DIN rail mount
-40 ~ +75°C
-40 ~ +85°C
10% to 90% non-condensing
NS-205G User's Manual (Version 1.1, Nov/2008) --------------- 1
