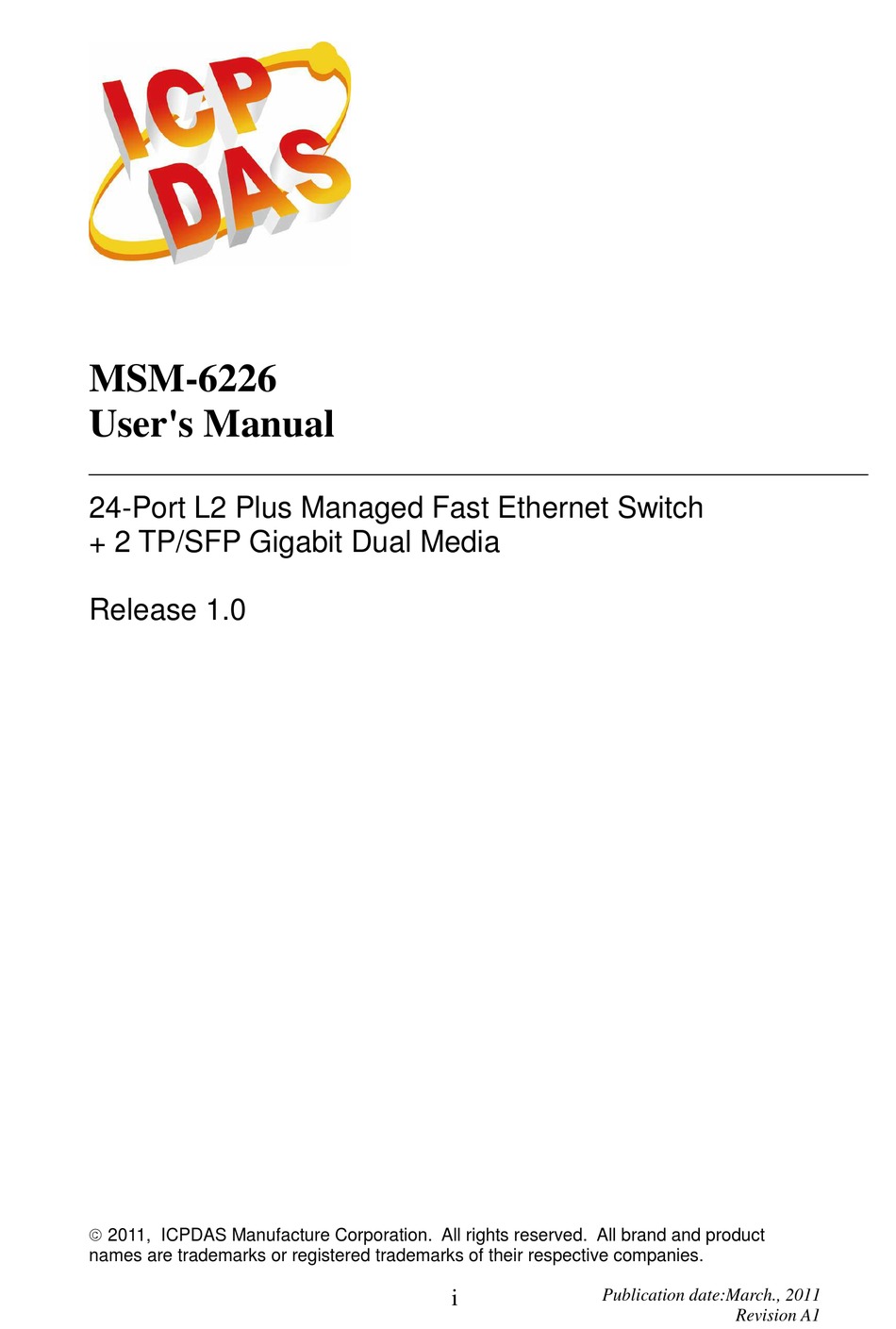

Page 1 MSM-6226 User's Manual 24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media Release 1.0  2011, ICPDAS Manufacture Corporation. All rights reserved. All brand and product names are trademarks or registered trademarks of their respective companies.
Page 2 The information in this document is subject to change without notice. Unless the explicit written permission of ICPDAS Manufacture Corporation, this document in whole or in part shall not be replicated or modified or amended or transmitted, in any from, or by any means manual, electric, electronic, electromagnetic, mechanical, optical or otherwise for any purpose.
Page 3 external or electrical stress, shipment, storage, accident, abuse or misuse, (3) Product is used in an extra hazardous environment or activities, serial number on the Product has been removed or defaced, or (5) this warranty will be of no effect if the repair is via anyone other than Manufacture or the authorized agents.
Page 4: Table Of Contents
2-1-3-3. Switch Cascading in Topology... 11 2-1-4. Configuring the Management Agent of MSM-6226... 14 2-1-4-1. Configuring the Management Agent of MSM-6226 through the Serial RS-232 Port ... 14 2-1-4-2. Configuring the Management Agent of MSM-6226 through the Ethernet Port... 16 2-1-5.
Page 5 3-9-1. IGMP Setting ... 65 3-9-2. IGMP VLAN ... 66 3-9-3. Group Allow ... 68 3-9-4. MVR Setting... 69 3-9-5. Multicast Status ... 70 3-9-6. RADIUS IGMP ... 71 3-10. LLDP ... 73 3-10-1 . LLDP State ... 73 3-10-2 . LLDP Entry ... 75 3-10-3 .
Page 6 Appendix B Null Modem Cable Specifications ...282...
Page 7: Revision History
Revision History Release Date Revision 2011/03/21 Publication date: March., 2011 Revision A1...
Page 8: Caution
If you need using outdoor device connect to this device with cable then you need to addition an arrester on the cable between outdoor device and this device. Fig. Addition an arrester between outdoor device and this switch Electronic Emission Notices Federal Communications Commission (FCC) Statement...
Page 10 Before importing / exporting configuration please make sure the firmware version is always the same. After firmware upgrade, the switch will remove the configuration automatically to latest firmware version. Publication date:March., 2011 Revision A1...
Page 11 In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the MSM-6226 through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step. Many explanation in detail of hardware and software functions are shown as well as the examples of the operation for web-based interface and command-line interface (CLI).
Page 13: Introduction
1. Introduction 1-1. Overview of MSM-6226 MSM-6226, a 24 Fast Ethernet + 2 Gigabit L2 Managed Switch, which implemented 24 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP(or GBIC), is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications.
Page 14 DHCP Snooping: This feature enables the DHCP Snooping (MSM-6226 switch) to include information about client when forwarding DHCP requests from a DHCP client to a DHCP server via Trust Port. DHCP snooping can be configured on LAN switches to harden the security on the LAN to only allow clients with specific IP/MAC addresses to have access to the network.
Page 15 MAC address. Binding these two address types together allows the transmission of data between the layers. The primary purpose of IP- MAC binding is to restrict the access to a switch to a number of authorized users. Only the authorized client can access the Switch’s port by checking the pair of IP-MAC Addresses and port number with the pre-configured database.
Page 16: Checklist
Hardware • Supports 24-port 10/100M TP ports with Nway and auto MDIX function • In MSM-6226, it supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for removable SFP module supporting 1000M SFP fiber module • In MSM-6226D, it supports 2 Gigabit dual media ports(TP/GBIC) and 2 slots for removable GBIC module supporting 1000M GBIC fiber module •...
Page 17 • Supports 802.1X port security on a VLAN • Supports user management and only first login administrator can configure the device. The rest of users can only view the switch • SNMP access can be disabled and prevent from illegal SNMP access •...
Page 18: View Of Msm-6226
There are 24 TP Fast Ethernet ports and 2 slots for optional removable modules on the front panel of the switch. LED display area, locating on the front panel, contains a CPURUN, Power LED and 26 ports working status of the switch.
Page 19: User Interfaces On The Rear Panel
26 LED) 1-4-2. User Interfaces on the Rear Panel One RS-232 DB-9 interface is offered for configuration or management. And there is one AC power input socket for having the switch powered on or off. RS-232 DB-9 Connector Function Lit when CPU is on and good...
Page 20: Installation
At the beginning, please do first: ⇒ Wear a grounding device to avoid the damage from electrostatic discharge • • • • Installing Optional SFP/GBIC Fiber Transceivers to the MSM-6226 Managed Switch Note: If you have no modules, please skip this section.
Page 21 It means you do not have to tell from them, just plug it. ⇒ Use Cat. 5 grade RJ-45 TP cable to connect to a TP port of the switch and the other end is connected to a network-aware device such as a workstation or a server.
Page 22: Installing Chassis To A 19-Inch Wiring Closet Rail
Wear a grounding device for electrostatic discharge. ⇒ Screw the mounting accessory to the front side of the switch (See Fig. 2-2). ⇒ Place the Chassis into the 19-inch wiring closet rail and locate it at the proper ⇒...
Page 23: Switch Cascading In Topology
2-1-3-3. Switch Cascading in Topology • • • • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels & overall diameter) must follow the constraint of the IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which...
Page 24 If more than two switches are connected in the same network, select one switch as Level 1 switch and connect all other switches to it at Level 2. Server/Host is recommended to connect to the Level 1 switch.
Page 25 Case 2b: Port-based VLAN (See Fig.2-5). Fig. 2-5 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members. VLAN3 members could not access VLAN1, VLAN2 and VLAN4. 4.
Page 26: Configuring The Management Agent Of Msm-6226
RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch. You can touch them through the following procedures. Section 2-1-4-1: Configuring the Management Agent of MSM-6226 through the Serial RS-232 Port...
Page 27 Please refer to Fig. 2-7 CLI Management for details about ICPDAS Manufacture’s setting. They are default setting of IP address. You can first either configure your PC IP address or change IP address of the switch, next to change the IP address of default gateway and subnet mask.
Page 28: Configuring The Management Agent Of Msm-6226 Through The Ethernet Port
IP address or to know the IP address of the switch. Then, follow the procedures listed below. 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5 cable with RJ-45 connector.
Page 29: Ip Address Assignment
2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
Page 30 Network address Class C: IP address range between 192.0.0.0 and 223.255.255.255. Each class C network has a 24-bit network prefix followed 8-bit host address. There are 2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 –2) hosts per network.
Page 31 Network 10000000.00000001.00000010.1 0000000 In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched.
Page 32 Basically, it is a routing policy. The gateway setting is used for Trap Events Host only in the switch. For assigning an IP address to the switch, you just have to check what the IP address of the network will be connected with the switch. Use the same network address and append your host address to it.
Page 33: Typical Applications
2-2. Typical Applications The MSM-6226 implements 24 Fast Ethernet TP ports with auto MDIX and 2 Gigabit dual media ports with SFP/GBIC for removable module supported comprehensive fiber types of connection, including LC, BiDi LC for SFP and LC/SC, BiDi LC/SC for GBIC. For more details on the specification of the switch, please refer to Appendix A.
Page 34 Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection...
Page 35: Operation Of Web-Based Management
3. Operation of Web-based Management This chapter instructs you how to configure and manage the MSM-6226 through the web user interface it supports, to access and manage the 24 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP(or GBIC)Fiber management Ethernet switch.
Page 36 To optimize the display effect, we recommend you use Microsoft IE 6.0 above, Netscape V7.1 above or FireFox V1.00 above and have the resolution 1024x768. The switch supported neutral web browser interface. In Fig. 3-2, for example, left section is the whole function tree with web user interface and we will travel it through this chapter.
Page 37: Web Management Home Overview
• • • • The Information of Page Layout On the top side, it shows the front panel of the switch. In the front panel, the linked ports will display green; as to the ports, which are link off, they will be dark.
Page 38 In Fig. 3-3, it shows the basic information of the clicked port. With this, you’ll see the information about the port status, traffic status and bandwidth rating for egress and ingress respectively. On the left-top corner, there is a pull-down list for Auto Logout. For the sake of security, we provide auto-logout function to protect you from illegal user as you are leaving.
Page 39 Root System DHCP Relay Port SNMP Multicast VLAN GVRP MSTP 802.1X Alarm TFTP Server Security Diagnostics Reboot DHCP Snooping IP-MAC Binding Loop Detection DHCP Boot LLDP MAC Table Trunk TACACS+ Configuration Bandwidth TFTP Server Firmware Upgrade Logout Publication date: March., 2011 Revision A1...
Page 40: System Information
For easily managing and maintaining device, you may write down the contact person and phone here for getting help soon. You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is MSM-6226. System up time: Fig. 3-3.1 System information...
Page 41 The time accumulated since this switch is powered up. Its format is day, hour, minute, second. Current time: Show the system time of the switch. Its format: day of week, month, day, hours : minutes : seconds, year. For instance, Tue Apr 20 23:25:58 2004 BIOS version: The version of the BIOS in this switch.
Page 42: Ip Configuration
The switch supports both manual IP address setting and automatic IP address setting via DHCP server. When IP address is changed, you must reboot the switch to have the setting taken effect and use the new IP to browse for web management and CLI management.
Page 43 The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet. User can specify a DNS IP address for the switch. With this, the switch can translate a mnemonic name address into an IP address.
Page 44: Time Configuration
“Minute” and “Second” within the valid value range indicated in each item. If you input an invalid value, for example, 61 in minute, the switch will clamp the figure to NTP is a well-known protocol used to synchronize the clock of the switch system time over a network.
Page 45 Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply> button. Though it synchronizes the time automatically, NTP does not update the time periodically without user’s processing.
Page 46 Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12.
Page 47: Account Configuration
3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity. Guest-equivalent identity can modify his password only. Please note that you must confirm administrator/guest identity in the field of Authorization in advance before configuring the username and password.
Page 48: Management Security
3-1-5. Management Security Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
Page 49 VLAN VID is able to be accepted or denied by the switch, the IP range of the user could be accepted or denied by the switch, the port that the user is allowed or not allowed to connect with the switch, or the way of controlling and connecting to the switch via Http, Telnet or SNMP.
Page 50 The switch including “Any” and “Custom”. Default is “Any”. “Http”, “Telnet” and “SNMP” are three ways for the access and managing the switch in case that” Custom” had been chosen. Action: supports two kinds of options The switch including “Deny”...
Page 51: Virtual Stack
The device of the group will be shown as station address ( the last number of IP Address) + device name on the button (e.g. 196_ MSM-6226 ), otherwise it will show ” ---- “ if no corresponding device exists.
Page 52 It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option. Default is Master.
Page 53: Dhcp Snooping
Per Port Client Count Setup: The limitation per port client count setup. If the current client count was lower than the value which you set on switch then the link will be keep. The maximum is 512 and default is 128.
Page 54: Trust Group
The function which you can configure the Group as trusted or untrusted. You must to set the trust port1 and port2 on the Switch, Option 82 state with “ Disable”/ “Enable”, Action with “Replace”/ “Drop” /” Keep” , DHCP Server VLAN ID, DHCP Server IP address.
Page 55 The DHCP Server IP address. It allows the IP address with 0.0.0.0. Trust VID: The DHCP client belong the VLAN member ID which you set on the Switch. It can be different with server VID; Obey by the PVID on the Switch. Edit/ Create: It allows you to edit or create a DHCP snooping trust group rule on the switch.
Page 56: Lease List
To display the client’s IP address which got from the DHCP server. Port: To display the client belong the port on the switch. VID: To display the client belong the VLAN member ID on the switch. Lease: To display the client lease time state, includes Day.Hour:Min:Sec. Fig. 3-10.2 Publication date:March., 2011...
Page 57: Counter
To display the DHCP Snooping packet received per port detail counter information. . Parameter description: Port No: The port number on the switch. . Discovery: To display discovery of DHCP request packet received by the port on the switch .
Page 58: Dhcp Relay
Config Function description: The switch to enable clients to obtain IP addresses from a DHCP server on a remote subnet, you have to configure the DHCP Relay Agent on the subnet that contains the remote clients, so that it can relay DHCP broadcast messages to your DHCP server.
Page 59 To enable or disable the DHCP Relay function on the Switch, Default is “Disable”. DHCP Relay Lifetime: Use to set the default lifetime for which a prefix delegated by this DHCP local server is valid. This default is overridden by an interface-specific lifetime.
Page 60: Ip-Mac Binding
The primary purpose of IP-MAC binding is to restrict the access to a switch to a number of authorized users. Only the authorized client can access the Switch’s port by checking the pair of IP-MAC Addresses and port number with the pre-configured database.
Page 61 MAC: Six-byte MAC Address: xx-xx-xx-xx-xx-xx For example: 00-40-c7-00-00-01 Four-byte IP Address: xxx.xxx.xxx.xxx For example: 192.168.1.100 Port No: Port no.: 1-24 Add: Input MAC, IP, Port and VID, then click on <Add> to create a new entry into the IP MAC Binding table Edit: The existed entry also can be modified after pressing <Edit>...
Page 62: Port Configuration
Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds.
Page 63 Auto Nego.: Show the exchange mode of Ethernet MAC. There are two modes supported in the switch. They are auto-negotiation mode “Enabled” and forced mode “Disabled”. When in “Enabled” mode, this function will automatically negotiate by hardware itself and exchange each other the capability of speed and duplex mode with other site which is linked, and comes out the best communication way.
Page 64 In port 25 and port 26, if the media is 1000Mbps with TP media, it will show the combinations of 10/100M and Full/Half duplex, 1000Mbps and Full duplex only. If the media is 1000Mbps with fiber media, it will show only 1000M/Full duplex.
Page 65 Display the Manufacturer's OUI code which is assigned by IEEE. Vendor Name: Display the company name of the module Manufacturer. Vendor P/N: Display the product name of the naming by module Manufacturer. Vendor Rev (Revision): Display the module revision. Vendor SN (Serial Number): Show the serial number assigned by the Manufacturer.
Page 66: Port Configuration
All of them are described in detail below. Function name: Port Configuration Function description: It is used to set each port’s operation mode. The switch supports 3 parameters for each port. They are State, Speed/Duplex and Flow Control. Fig. 3-15 Parameter description: Publication date:March., 2011...
Page 67 State: Set the communication capability of the port is Enabled or Disabled. When enabled, traffic can be transmitted and received via this port. When disabled, the port is blocked and no traffic can be transferred through this port. Port State is configurable by the user. There are only two states “Enable”...
Page 68: Port Description
You can assign the friendly description per port to identity the Port purpose. Parameter description: Port: The port number on the Switch. Description: You can type the friendly description in the blank field. To set its port description, max 47 characters Fig.
Page 69: Simple Counter
3-5-4. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-13, the window can show all ports’ counter information at the same time.
Page 70: Detail Counter
3-5-5. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-14, the window can show only one port counter information at the same time.
Page 71 Rx Errors: Number of bad packets received. Rx Unicast Packets: Show the counting number of the received unicast packet. Rx Broadcast Packets: Show the counting number of the received broadcast packet. Rx Multicast Packets: Show the counting number of the received multicast packet. Rx Pause Packets: Show the counting number of the received pause packet.
Page 72 Number of 512 ~ 1023-byte frames in good and bad packets received. Packets 1024- 1522 Octets: Number of 1024-1522-byte frames in good and bad packets received. Tx Packets: The counting number of the packet transmitted. TX Octets: Total transmitted bytes. Tx Unicast Packets: Show the counting number of the transmitted unicast packet.
Page 73: Loop Detection
3-6. Loop Detection The loop detection is used to detect the presence of traffic. When switch receives packet’s(looping detection frame) MAC address the same as oneself from port, show Loop detection happens. The port will be locked when it received the looping detection frames.
Page 74: Snmp Configuration
Basically, it is passive except issuing the trap information. The switch supports a switch to turn on or off the SNMP agent. If you set the field SNMP “Enable”, SNMP agent will be started up. All supported MIB OIDs, including RMON MIB, can be accessed via SNMP manager.
Page 75 Default port number :162 Trap: In the switch, there are 6 trap hosts supported. Each of them has its own community name and IP address; is user-definable. To set up a trap host means to create a trap manager by assigning an IP address to host the trap message.
Page 76: Dhcp Boot
At this moment, a bunch of switch or other network device on the LAN will try its best to find the server to get the services or try to set up the predefined links, they will issue many broadcast packets in the network.
Page 77: Multicast
IP multicast packets are running over the network. This is because a switch that does not support IGMP or IGMP Snooping can not tell the multicast packet from the broadcast packet, so it can only treat them all as the broadcast packet.
Page 78: Igmp Vlan
The switch supports to enable IGMP snooping function Enable: Set “Enable” mode to enable IGMP Snooping function. Default: un-enable. Unregistered Multicast Flooding : The switch supports to enable Unregistered Multicast Flooding function Enable: Set “Enable” mode to enable IGMP Snooping function. Default: Enable General Query Interval :...
Page 79 IGMP VLAN Function description: Specify the a static connection to a multicast router for the VLAN. Parameter description: VID: To Set specify the IGMP snooping VLAN ID for each multicast group. Fig. 3-22 Publication date: March., 2011 Revision A1...
Page 80: Group Allow
Parameter description: IP Range: The switch supports two kinds of options for managed valid IP range, including “Any” and “Custom”. Default is “Any”. In case that” Custom” had been chosen, you can assigned effective IP range. The valid range is 224.0.0.0~239.255.255.255.
Page 81: Mvr Setting
3-9-4. MVR Setting Function name: MVR Setting Function description: Multicast VLAN Registration (MVR) routes packets received in a multicast source VLAN to one or more receive VLANs. Clients are in the receive VLANs and the multicast server is in the source VLAN. Multicast routing has to be disabled when MVR is enabled.
Page 82: Multicast Status
Multicast Status Function description: The Multicast Status function allows to display the switch received multicast traffic status. If the switch doesn’t receive any multicast traffic then it will display the “No multicast entry !” Parameter description: To display current built-up multicast group entry index.
Page 83: Radius Igmp
3-9-6. RADIUS IGMP Function name: RADIUS IGMP Function description: The RADIUS IGMP function allows to some multicast applications, such as IPTV and Internet Radio, may be of minimal interest to law enforcement agencies, other multicast traffic may contain information important to an investigation.
Page 84 The secret key between authentication server and authenticator. It is a string with the length 1 – 31 characters. The character string may contain upper case, lower case and 0-9. It is character sense. It is not allowed for putting a blank between any two characters. Default: Radius To display current built-up multicast VLAN ID .
Page 85: Lldp
3-10. LLDP The switch supports the LLDP. For current information on your switch model, The Link Layer Discovery Protocol (LLDP) provides a standards-based method for enabling switches to advertise themselves to adjacent devices and to learn about adjacent LLDP devices.
Page 86 reinitializing LLDP transmission. (Default: 2 secs) Notification Interval: The minimum interval for LLDP data change Notification fpr the same neighbor. Refer to IEEE 802.1AB-2005 or later for more information. (Default: 5 secs) Mode To enable or disable the LLDP mode per port. There are four type includes Disable, Tx_Rx, Tx only and Rx only Port Descr : To evoke the outbound LLDP advertisements, includes an...
Page 87: Lldp Entry
3-10-2 . LLDP Entry Function name: LLDP Entry Function description: The LLDP Entry function allows a switch to display per port which build the LLDP available entry. This information can be useful in tracking LLDP packets back to a physical port. Parameter description: Local port: To display the switch local port.
Page 88 that are supported. Also includes information on whether the capabilities are enabled. Management Address: To display include a specific IP address in the outbound LLDP advertisements for specific ports. Auto - refresh: Refresh the authenticator counters in the web UI automatically Refresh: Click on the <Refresh>...
Page 89: Lldp Statistics
Total Neighbors Entries Dropped: The total neighbors entries dropped be received. Total Neighbors Entries Aged Out: The total neighbors entries aged out be received. Local port: Show the local port on the switch. Fig. 3-18-3 LLDP statistics Publication date: Sep, 2009 Revision A8...
Page 90 Tx Frames: The counting number of the frames transmitted. Rx Frames: The counting number of the frames transmitted. Frames Discarded: Show the number of frame discarded. TLVs Discarded: Show the number of TLVs discarded. TLVs Unrecognized: Show the number of TLVs unrecognized. Age Outs: Show the number of Age Outs.
Page 91: Vlan
3-11. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
Page 92 Note: If Symmetric is enabled and port 1, for example, receives an untagged packet, the switch will apply the PVID of port 1 to tag this packet, the packet then will be forwarded. But if the PVID of port 1 is not 100, the packet will be dropped.
Page 93 2 members are formed. 25&26: Except Port 25 and Port 26, each port of the switch cannot transmit packets with each other. Each port groups a VLAN with Port 25 and Port 26, thus, total 22 groups consisting of 3 members are formed.
Page 94: Tag-Based Group
3-11-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups. You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name and VLAN ID after pressing <Add>...
Page 95 GARP protocol exchanges. The default setting is Active. NotInService: It is NotInService. In this mode, the switch does not send or reply any GARP messages. It just listens messages and reacts for the received GVRP BPDU. Delete Group: Just press the <Delete>...
Page 96: Pvid
Tag-based VLAN with VID x. For example, if port x receives an untagged packet, the switch will apply the PVID (assume as VID y) of port x to tag this packet, the packet then will be forwarded as the tagged packet with VID y.
Page 97 Drop Untag: Drop untagged frame. You can configure a given port to accept all frames (Tagged and Untagged) or just receive tagged frame. If the former is the case, then the packets with tagged or untagged will be processed. If the later is the case, only the packets carrying VLAN tag will be processed, the rest packets will be discarded.
Page 98: Port-Based Group
3-11-4. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name.
Page 99 Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect. Delete Group: Just press the <Delete> button to remove the selected group entry from the Port-based group table.
Page 100: Management Vlan
To assign a specific VLAN for management purpose. Parameter description: State: It works when the tag-based mode is chosen. When this function is enabled, only the tagged packets with this VID can manage the switch. VID: Valid range 1~4094. Fig. 3-33...
Page 101: Mac Table
3-12. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static and MAC Alias, which cannot be categorized to some function type. They are described below. Function name: MAC Table Information Function Description: Display the static or dynamic learning MAC entry and the state for the selected port.
Page 102 Search: Find the entry that meets your setup. Previous Page: Move to the previous page. Next Page: Move to the next page. Alias: The Alias of the searched entry. MAC Address: The MAC address of the searched entry. Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists.
Page 103 As “static” is chosen, assign a MAC address to a specific port, all of the switch’s traffics sent to this MAC address will be forwarded to this port. As “static with destination drop” is chosen, the packet will be dropped if its DA is equal to the value you set up.
Page 104 Static with Source Drop: While the SA of the incoming packets meets the value you set up, these packets will be dropped. Port : Select the port No. you would like to do setup in the switch. It is 1 ~26. Fig. 3-36...
Page 105 Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report. At the initial time, it shows all pairs of the existed alias name and MAC address.
Page 106 Function name: Port Security Function description: Port Security function is used to let you assign the port authenticate with the MAC address for security purpose. Parameter description: Port: Select the port you would like to inquire. Function name: Port static MAC Function description: Port Static MAC function is used to let you assign per port authenticate with the static MAC address for security purpose.
Page 107 Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 40 - C7 - D6 – 00 - 02 VID: VLAN Group ID that MAC Entry for the port member exists. Fig.
Page 108: Gvrp Configuration
3-13. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application. It makes use of GARP Information Declaration (GID) to maintain the ports associated with their attribute database and GARP Information Propagation (GIP) to communicate among switches and end stations.
Page 109 A time period for announcement that all registered device is going to be de-registered. If someone still issues a new join, then a registration will be kept in the switch. Valid range: 1000-5000 unit time, Default: 1000 unit time. Default Applicant Mode: The mode here means the type of participant.
Page 110 Enabled: In this mode, the switch does not create dynamic VLAN when this port received GVRP PDU. Except received dynamic VLAN message of the GVRP PDU is an existed static VLAN in the switch, this port will be added into the static VLAN members dynamically.
Page 111 JoinIn Message Packets: Number of GARP BPDU with Join In message is received by the GARP application. LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application.
Page 112 Parameter description: Current Dynamic Group Number: The number of GVRP group that are created currently. VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID. Valid range is 1 ~ 4094. Member Port: Those are the members belonging to the same dynamic VLAN group. Edit Administrative Control: When you create GVRP group, you can use Administrative Control function to change Applicant Mode and Registrar Mode of GVRP group...
Page 113: Stp Configuration
Show switch’s bridge ID which stands for the MAC address of this switch. Bridge Priority: Show this switch’s current bridge priority setting. Default is 32768. Designated Root: Show root bridge ID of this network segment. If this switch is a root Fig. 3-41 Publication date: March., 2011 Revision A1...
Page 114 “Designated Root” will show this switch’s bridge ID. Designated Priority: Show the current root bridge priority. Root Port: Show port number connected to root bridge with the lowest path cost. Root Path Cost: Show the path cost between the root port and the designated port of the root bridge.
Page 115: Stp Configuration
If you want to have the MSM-6226 as root bridge, you can set this value lower than that of bridge in the LAN. The valid value is 0 ~ 61440. The default is 32768.
Page 116 Default is 2 seconds. Max. Age: When the MSM-6226 is the root bridge, the whole LAN will apply this figure set by this switch as their maximum age time. When a bridge received a BPDU originated from the root bridge and if the message age conveyed in the BPDU exceeds the Max.
Page 117: Stp Port Configuration
3-14-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item. User also can set “Path Cost” and “Priority” of each port by filling in the desired value and set “Admin Edge Port”...
Page 118 Configured Path Cost: The range is 0 – 200,000,000. In the switch, if path cost is set to be zero, the STP will get the recommended value resulted from auto-negotiation of the link accordingly and display this value in the field of Path Cost Status.
Page 119 this port. Default: Auto M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port. Click <M Check>...
Page 120: Mstp Configuration
3-15. MSTP Configuration The implementation of MSTP is according to IEEE 802.1Q 2005 Clause 13 – Multiple Spanning Tree Protocol. MSTP allows frames assigned to different VLANs to follow separate paths, each based on an independent Multiple Spanning Tree Instance (MSTI), within Multiple Spanning Tree (MST) Regions composed of LANs and or MST Bridges.
Page 121: Region Config
3-15-2 Region Config Function name: MSTP Region Config Function description: To configure the basic identification of a MSTP bridge. Bridges participating in a common MST region must have the same Region Name and Revision Level. Parameter description: Region Name: 0-32 characters.(A variable length text string encoded within a fixed field of 32 octets , conforming to RFC 2271’s definition of SnmpAdminString.) Revision Level: 0-65535...
Page 122: Instance View
3-15-3 Instance View Function name: MSTP Instance Config Function description: Providing an MST instance table which include information(vlan membership of a MSTI ) of all spanning instances provisioned in the particular MST region which the bridge belongs to. Through this table, additional MSTP configuration data can be applied and MSTP status can be retrieved.
Page 123 Del MSTI: To delete an MSTI. Del All MSTI: Deleting all provisioned MSTIs at a time. Instance Configuration: To provision spanning tree performance parameters per instance. Fig. 3-43.4 Port Config: To provision spanning tree performance parameters per instance per port. Fig.
Page 124 Parameter description: Priority: The priority parameter used in the CIST(Common and Internal Spanning Tree) connection. 0 / 4096 / 8192 / 12288 / 16384 / 20480 / 24576 / 28672 / 32768 / 36864 / 40960 / 45056 / 49152 / 53248 / 57344 / 61440 MAX.
Page 125 Parameter description: Port: 1-24 Path Cost: 1 – 200,000,000 The same definition as in the RSTP specification. But in MSTP, this parameter can be respectively applied to ports of CIST and ports of any MSTI. Priority: 0 / 16 / 32 / 48 / 64 / 80 / 96 / 112 / 128 / 144 / 160 / 176 / 192 / 208 / 224 / 240 The same definition as in the RSTP specification.
Page 126 Restricted Role: Yes / No If “Yes” causes the Port not to be selected as Root Port for the CIST or any MSTI, even it has the best spanning tree priority vector. Such a Port will be selected as an Alternate Port after the Root Port has been selected.
Page 127 Parameter description: MSTP State: MSTP protocol is Enable or Disable. Force Version: It shows the current spanning tree protocol version configured. Bridge Max Age: It shows the Max Age setting of the bridge itself. Bridge Forward Delay: It shows the Forward Delay setting of the bridge itself. Bridge Max Hops: It shows the Max Hops setting of the bridge itself.
Page 128 CIST ROOT PRIORITY: Spanning tree priority value of the CIST root bridge CIST ROOT MAC: Mac Address of the CIST root bridge CIST EXTERNAL ROOT PATH COST: Root path cost value from the point of view of the bridge’s MST region. CIST ROOT PORT ID: The port ID of the bridge’s root port.
Page 129 Parameter description: Port No: 1-24 Status: The forwarding status.Same definition as of the RSTP specification Possible values are “FORWARDING” , “LEARNING” , “DISCARDING” Status: The role that a port plays in the spanning tree topology. Possible values are “dsbl”(disable port) , ”alt”(alternate port) , “bkup”(backup port) , “ROOT”(root port) , “DSGN”(designated port) , “MSTR”(master port).
Page 130: Trunking Configuration
As to system restrictions about the port aggregation function on the switch, In the management point of view, the switch supports maximum 3 trunk groups for LACP and additional 3 trunk groups for Static Trunk. But in the system capability view, only 3 “real trunked”...
Page 131 Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports. None: A port does not want to aggregate with any other port should choose this default setting.
Page 132 LACP: A port use LACP as its trunk method to get aggregated with other ports also using LACP. Static: A port use Static Trunk as its trunk method to get aggregated with other ports also using Static Trunk. Group: Ports choosing the same trunking method other than “None” must be assigned a unique Group number (i.e.
Page 133 Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 26) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
Page 134 LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view. System Priority: Show the System Priority part of a system ID.
Page 135 Default: 32768. LACP Hash Method: DA+SA, DA and SA are three Hash methods offered for the Link Aggregation of the switch. Packets will decide the path to transmit according to the mode of Hash you choose. Default: DA and SA Fig.3-47...
Page 136: Configuration
3-17. 802.1x Configuration 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication. If a user wishes to touch the network through a port under 802.1x control, he (she) must firstly input his (her) account name for authentication and waits for gaining authorization before sending or receiving any packets from a 802.1x-enabled port.
Page 137 PC A, then, is allowed to access B and C via the switch. If there are two switches directly connected together instead of single one, for the link connecting two switches, it may have to act two port roles at the end of the link: authenticator and supplicant, because the traffic is bi-directional.
Page 138 EAPOL and the left side is EAP. At the initial stage, the supplicant A is unauthenticated and a port on switch acting as an authenticator is in unauthorized state. So the access is blocked in this stage.
Page 139 If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant. At this time, the supplicant is authorized and the port connected to the supplicant and under 802.1x control is in the authorized state.
Page 140 Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
Page 141 Function name: 802.1x State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1x port security application. Parameter description: Radius Server: RADIUS server IP address for authentication. Default: 192.168.1.1 Port Number: The port number to communicate with RADIUS server for the authentication service.
Page 142 Function name: 802.1x Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports Normal and Advanced 802.1X mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1x operation mode. 802.1x Mode: 802.1x operation mode.
Page 143 Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X authenticator on it.
Page 144 Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1x port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1x parameters which are Port control, reAuthMax, txPeriod, Quiet Period, reAuthEnabled, reAuthPeriod, max.
Page 145 Auto: The controlled port is set to be in authorized state or unauthorized state depends on the result of the authentication exchange between the authentication server and the supplicant. Default: Auto reAuthMax(1-10): The number of authentication attempt that is permitted before the port becomes unauthorized.
Page 146: Alarm Configuration
Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 21 different trap events to users for switch management. The trap information can be sent out in tow ways, including email and trap.
Page 147 Email Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email. It depends on your settings. An email address has to be set in the web page of alarm configuration (See Fig. 3-49). Then, user can read the trap information from the email.
Page 148: Configuration
One is the function of “Restore Default Configuration included default IP address”, the IP address will restore to default “192.168.1.1” as you use it. The other is the function of “Restore Default Configuration without changing current IP...
Page 149: Save/Restore
3-19-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory. Fig.
Page 150 Restore Default Configuration (includes default IP address) Function description: Restore Default Configuration function can retrieve Manufacture’s setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1. Function name: Restore Default Configuration (excludes current IP address) Function description: Restore Default Configuration function can retrieve Manufacture’s setting to...
Page 151 Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration. When completing to restore the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system. Fig.
Page 152: Config File
3-19-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description: Export File Path: Export Start: Export Save As Start’s config file stored in the flash. Export User-Conf: Export Save As User’s config file stored in the flash.
Page 153: Security
3-20. Security Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
Page 154 Port 1~26. In this group, all of these member ports cannot forward packets with each other. Thus, the switch will not be capable of forwarding any packets in case its all ports become the members of the Isolated group.
Page 155: Bandwidth
3-21. Bandwidth Function name: Ingress Bandwidth Setting Function description: Ingress Bandwidth Setting function is used to set up the limit of Ingress bandwidth for each port. Parameter description: Port No.: Choose the port that you would like this function to work on it. Valid range of the port is 1~26.
Page 156 Function name: Egress Bandwidth Setting Function description: Egress Bandwidth Setting function is used to set up the limit of Egress bandwidth for each port. Parameter description: Port No.: Choose the port that you would like this function to work on it. Valid range of the port is 1~26.
Page 157 Function name: Storm Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Parameter description: Storm Type: Disable: Disable the function of the bandwidth storm control. BC (Broadcast Storm Control): Enable the function of bandwidth storm control for broadcast packets.
Page 158 UC, MC (Unknown Unicast, Multicast Storm Control): Enable the function of bandwidth storm control for Unknown Unicast and multicast Storm packets in transmission. BC, UC, MC (Broadcast, Unknown Unicast, Multicast Storm Control): Enable the function of bandwidth storm control for all packets in transmission.
Page 159: Qos(Quality Of Service Configuration)
Priority, IP TOS Priority, and DiffServ DSCP Priority. Port Based Priority has a special name called VIP Port in the switch. Any packets enter VIP Port will have highest transmitting priority. MAC Priority act on the destination address of MAC in packets.
Page 160 and DSCP. ** VIP/DSCP > TOS > 802.1p (Final result) Function name: QoS Global Setting Function description: When you want to use QoS function, please enable QoS Mode in advance. Then you can use MAC Priority, 802.1p Priority, IP TOS Priority, DiffServ DSCP Priority, or VIP Port functions and take effect.
Page 161 Function description: This function will affect the priority of VLAN tag. Based on priority of VLAN tag, it can arrange 0~8 priorities, priorities can map to 4 queues of the switch (queue 0~3) and possess different bandwidth distribution according to your weight setting.
Page 162 DSCP can form total 64 (0~63) kinds of Traffic Class based on the arrangement of 6-bit field in DSCP of the IP packet. In the switch, user is allowed to set up these 64 kinds of Class that belong to any of queue 0~3.
Page 163: Acl
3-23. ACL The MSM-6226 switch access control list (ACL) is probably the most commonly used object in the IOS. It is used for packet filtering but also for selecting types of traffic to be analyzed, forwarded, or influenced in some way.
Page 164 Parameter description: To add new access control rule on switch. You must configure the parameters what described later when you add the new access control rule. Edit/ Show: To modify or monitor the access control configuration rule on switch. Delete: To delete existed access control rule on switch.
Page 165 VLAN Tag: To input VLAN Type with 2 type include “any” and “ Tag-based Vlan” If you choice Tag-based Vlan type then you must input Tag VID in field and droll the Tag Priority bar to choice the tag priority from 0 to 7. Ethernet Type: Fig.
Page 166 To droll “Ethernet Type” bar and option “any”, “ IPv4”, “ ARP” and “ Specific” for ACL requirement. Any: It is including all frame type IPv4: It is including all IPv4 protocol frame type ARP: It is including all ARP protocol frame type Specific: It is specific frame type IPv4: To set the IPv4 packet filter function with ACLs, the parameters...
Page 167 IPv4 TOS : To droll the bar and you can elect “ Any”, and “ Specific”. If you click “ Specific” then you need to set the TOS Value to filter. Fig. 3-79 Fig. 3-80 TTL Range : To droll the bar and you can elect “ TTL=0”, “TTL=1”, “TTL=2-254”...
Page 168 IPv4 DA/ SA : To droll the bar and you can elect “ Any”, “HOST” and “Network”. L4 Destination port : To droll the bar and you can elect “ Any” and “Specific”. If you click “specific” then you need to set destination port value.
Page 169 L4 Source port : To droll the bar and you can elect “ Any” and “Specific”. If you click “specific” then you need to set source port value. Action: To set network packet filter includes “In-band” , “Out-band” and “Modify Packet for In/Out-Band”.
Page 170 Fig. 3-87 Fig. 3-88 Fig. 3-89 Fig. 3-90 Modify Packet for In/ Out-Band : Modify Packet -802.1P:...
Page 171 To droll down the bar to elect “Any” and “Specific”. If you click the “ Specific” then you need to set 802.1p value in the field. default is 0 Modify Packet -QOS: To droll down the bar to elect “Any” and “Specific”. If you click the “...
Page 172: Diagnostics
3- 24. Diagnostics Five functions, including Diagnostics, Loopback Test, Ping Test, Auto Ping and Cable are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections. Diagnostics Function name: Diag Function description: Diagnostics function provides a set of basic system diagnosis.
Page 173 The test signal only wraps around in the switch box. As to the latter test function, it will send the test signal to its link partner. If you do not have them connected to active network devices, i.e.
Page 174 Ping Test function to let you know that if the target device is available or not. You can simply fill in a known IP address and then click <Ping> button. After a few seconds later, the switch will report you the pinged device is alive or dead in the field of Ping Result.
Page 175 Auto Ping function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides auto Ping Test function to let you know that if the target device is available or not.
Page 176 Cable function is a tool for detecting if the cable per port status is OK or not. report messages. The switch provides cable Test function to let you know that if the cable connect to a port is OK or not.
Page 177: Tftp Server
3- 25. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply> button to have the setting taken effect. Fig.
Page 178: Log
This function shows the log data. The switch provides system log data for users. There are 16 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
Page 179: Firmware Upgrade
3-27. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet. Function name: Firmware Upgrade Function description: The switch supports TFTP upgrade tool for upgrading software.
Page 180: Reboot
Function name: Reboot Function description: Reboot the switch. Reboot takes the same effect as the RESET button on the front panel of the switch. It will take around thirty (30) seconds to complete the system boot. Parameter description: Save and Reboot: Save the current settings as start configuration before rebooting the switch.
Page 181: Logout
Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission. If you do not logout and exit the browser, the switch will automatically have you logout. Besides this manually logout and implicit logout, you can pull down the <Auto Logout>...
Page 182: Operation Of Cli Management
-- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch. Refer to the Appendix B for null modem cable configuration. -- Attach the DB-9 female connector to the male DB-9 serial port connector on the Management board.
Page 183 Fig. 4-1 Publication date: March., 2011 Revision A1...
Page 184: Commands Of Cli
4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands. Global commands can be used wherever the mode you are.
Page 185: Global Commands Of Cli
4-2-1. Global Commands of CLI Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode. Argument: None.
Page 186 help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
Page 187 history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before. The CLI supports up to 256 records. If no argument is typed, the CLI would list total records up to 256.
Page 188: Restore Default
Argument: None. Possible value: None. Example: FEL2P-SW26# logout Managed Switch - FEL2P-SW26 Login: restore default Syntax: restore default Description: When you use this function in CLI, the system will show you the information “Do you want to restore the default IP address?(y/n)”. If you choose Y or y, the IP address will restore to default “192.168.1.1”.
Page 189: Restore User
restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately; others would back to the CLI system. After restoring user-defined configuration, all the changes in the startup configuration would be lost.
Page 190: Save User
save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration. Argument: None. Possible value: None. Example: FEL2P-SW26 # save user Saving user...
Page 191: Local Commands Of Cli
4-2-2. Local Commands of CLI 802.1x set quiet-period Syntax: set quiet-period <port-range> <sec> Description: A timer used by the Authenticator state machine to define periods of time during when it will not attempt to acquire a Supplicant. Argument: <port range> : syntax 1,5-7, available from 1 to 26 <sec>...
Page 192 <port range> : 1 to 26 <max> : 1-10, default is 2 Example: FEL2P-SW26 (802.1x)# set reAuthMax 2 2 set reAuthPeriod Syntax: set reAuthPeriod <port-range> <sec> Description: A constant that defines a nonzero number of seconds between periodic reauthentication of the supplicant. Argument: <port range>...
Page 193 <sec> : timer, range 1-65535 Possible value: <port range> : 1 to 26 <sec> : 1-65535, default is 30 Example: MSM-6226 (802.1x)# set suppTimeout 2 30 set txPeriod Syntax: set txPeriod <port-range> <sec> Description: A timer used by the Authenticator PAE state machine to determine when an EAPOL PDU is to be transmitted.
Page 194: Show Mode
Argument: <port range> : syntax 1,5-7, available from 1 to 26 <sec> : timer, range 1-65535 Possible value: <port range> : 1 to 26 <sec> : 1-65535, default is 30 Example: FEL2P-SW26 (802.1x)# set txPeriod 2 30 show mode Syntax: show mode Description: To display the mode of each port.
Page 195 port 1) port control : Auto reAuthMax txPeriod : 30 Quiet Period : 60 reAuthEnabled : ON reAuthPeriod : 3600 max. Request : 2 suppTimeout : 30 serverTimeout : 30 show security Syntax: show security Description: To display the authentication Argument: None.
Page 196 show state Syntax: show state Description: To display the Radius server configuration. Argument: None. Possible value: None. Example: FEL2P-SW26 (802.1x)# show state Radius Server: 192.168.1.115 Port Number : 1812 Secret Key : WinRadius account Syntax: add <name> Description: To create a new guest user. When you create a new guest user, you must type in password and confirm password.
Page 197 Syntax: modify <name> Description: To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: FEL2P-SW26(account)# modify aaaaa username/password: the length is from 5 to 15. Current username (aaaaa):bbbbb New password: Confirm password: Username changed successfully.
Page 198 alarm <<email>> del mail-address Syntax: del mail-address <#> Description: To remove the e-mail address. Argument: <#>: email address number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: FEL2P-SW26(alarm-email)# del mail-address 2 del server-user Syntax: del server-user Description: To remove the server, user account and password.
Page 199: Set User
set server Syntax: set server <ip> Description: To set up the IP address of the email server. Argument: <ip>:email server ip address or domain name Possible value: None. Example: FEL2P-SW26(alarm-email)# set server 192.168.1.6 set user Syntax: set user <username> Description: To set up the account of the email server.
Page 200 <<events>> del all Syntax: del all <range> Description: To disable email and trap of events. Argument: <range>:del the range of email and trap of events, syntax 1,5-7, available from 1 to Possible value: <range>: 1~25 Example: FEL2P-SW26(alarm-events)# del all 1-3 del email Syntax: del email <range>...
Page 201: Set Trap
set all Syntax: set all <range> Description: To enable email and trap of events. Argument: <range>:set the range of email and trap of events, syntax 1,5-7, available from 1 to Possible value: <range>: 1~25 Example: FEL2P-SW26(alarm-events)# set all 1-3 set email Syntax: set email <range>...
Page 202 Possible value: None. Example: FEL2P-SW26(alarm-events)# show Events ----------------------------------------- 1 Cold Start 2 Warm Start 3 Link Down 4 Link Up 5 Authentication Failure 6 User Login 7 User Logout 8 STP Topology Changed 9 STP Disabled 10 STP Enabled 11 LACP Disabled 12 LACP Enabled 13 LACP Member Added 14 LACP Port Failure...
Page 203 Email Address 3: Email Address 4: Email Address 5: Email Address 6: FEL2P-SW26 (alarm)# show events 1 Cold Start 4 Link Up 5 Authentication Failure 6 User Login 7 User Logout 8 STP Topology Changed 9 STP Disabled 10 STP Enabled 11 LACP Disabled 12 LACP Enabled 13 LACP Member Added...
Page 204: Set Egress
autologout autologout Syntax: autologout <time> Description: To set up the timer of autologout. Argument: <time>: range 1 to 3600 seconds, 0 for autologout off, current setting is 180 seconds. Possible value: < time >: 0,1-3600 Example: FEL2P-SW26 # autologout 3600 Set autologout time to 3600 seconds bandwidth set egress...
Page 205 102400 102400 102400 102400 102400 102400 102400 102400 102400 102400 102400 102400 102400 102400 1024000 1024000 set ingress-rate Syntax: set ingress <range> <rate> Description: To set up the ingress-rate of the ports. Argument: <range>:syntax 1,5-7, available from 1 to 26 <rate>: 64-1024000(Kb).
Page 206 102400 102400 102400 102400 102400 102400 19520 19520 19520 19520 102400 102400 102400 102400 102400 102400 1024000 1024000 set storm Syntax: set storm <range> <type> < rate> Description: To set up the storm control of the ports. Argument: <range>:syntax: 1,5-7, available from 1 to 26 <type>: 0 - Disable 1 - BC...
Page 207 102400 102400 102400 102400 102400 102400 102400 102400 102400 19520 19520 19520 19520 102400 102400 102400 102400 102400 102400 1024000 1024000 FEL2P-SW26(bandwidth)# show Syntax: show Description: To display all current settings of the bandwidth. Argument: None Possible value: None Example: FEL2P-SW26(bandwidth)# show FEL2P-SW26(bandwidth)# show Port...
Page 208: Config File
102400 102400 102400 19520 19520 19520 19520 102400 102400 102400 102400 102400 102400 1024000 1024000 config-file export start Syntax: export start Description: To run the export start function. Argument: None. Possible value: None. Example: FEL2P-SW26 (config-file)# export start Export successful. export user-conf Syntax: export user-conf...
Page 209 Syntax: import start Description: To run the import start function. Argument: None. Possible value: None. Example: FEL2P-SW26 (config-file)# import start Import successful. import user-conf Syntax: import user-conf Description: To run the import user-conf function. Argument: None. Possible value: None. Example: FEL2P-SW26 (config-file)# import user-conf Import successful.
Page 210 set import-path Syntax: set import-path <filepath> Description: To set up the filepath and filename that user would like to import. Argument: <filepath>:filepath and filename Possible value: <filepath>:filepath and filename Example: FEL2P-SW26 (config-file)# set import-path log/21511.txt show Syntax: show Description: To display the information of the config file. Argument: None.
Page 211 FEL2P-SW26(dhcp-boot)# show DHCP Boot : Enable Second : 30 FEL2P-SW26(dhcp-boot)# diag <<autoping>> disable Syntax: disable Description: Disable auto ping function on switch Argument: None. Possible value: None. Example: FEL2P-SW26 (diag-autoping)# disable enable Syntax: enable Description: Enable auto ping function on switch Argument: None.
Page 212 Syntax: set <IP address> <interval> <times> Description: To set auto ping function on switch Argument: <IP address> : IPv4 format <interval>: 1~300 (sec) <times>: 3~100 Possible value: <IP address> : IPv4 format <interval>: 1~300 (sec) <times>: 3~100 Example: FEL2P-SW26(diag-autoping)# set 192.168.2.22 100 3...
Page 213 Syntax: cable <port> Description: To enable cable diagnostic function on switch Argument: <port> : syntax: 1,5-7, available from 1 to 26 Possible value: <port> : 1 to 26. Example: FEL2P-SW26(diag)# cable 1-5 port 1: cable Ok (2 pairs, length +/- 10 meters)
Page 214 FEL2P-SW26(diag)# ping Syntax: ping <ip> Description: To confirm that whether the remote end-station or switch itself is alive or not. Argument: <ip> : IP address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. tw.yahoo.com Example: FEL2P-SW26(diag)# ping 192.168.2.22...
Page 215 upgrade Syntax: upgrade Description: To run the software upgrade function. Argument: None. Possible value: None. Example: FEL2P-SW26(firmware)# upgrade Upgrading firmware ... gvrp disable Syntax: disable Description: To disable the gvrp function Argument: None. Possible value: None. Example: FEL2P-SW26 (gvrp)# disable enable Syntax: enable...
Page 216 Description: To enter any of gvrp group for changing gvrp group setting. You can change the applicant or registrar mode of existing gvrp group per port. Argument: <group number>: enter which gvrp group you had created, using value is vid. Available range: 1 to 4094 Possible value: <group number>: 1~4094...
Page 217 Non-Participant Fixed Normal Fixed Normal Fixed Normal Fixed Normal Fixed Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal set applicant Syntax: set applicant <range> <normal|non-participant> Description: To set default applicant mode for each port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 26 <normal>: set applicant as normal mode <non-participant>: set applicant as non-participant mode Possible value:...
Page 218: Set Timer
set restricted <range> <enable | disable> Description: To set the restricted mode for each port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 26 <enable>: set restricted as enabled <disable>: set restricted as disabled Possible value: <range>: 1 to 26 <enable | disable>: enable or disable Example: FEL2P-SW26 (gvrp)# set restricted 1-10 enable...
Page 219: Show Config
FEL2P-SW26 (gvrp)# set timer 2-8 25 80 2000 show config Syntax: show config Description: To display the gvrp configuration. Argument: None. Possible value: None. Example: FEL2P-SW26(gvrp)# show config GVRP state: Disable Port Join Time Leave Time LeaveAll Time Applicant ---- --------- ---------- ------------- --------------- --------- ---------- show counter Syntax: show counter <port>...
Page 220: Show Group
Current Dynamic Group Number: 0 VID Member Port ---- -------------------------------------------------- hostname hostname Syntax: hostname <name> Description: To set up the hostname of the switch. Argument: <name>: hostname, max. 40 characters. Possible value: <name>: hostname, max. 40 characters. Example: FEL2P-SW26 # hostname Company Company#...
Page 221 Port Member : 10,11,12,13,14,15 FEL2P-SW26(multicast)# add igmp-vlan Syntax: add igmp-vlan <vid> Description: To add igmp vlan function on switch. Argument: <vid>: from 1 to 4094 value. Possible value: <vid>: from 1 to 4094 value. Example: FEL2P-SW26(multicast)# add igmp-vlan 3 FEL2P-SW26(multicast)# show igmp-vlan...
Page 222 FEL2P-SW26(multicast)# show group-filtering 2 None entry exist. FEL2P-SW26(multicast)# delete igmp-vlan Syntax: delete igmp-vlan <vid> Description: To delete igmp-vlan function on switch. Argument: <vid>: from 1 to 4094 value. Possible value: <vid>: from 1 to 4094 value. Example: FEL2P-SW26(multicast)# delete igmp-vlan 2...
Page 223 End Address : 226.255.255.255 Port Member : 10,11 set unregfld-enable Syntax: set unregfld-enable <state> Description: To set unregister multicast flooding state function on switch. Argument: <state>: 0(disable), 1(enable) Possible value: <state>: 0(disable), 1(enable) Example: FEL2P-SW26(multicast)# set unregfld-enable 1 FEL2P-SW26(multicast)# show igmp-setting...
Page 224 Syntax: set gnlqry-interval <sec> Description: To set general query interval function on switch. Argument: <sec>: from 1 to 2000 value. Possible value: <sec>: 1 to 2000 . Example: FEL2P-SW26(multicast)# set gnlqry-interval 20 set gnlqry-response Syntax: set gnlqry-response <sec>...
Page 225 set group-limit Syntax: set group-limit <port> <limit> Description: To set multicast group limit Argument: <port> syntax: 1,5-7, from 1 to 26 value. <limit>: from 0 to 256 value Possible value: <port>: 1 to 26. <limit>: 0 to 256. Example: FEL2P-SW26(multicast)# set group-limit 10-12 55 FEL2P-SW26(multicast)# show igmp-setting IGMP Snooping Unregister Multicast Flooding...
Page 226 <state>: 0(disable), 1(enable). Example: FEL2P-SW26(multicast)# set igmpsnp-enable 0 FEL2P-SW26(multicast)# show igmp-setting IGMP Snooping Unregister Multicast Flooding General Query Interval General Query Max Response Time : 5 General Query Timeout Specific Query Count Specific Query Max Response Time : 1 Specific Query Timeout Port Multicast Group Limit IGMP Router ---- --------------------- ----------- ...(q to quit)
Page 227 Example: FEL2P-SW26(multicast)# set mvr-enable 1 3 set mvr-tagging Syntax: set mvr-tagging <port> <state> Description: To set mvr tagging function on switch Argument: <port> syntax: 1,5-7, from 1 to 26 value. <state>: 0(untag-out), 1(tag-out). Possible value: <port> : 1 to 26.
Page 228 None None None None ...(q to quit) set mvr-vid Syntax: set mvr-vid <vid> Description: To set mvr vid on switch Argument: <vid>: from 1 to 4094 value Possible value: <vid>: from 1 to 4094 value Example: FEL2P-SW26(multicast)# set mvr-vid 3...
Page 229 set mvrserv-type Syntax: set mvrserv-type <port> <type> Description: To set mvr service type Argument: <port> syntax: 1,5-7, from 1 to 26 value. <type>: 0(None), 1(Client), 2(Router). Possible value: <port> : 1 to 26. <type>: 0(None), 1(Client), 2(Router). Example: FEL2P-SW26(multicast)# set mvrserv-type 6-8 1 FEL2P-SW26(multicast)# set mvrserv-type 9-10 2 FEL2P-SW26(multicast)# show mvr-setting Multicast VLAN Registration : Enable...
Page 230 <cnt>: from 1 to 10 value. Example: FEL2P-SW26(multicast)# set specqry-count 5 set specqry-response Syntax: set specqry-response <time> Description: To set specific query max response time on switch. Argument: <time>: from 1 to 10 value. Possible value: <time>: 1 to 10. Example: FEL2P-SW26(multicast)# set specqry-response 2...
Page 231 ---- --------------------- ----------- ...(q to quit) show group-filtering Syntax: show group-filtering <vid> Description: To show group filtering on switch. Argument: <vid>: from 1 to 4094 value. Possible value: <vid>: 1 to 4094. Example: FEL2P-SW26(multicast)# show group-filtering 3 Index Start Address : 224.1.1.1 End Address : 226.255.255.255...
Page 232 Specific Query Max Response Time : 1 Specific Query Timeout Port Multicast Group Limit IGMP Router ---- --------------------- ----------- ...(q to quit) show igmp-vlan Syntax: show igmp-vlan Description: To show igmp-vlan on switch. Argument: none Possible value: none Example: FEL2P-SW26(multicast)# show igmp-vlan Index ----- -------...
Page 233 To show multicast-status on switch. Argument: none Possible value: none Example: FEL2P-SW26(multicast)# show multicast-status ? None entry exist. FEL2P-SW26(multicast)# show mvr-setting Syntax: show mvr-setting Description: To show mvr-setting on switch. Argument: none Possible value: none Example: FEL2P-SW26(multicast)# show mvr-setting Multicast VLAN Registration : Enable...
Page 234: Enable Dhcp
disable dhcp Syntax: disable dhcp Description: To disable the DHCP function of the system. Argument: None. Possible value: None. Example: FEL2P-SW26(ip)# disable dhcp DHCP is already stopped. enable dhcp Syntax: enable dhcp <manual | auto> Description: To enable the system DHCP function and set DNS server via manual or auto mode. Argument: <manual|auto>...
Page 235 set ip Syntax: set ip <ip> <mask> <gateway> Description: To set the system IP address, subnet mask and gateway. Argument: <ip> : ip address <mask> : subnet mask <gateway> : default gateway Possible value: <ip> : 192.168.1.1 or others <mask> : 255.255.255.0 or others <gateway>...
Page 236 clear Syntax: clear Description: To clear the log data. Argument: None. Possible value: None. Example: FEL2P-SW26 (log)# clear disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: None. Possible value: None. Example: FEL2P-SW26 (log)# disable auto-upload enable auto-upload Syntax: enable auto-upload Description:...
Page 237 show Syntax: show Description: To show a list of trap log events. When any of log events happens, it will be recorded and using show command in log function to query. Up to 120 log records are supported. Argument: None. Possible value: None.
Page 238: Set Mode
LLDP <<set clear>> Syntax: set clear Description: Resets the traffic and error counters to zero. Argument: None Possible value: None Example: FEL2P-SW26(lldp)# set clear FEL2P-SW26(lldp)# set mode Syntax: set mode <mode> <range> Description: To set LLDP mode Argument: tx and rx = 1 tx only = 2 rx only = 3 disabled = 0...
Page 239 set reInitDelay Syntax: set reInitDelay <time> Description: To set LLDP reInitDelay time Argument: <Time> : from 1 to 10 second(s) Possible value: <Time> : from 1 to 10 second(s) Example: FEL2P-SW26(lldp)# set reInitDelay 5 FEL2P-SW26(lldp)# set tlv Syntax: set tlv <0> <1> <2> <3> <4> <range> Description: To set disable/enable lldp tlv Argument:...
Page 240 FEL2P-SW26(lldp)# set txHold Syntax: set txHold <time> Description: To set lldp txHold Argument: <time>: from 2 to 10 second(s) Possible value: <time>: from 2 to 10 second(s) Example: FEL2P-SW26(lldp)# set txHold 5 FEL2P-SW26(lldp)# set txInterval Syntax: set txInterval <time> Description: To set lldp txInterval Argument: <time>: from 5 to 32768 second(s)
Page 241 LLDP Notification Interval [5] : 500 LLDP Port Configuation Port AdminStatus NotificationEnabled ---- ----------- ------------------- Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable FEL2P-SW26(lldp)# show detail counter Syntax: show detail-counter <port> Description: To display LLDP detail counter Argument: <port>: 1,5-9, available from 1 to 10 Possible value: <port>: 1,5-9, available from 1 to 10...
Page 242 LLDP Local Devices Information Chassis Type : MAC-address Chassis Id : 00-A0-57-15-2A-F7 System name = FEL2P-SW26 System Description : 24-Port FEL2 Plus Managed Switch with 2 SFP Dual Media System Capabilities Supported : bridge System Capabilities Enabled : bridge Management Address : Type : ipv4 Address : 192 .
Page 243: Show Stats
FEL2P-SW26(lldp)# show port-config Syntax: show port-config <port> Description: To display LLDPport config Argument: <port>: 1,5-9, available from 1 to 26. Possible value: <port>: 1,5-9, available from 1 to 26. Example: FEL2P-SW26(lldp)# show port-config 5 LLDP Port Configuration Detail Port : AdminStatus [Tx_Rx] : Disable NotificationEnabled [False] : True TLVs Advertised :...
Page 244 Port Frames Frames ------ ------ FEL2P-SW26(lldp)# mac-table <<alias>> Syntax: del <mac> Description: To delete the mac alias entry. Argument: <mac> : mac address, format: xx-xx-xx-xx-xx-xx Possible value: <mac> : mac address Example: FEL2P-SW26(mac-table-alias)# del 00-e5-55-c9-93-c9 Syntax: set <mac> <alias> Description: To set up the mac alias entry.
Page 245 Possible value: None. Example: FEL2P-SW26(mac-table-alias)# show MAC Alias List MAC Address ----- ----------------- ---------------- 00-d0-59-c5-92-c8 client1 00-e5-55-c9-93-c9 client2 <<information>> search Syntax: search <port> <mac> <vid> Description: To look for the relative mac information in mac table. Argument: <port> : set up the range of the ports to search for, syntax 1,5-7, available form 1 to 26 <mac>...
Page 246 ---------------- ----------------------- ---- 00-C0-26-C3-3F-37 00-C0-9F-71-12-24 client2 00-D0-59-C5-92-C8 00-E0-18-6C-9E-DA 00-E0-18-DF-91-DD 52-54-4C-39-3A-38 <<maintain>> flush Syntax: flush Description: To flush MAC table. Argument: none Possible value: none Example: FEL2P-SW26(mac-table-maintain)# flush set aging Syntax: set aging <time> Description: To set up the age out time of dynamic learning mac. Argument: <time>...
Page 247 show Syntax: show Description: To display the settings of MAC table ageout time and the learning limit of each port. Argument: None. Possible value: None. Example: FEL2P-SW26(mac-table-maintain)# show Mac table ageout time: 300 seconds Port Dynamically learn limit ------ ------------------------- 8191 8191 8191...
Page 248 enable Syntax: enable Description: To enable port security. Argument: none Possible value: none Example: FEL2P-SW26(mac-table-port-security)# enable <<port>> Syntax: port <range> Description: To enter into per port static mac mode. Argument: <range> : syntax: 1,5-7, available from 1 to 26 Possible value: <range>...
Page 249 Argument: <mac>: mac address, format: 01-02-03-04-05-06 <vid>: vlan id, from 1 to 4094 <rule> : forwarding rule, from 0 to 2 0:static 1:drop destination address matches 2:drop source address matches <port> : forwarded destination port, form 1 to 26 Possible value: <vid>: 1 to 4094 <rule>: 0 to 2 <port>: 1 to 26...
Page 250: Set Access
Possible value: None. Example: FEL2P-SW26(mac-table-static-mac)# add 00-d0-59-c5-92-c8 1 1 8 FEL2P-SW26(mac-table-static-mac)# show ------ ----------------- ------ ----------------------------- ------- 1) 00-D0-59-C5-92-C8 FEL2P-SW26(mac-table-static-mac)# management Syntax: del <name> Description: elete a management security entry Argument: <name> : management security entry name Possible value: <name> : management security entry name Example: FEL2P-SW26(management-add)# set name Mary vid 20 ip 192.168.1.1- 192.168.1.90 port 2-5,8 type h,s action a...
Page 251 Name : acc1 IP Range: 192.168.2.2-192.168.2.22 Port : 10 Access : Any Action : Accept Name : acc2 : Any IP Range: Any Port : Any Access : Http Telnet SNMP Action : Deny FEL2P-SW26(management)# set action Syntax: set action <name> <act> Description: setup action field of a management security entry Argument:...
Page 252 Access : Http Telnet SNMP Action : Deny FEL2P-SW26(management)# set ip Syntax: set ip <name> <ip1> <ip2> Description: setup ip field of a management security entry Argument: <name> : management security entry name <ip1> : start ip address, 0 for any <ip2>...
Page 253: Set Port
set port Syntax: set port <name> <range> Description: setup port field of a management security entry Argument: <name> : management security entry name <range syntax> : 1,5-7, available from 0 to 26, 0 for any Possible value: <name> : management security entry name <range syntax>...
Page 254: Clear Counter
Access : Any Action : Deny FEL2P-SW26(management)# show Syntax: show Description: To show management security entry. Argument: None Possible value: None. Example: FEL2P-SW26(management)# show Name : remote1 : 300 IP Range: 192.168.2.33-192.168.2.34 Port Access : Any Action : Deny FEL2P-SW26(management)# port clear counter Syntax:...
Page 255: Set Description
Description: To disable the communication capability of the port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 26 Possible value: <range>: 1 ~ 26 Example: FEL2P-SW26 (port)# disable state 12 enable state Syntax: enable state <range> Description: To enable the communication capability of the port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 26 Possible value:...
Page 256: Set Flow-Control
…… set flow-control Syntax: set flow-control <range> <symmetric | asymmetric> Description: To set up the flow control function of all ports. Argument: <range>:port range, syntax 1,5-7, available from 1 to 26 <symmetric>: set its flow control as symmetric <asymmetric>: set its flow control as asymmetric Possible value: <range>: 1 to 26 <symmetric | asymmetric>:symmetric or asymmetric...
Page 257: Show Conf
Down Enable Down Enable Disable Enable Disable Down Enable Disable Down Enable Disable Down Enable Disable Down Enable Disable Down Enable …… ……. Down Enable Down Enable FEL2P-SW26(port)# show conf Syntax: show conf Description: To display the each port’s configuration about state, speed-duplex and flow control. Argument: None.
Page 258: Show Media
Enable Auto Mode Enable Auto Mode Enable Auto Mode Enable Auto Mode show detail-counter Syntax: show detail-counter <#> Description: To display the detailed counting number of each port’s traffic. Argument: <#> : port, available from 1 to 26 Possible value: <#>:1 ~ 26 Example: FEL2P-SW26 (port)# show detail-counter 6...
Page 259 Argument: <port>: available 25, 26 Possible value: <port>: 25, 26 Example: FEL2P-SW26(port)# show media 25 Port 25 Fiber Media Information --------------------------------------------------------------------- Connector Type : SFP - Unknown or unspecified Fiber Type : Reserved Tx Central Wavelength : 0 Baud Rate : 1G Vendor OUI : 00:00:00...
Page 260: Show Status
Port 3 Tx Octets Tx Packets Tx Collisions : 0 … … ...(q to quit) show status Syntax: show status Description: To display the port’s current status. Argument: None. Possible value: None. Example: FEL2P-SW26(port)# show status Port Media Link State Auto Nego. Speed/Duplex Rx Pause Tx Pause ---- ----- ---- ------- ---------- ------------ -------- -------- Down Enable Down Enable...
Page 261: Disable Qos
None. Example: FEL2P-SW26 (qos)# disable 1p disable dscp Syntax: disable dscp Description: To disable IP DSCP qos. Argument: None. Possible value: None. Example: FEL2P-SW26 (qos)# disable dscp disable qos Syntax: disable qos Description: To disable qos function. Argument: None. Possible value: None.
Page 262: Enable Qos
Syntax: enable dscp Description: To enable IP DSCP qos. Argument: None. Possible value: None. Example: FEL2P-SW26 (qos)# enable dscp enable qos Syntax: enable qos Description: To enable qos function. Argument: None. Possible value: None. Example: FEL2P-SW26 (qos)# enable qos enable tos Syntax: enable tos Description:...
Page 263 syntax: 1,2 or 2,5-7, available from 0 to 63. Possible value: <priority>: 0 to 63 Example: FEL2P-SW26 (qos)# set dscp q0 2 q1 2 q2 2 q3 3 set pri-tag Syntax: set pri-tag [<q0><priority>] [<q1><priority>] [<q2><priority>] [<q3><priority>] Description: To set 802.1p qos weighting for 4 queues. Argument: <q>: queue level, q0: queue 0;...
Page 264: Show Dscp
method : priority scheduling method 0: 4 WRR 1: 1 Strict + 3 WRR 2: 2 Strict + 2 WRR 3: 4 Strict wrr_0 to 3: weighted for every queue. weighted range : 1-55. Possible value: <method>: 0-3 <wrr_0 to 3>: 1-55. Example: FEL2P-SW26(qos)# set sche 0 2 8 11 11 FEL2P-SW26(qos)# show pr...
Page 265 Enable ip diffserv classification Scheduling: weighted round robin method. weight: wrr 0 = 1; wrr 1 = 1; wrr 2 = 8; wrr 3 = 16. weighted range: 1~55. P0~63: Priority 0~63. Default mode: Queue0: P0~15; Queue1: P16~31; Queue2: P32~47; Queue3: P48~63.
Page 266 P0~7: Priority 0~7. Default mode: Queue0: P0,P1; Queue1: P2,P3; Queue2: P4,P5; Queue3: P6,P7. ---- ---- ---- ---- ---- ---- ---- ---- Queue 0 FEL2P-SW26(qos)# reboot reboot Syntax: reboot Description: To reboot the system. Argument: None. Possible value: None. Example: FEL2P-SW26 # reboot security <<isolated-group>>...
Page 267 show Syntax: show Description: To display the current setting status of isolated group. Argument: None. Possible value: None. Example: FEL2P-SW26(security-isolated-group)# set 9,10-14 FEL2P-SW26(security-isolated-group)# show Isolated group: 9 10 11 12 13 14 FEL2P-SW26(security-isolated-group)# <<mirror>> disable Syntax: disable Description: To disable the function of mirror. Argument: None.
Page 268 Syntax: set <spy> <ingress> <egress> Description: To set up the monitoring port and monitored ports of the mirror (ingress/egress) function. User can monitor the ports that receive or transmit the packets. Argument: <spy> : Monitoring port <ingress> : monitored ingress port; range syntax: 1,5-7, available from 0 to 26 <egress>...
Page 269 Argument: None. Possible value: None. Example: FEL2P-SW26(snmp)# disable set-community FEL2P-SW26(snmp)# disable snmp enable Syntax: enable set-community enable snmp Description: The Enable here is used for the activation snmp or set-community. Argument: None. Possible value: None. Example: FEL2P-SW26(snmp)# enable set-community FEL2P-SW26(snmp)# enable snmp Syntax: set get-community <community>...
Page 270 Description: The Show here is to display the configuration of SNMP. Argument: None. Possible value: None. Example: FEL2P-SW26 (snmp)# show SNMP : Enable Get Community: public Set Community: private [Enable] Trap Host 1 IP Address: 192.168.1.1 Port: 162 Community: public Trap Host 2 IP Address: 0.0.0.0 Port: 162 Community: public Trap Host 3 IP Address: 0.0.0.0 Port: 162 Community: public Trap Host 4 IP Address: 0.0.0.0 Port: 162 Community: public...
Page 271: Set Config
Description: To enable the function of STP. Argument: None. Possible value: None. Example: FEL2P-SW26 (stp)# enable set config Syntax: set config <Bridge Priority> <Hello Time> <Max. Age> <Forward Delay> Description: To set up the parameters of STP. Argument: <Bridge Priority>: priority must be a multiple of 4096,available from 0 to 61440. <Hello Time>: available from 1 to 10.
Page 272: Show Port
set version Syntax: set version <stp|rstp> Description: To set up the version of STP. Argument: <stp|rstp>:stp / rstp Possible value: <stp|rstp>:stp / rstp Example: FEL2P-SW26 (stp)# set version rstp show config Syntax: show config Description: To display the STP configuration data. Argument: None.
Page 273: Set Contact
STP Topology Change Count Time Since Last Topology Change(sec) : 848 system set contact Syntax: set contact <contact> Description: To set the contact description of the switch. Argument: : Enabled : 00:40:C7:D8:09:1D : 61440 : 00:40:C7:D8:09:1D : 61440 : 20 : 15 Publication date: March., 2011...
Page 274: Set Location
FEL2P-SW26 (system)# set contact Taipei set device-name Syntax: set device-name <device-name> Description: To set the device name description of the switch. Argument: <device-name>: string length up to 40 characters. Possible value: <device-name>: A, b, c, d, ... ,z and 1, 2, 3, …. etc.
Page 275 Contact Device Name System Up Time Current Time BIOS Version Firmware Version Hardware-Mechanical Version : v65535.65535-v0.04 Serial Number Host IP Address Host MAC Address Device Port RAM Size Flash Size tftp set server Syntax: set server <ip> Description: To set up the IP address of tftp server. Argument: <ip>: the IP address of tftp server Possible value:...
Page 276: Set Daylightsaving
set daylightsaving Syntax: set daylightsaving <hr> <MM/DD/HH> <mm/dd/hh> Description: To set up the daylight saving. Argument: <hr> : daylight saving hour, range: -5 to +5 <MM> : daylight saving start Month (01-12) <DD> : daylight saving start Day (01-31) <HH> : daylight saving start Hour (00-23) <mm>...
Page 277: Set Ntp
FEL2P-SW26(time)# show Current Time : Tue Apr 08 11:24:02 2008 NTP Server : 209.81.9.7 Timezone Day light Saving : -5 Hours Day light Saving Start: Mth: 10 Day: 31 Hour: 0 Day light Saving End : Mth: 12 Day: 31 Hour: 0 FEL2P-SW26(time)# set ntp Syntax:...
Page 278: Set Priority
trunk del trunk Syntax: del trunk <port-range> Description: To remove the trunk port. Argument: <port-range> : syntax 1,5-7, available from 1 to 26 Possible value: <port-range> : 1 to 26 Example: FEL2P-SW26 (trunk)# del trunk 1 set hash Syntax: set hash <method> Description: To set up trunk hash method.
Page 279: Set Trunk
set trunk Syntax: set trunk <port-range> <method> <group> <active LACP> Description: To set up the status of trunk, including the group number and mode of the trunk as well as LACP mode. Argument: <port-range> : syntax 1,5-7, available from 1 to 26 <method>: <static|lacp>...
Page 280 show lacp-config Syntax: show lacp-config Description: To display the value of LACP Priority. Argument: None. Possible value: None. Example: FEL2P-SW26 (trunk)# show lacp-config LACP System Priority : 33333 Hash Method : DA show lacp-detail Syntax: show lacp-detail <aggtr> Description: To display the detailed information of the LACP trunk group. Argument: <aggtr>...
Page 281 Possible value: None. Example: FEL2P-SW26 (trunk)# show status Trunk Port Setting ------------------------------------- ---------------------- port Method Group ====== ======== ======= ============= ============= ======== None LACP LACP LACP LACP None None None None None None None None None None None None None None None None...
Page 282 <name>: port-vlan name Example: FEL2P-SW26 (vlan)# del port-group vlan-2 del tag-group Syntax: del tag-group <vid> Description: To delete the tag-based vlan group. Argument: <vid>: vlan ID, available from 1 to 4094 Possible value: <vid>: 1 to 4094 Example: FEL2P-SW26 (vlan)# del tag-group 2 disable double-tag Syntax: disable double-tag...
Page 283 Description: To enable Independent VLAN Learning. Argument: None. Possible value: None. Example: FEL2P-SW26 (vlan)# disable svl disable symmetric Syntax: disable symmetric Description: To Not drop frames from the non-member port. Argument: None. Possible value: None. Example: FEL2P-SW26 (vlan)# disable symmetric enable double-tag Syntax: enable double-tag...
Page 284 FEL2P-SW26 (vlan)# enable symmetric set mgt-vlan Syntax: set mgt-vlan <state> [vid] Description: To set management vlan function on switch.. Argument: <state> : 0 for disable; 1 for enable <vid> : vlan id, from 1 to 4094 Possible value: <state> : 0 for disable; 1 for enable <vid >...
Page 285: Set Pvid
Syntax: set mode <port | tag | metro #> Description: To switch vlan mode between port-based and tag-based modes. Argument: <tag> : set tag-based vlan <port> : set port-based vlan <metro> : set metro mode vlan #: up-link port type...
Page 286 <pvid>: which PVID you want to set, available from 1 to 4094 <default_priority>: which priority you want to set, available from 0 to 7 Possible value: <port_range>: 1 to 26 <pvid>: 1 to 4094 <default_priority>: 0 to 7 Example: FEL2P-SW26 (vlan)# set pvid 3,5,6-8 5 6 set tag-group Syntax: set tag-group <vid>...
Page 287 show group Description: To display vlan mode and vlan group. Argument: None Possible value: None Example: FEL2P-SW26 (vlan)# show group Vlan mode is tag-based. 1) Name :default Member:1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Untag :1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26...
Page 288 disable Syntax: disable Description: To disable the virtual stack. Argument: None. Possible value: None. Example: FEL2P-SW26(vs)# disable enable Syntax: enable Description: To enable the virtual stack. Argument: None. Possible value: None. Example: FEL2P-SW26 (vs)# enable set gid Syntax: set gid <gid> Description: To set the group id.
Page 289 Syntax: set role <master|slave> Description: To set role. Argument: <master|slave>: master: act as master, slave : act as slave Possible value: <master|slave>: master or slave Example: FEL2P-SW26 (vs)# set role master show Syntax: show Description: To display the configuration of the virtual stack. Argument: None.
Page 290: Maintenance
The connection ports on another must be connection ports. Please check if connection ports are used on that Managed Switch. Please check the uplink setup of the Managed Switch to verify the uplink function is enabled. 3. The console interface cannot appear on the console port connection.
Page 291: Appendix A Technical Specifications
TP/SFP or TP/GBIC. Supports 24-port 10/100M TP ports with Nway and auto MDIX function. MSM-6226 supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for removable SFP module supporting 1000M SFP fiber module. MSM-6226 supports 2 Gigabit dual media ports(TP/GBIC) and 2 slots for removable GBIC module supporting 1000M GBIC fiber module.
Page 292 Hardware Specifications Standard Compliance: IEEE802.3ab / 802.3z / 802.3u / 802.3x Network Interface of Option transceiver Configuration SFP.0LC.202 SFP.0LC.212.XX SFP.0BL.621.20X GBI.ZSC.202 GBI.ZSC.212.XX GBI.ZSC.621.20X * : Default module Transmission Mode: 10/100Mbps support full or half duplex 1000Mbps support full duplex only Transmission Speed: 10/100/1000Mbps for TP Full Forwarding/Filtering Packet Rate: PPS (packets per second) Forwarding Rate...
Page 293: Publication Date: March., 2011 Revision A1
Trunk Connection. SNMP support; MIB II, Bridge MIB, RMON MIB IEEE 802.1D Port-Base / 802.1Q-Tagged, allowed up to 256 active VLANs in one switch. Ports trunk connections allowed IP Multicast Filtering by passively snooping on the IGMP Query. Supports by-port Egress/Ingress rate control Referred as Class of Service (CoS) by the IEEE 802.1P standard...
Page 294: Appendix B Null Modem Cable Specifications
Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable. Function Carrier...
