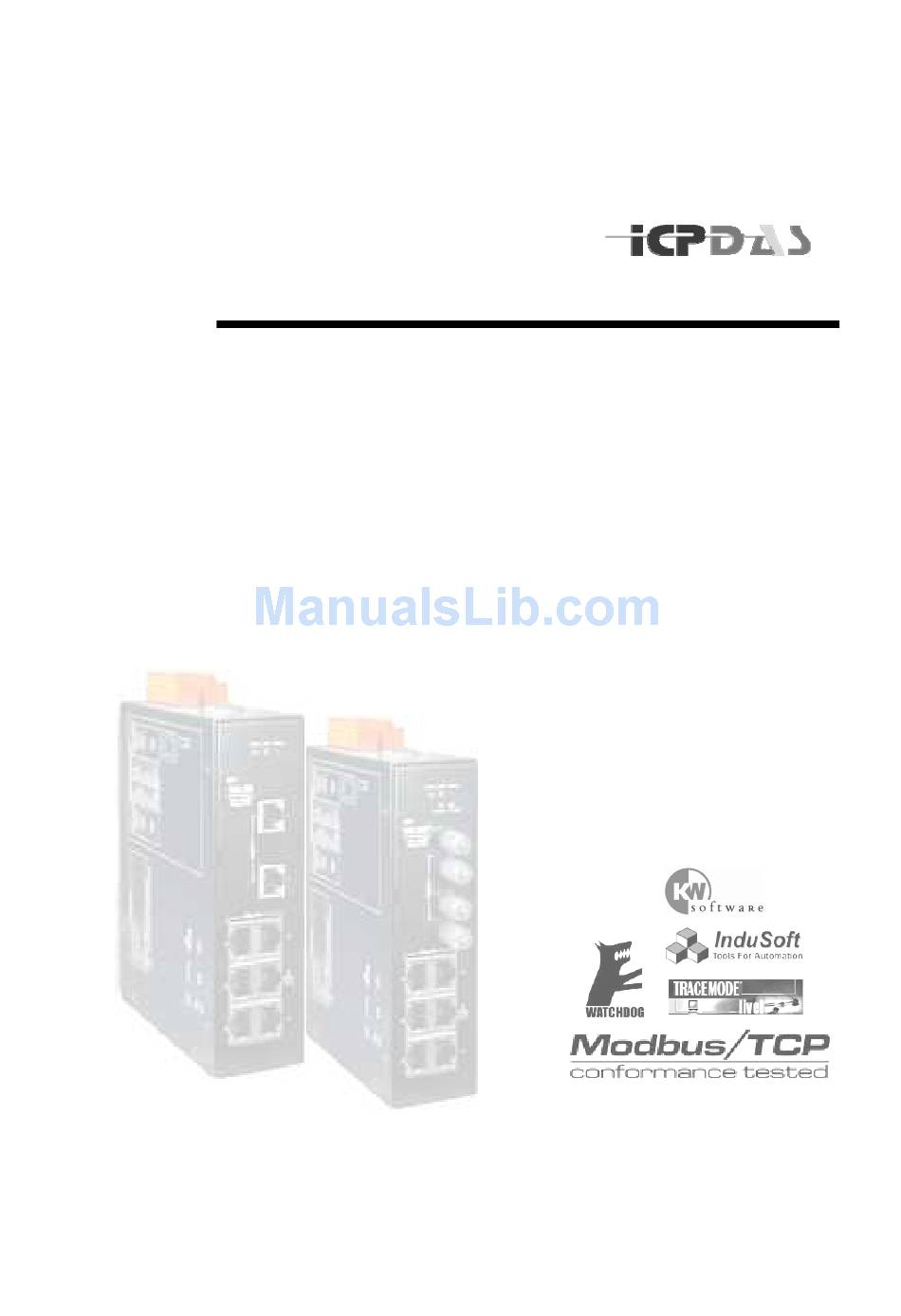

- Page 1 Industrial Managed Ethernet Switch Version 1.1 This document applied to models of MSM-508,MSM-508FC/FCS/FT © Co p yr i gh t IC P D A S C o. , Lt d. , A l l R i gh ts Re s er ve d .
-
Page 2: Table Of Contents
CONTENTS CONTENTS 2 Managed Switch RS-232 & Telnet Console Operation Console Connection... 2 Console Command ... 4 ▓ ? [COMMAND] ▓ REBOOT／RESET ▓ DEFAULT ▓ IP ▓ MASK ▓ GATEWAY ▓ MAC ▓ NETID [id number] ▓ LMASK [mask value] ▓... -
Page 3: Managed Switch
Industrial Redundant Ring Switch – Managed Switch Console Manual Managed Switch RS-232 & Telnet Console Operation Console Connection Console Command Release No. : 0804-V1 ICPDAS Managed Switch provides three access methods, RS-232, Telnet and HTTP, to configure the Switch functions. This Manual will guide you how to use the RS-232 and Telnet to access Managed Switch console. -
Page 4: Contents
Otherwise, you can download our free Console Emulator from RS Series Switch download page: http://www.icpdas.com/products/Switch/industrial/software.htm Telnet Connection Before using telnet to access console, please mask sure the PC host and Managed Switch are on the same subnet. Factory default: IP Address... - Page 5 Industrial Redundant Ring Switch – Managed Switch Console Manual By factory default setting, both the account and password are Admin. Only one telnet connection is accepted at the same time. Release No. : 0804-V1...
-
Page 6: Console Command
Please provide the name of the command that you want detail information about. Example ▓ ▓ ▓ ▓ REBOOT／ ／ ／ ／ RESET Description The reset command will initiate Ring Switch a self-restart. All current setting values remain intact. Release No. : 0804-V1... -
Page 7: Default
Industrial Redundant Ring Switch – Managed Switch Console Manual ▓ ▓ ▓ ▓ DEFAULT Description The default command will restore all settings to factory default values. Current factory default values are as follow: COM1:baudrate 115200,8bit,none patity check, 1 stopbit COM2:baudrate 115200,8bit,none patity check, 1 stopbit... -
Page 8: Mask
Industrial Redundant Ring Switch – Managed Switch Console Manual ▓ ▓ ▓ ▓ MASK Description If no mask address is specified, the “mask” command will display current mask address. To assign a mask address for TCP/IP, please input mask address in the form of “m1.m2.m3.m4”... -
Page 9: Netid [Id Number]
Industrial Redundant Ring Switch – Managed Switch Console Manual Example Each Switch is shipped from the factory with a unique MAC address, and the value is labeled on the Switch case. DO NOT change this address unless you have a good reason to do so. -
Page 10: Lmask [Mask Value]
Industrial Redundant Ring Switch – Managed Switch Console Manual ▓ ▓ ▓ ▓ LMASK [mask value] Description This command enables you to configure relay output activation status when there is link loss occurring on port(s). The ports are corresponding to the 8 mask bits, bit 0 corresponds to port 1, etc. -
Page 11: Cmask [Mask Value]
Description This command enables you to configure relay output activation status when there is power fail occurring on power 1 or power 2, or when the switch is being selected as the master switch. Bit 0 corresponds to Power1, bit 1 corresponds to Power 2 and bit 3 corresponds to master switch indicator. -
Page 12: Lvalue
Industrial Redundant Ring Switch – Managed Switch Console Manual Set Relay active if Power 1 or Power 2 fail ▓ ▓ ▓ ▓ LVALUE Description This command enables you to read link status showing by a hexadecimal number that represents the 8 bits corresponding binary numbers. Bit 0 corresponds to port 1, etc. If there is link loss occurring on port(s), the corresponding bit(s) will be set up as 1. -
Page 13: Smask
Power 2 Master Ring Switch Relay output status Example Power2 fail occurring, and the Switch is the Master of the topology. ▓ ▓ ▓ ▓ HMIVALUE [value1] [value2] Description This command enables you to configure the Switch operation modes. Parameters... -
Page 14: Rtime [Time]
Value can be specified only on Cyber-Ring Protocol Mode (refer to HMIVLAUE setting). NOTE Use the following function to calculate an adequate rtime: rtime = [Round(0.3*(N+1))]*100 ms N: number of switches Example: If there are 5 switches (including master switch), the adequate rtime will be: Release No. : 0804-V1 Description... -
Page 15: Ftime [Time]
Example Return message: “forward delay X (Y) ms. ” “X” ( switch value) indicates the ftime value set by console command, “Y” (operating value) indicates the actual operating value. Value can be specified only on STP Mode (refer to HMIVLAUE setting). -
Page 16: Htime [Time]
Example Return message: “max age time X (Y) ms. ” “X” ( switch value) indicates the mtime value set by console command, “Y” (operating value) indicates the actual operating value. Value can be specified only on STP Mode (refer to HMIVLAUE setting). -
Page 17: Com1 [Baud Rate][Data Bit][Parity][Stop Bit]
Industrial Redundant Ring Switch – Managed Switch Console Manual ▓ ▓ ▓ ▓ COM1 [baud rate][data bit][parity][stop bit] Description The first serial port transmission speed (baud rate),data bit (data bit), parity check type (parity) and stop bit (stop bit). The transmission speed parameter [baud rate] allows the following settings: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200. -
Page 18: Com2 [Baud Rate][Data Bit][Parity][Stop Bit]
Industrial Redundant Ring Switch – Managed Switch Console Manual ▓ ▓ ▓ ▓ COM2 [baud rate][data bit][parity][stop bit] Description The second serial port the transmission speed (baud rate),data bit (data bit), parity check type (parity) and stop bit (stop bit).
