Completing the Chassis Installation

1. From the back of the cabinet, reconnect all mini-SAS cables to their original
locations on each SIM board in the new chassis (
2. Reconnect the country-specific power cables into each of the power supply
connectors (

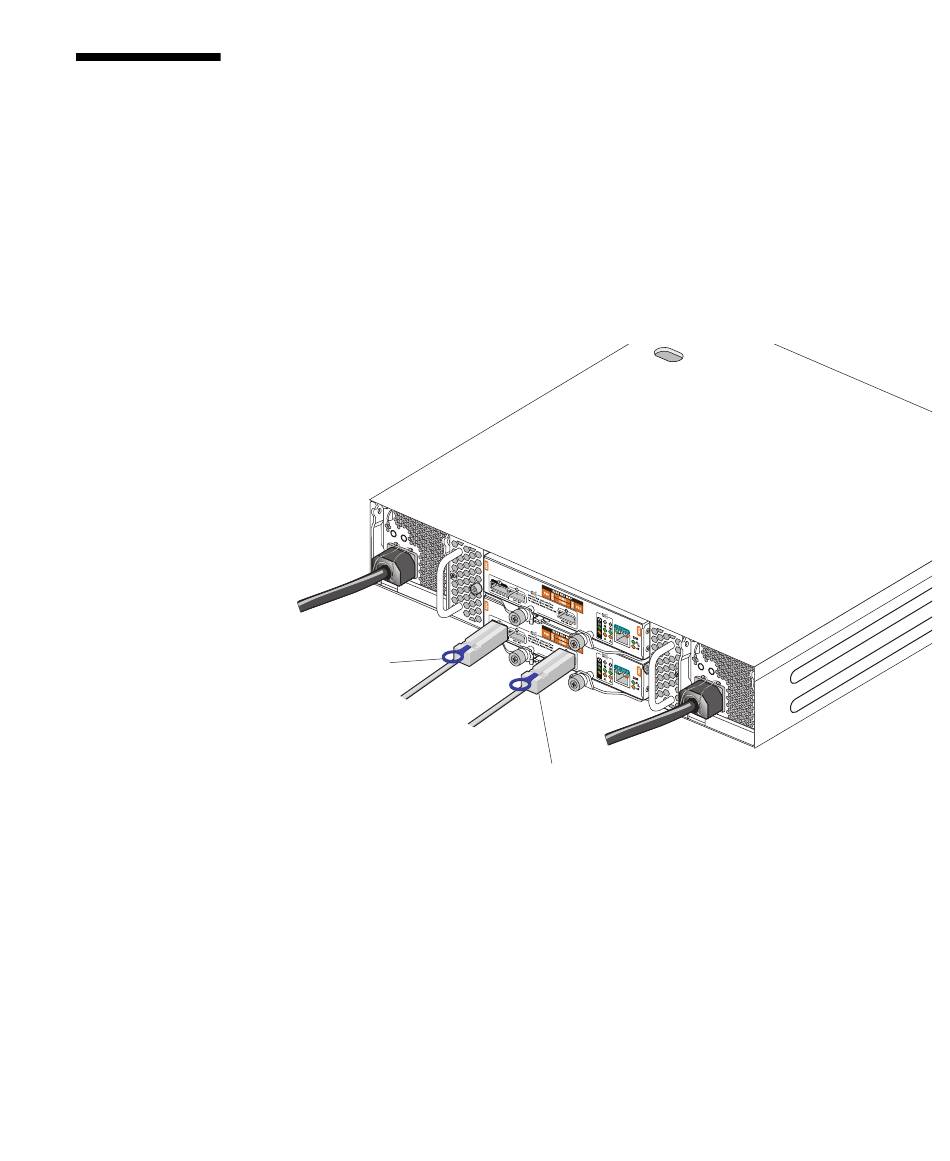

FIGURE 14
Reconnecting the Mini-SAS and Power Cables
FIGURE 14
Connection from Host
or SIM Link IN to
Management Host
3. Check the status of each tray.
After the power-on sequence is complete, confirm the following:
The green OK/Power LEDs on each drive in the tray are steady on.
■
If all tray and drive Ok/Power LEDs are steady green and the amber Service
Required LEDs are off, the power-on sequence is complete and no faults have
been detected.
The amber LED is blinking for any module.
■
Reseat the module to make sure that it is properly installed. If the LED is now
green, the module is functioning properly. If the module remains blinking amber,
contact Sun Customer Service Personnel.
). Replace the power cord latch over each connector.
Connection Between
Tray 0 and Tray 1
).
FIGURE 14
Replacing a J4200 Array Chassis 17
