8. Remove each SIM board from the chassis (
).
FIGURE 5
a. Loosen the two captive screws on the SIM board.
b. Pull both ejector levers outward and pull the SIM board from chassis.
c. Place the SIM board aside.

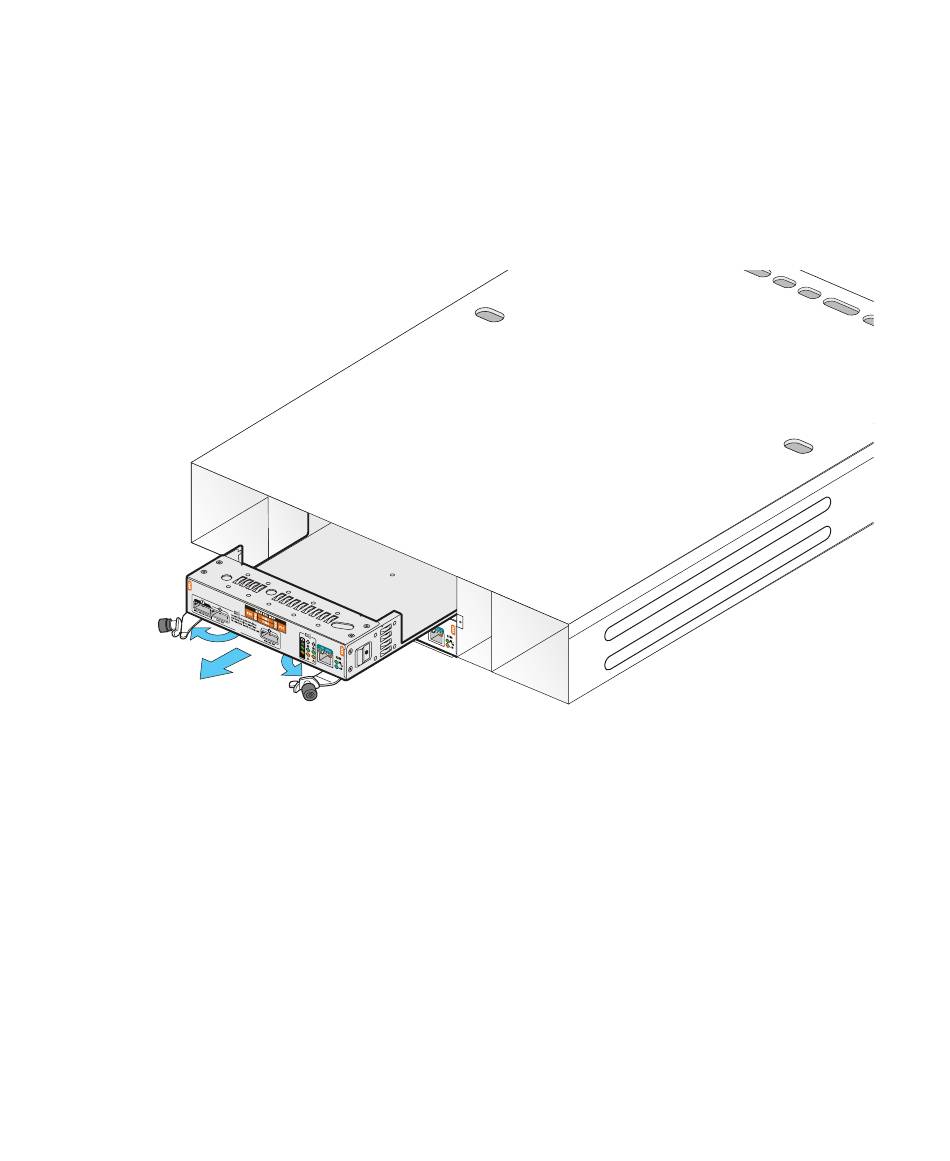

Removing a SIM Board From the Chassis
FIGURE 5
8
Sun Storage J4200 Array Chassis Replacement Guide • April 2008
