Installing the New Chassis
Caution – Follow all
components.
1. From the front of the cabinet, lift and slide the new chassis into the cabinet
until the front flanges of the chassis touch the vertical face of the cabinet
(
).

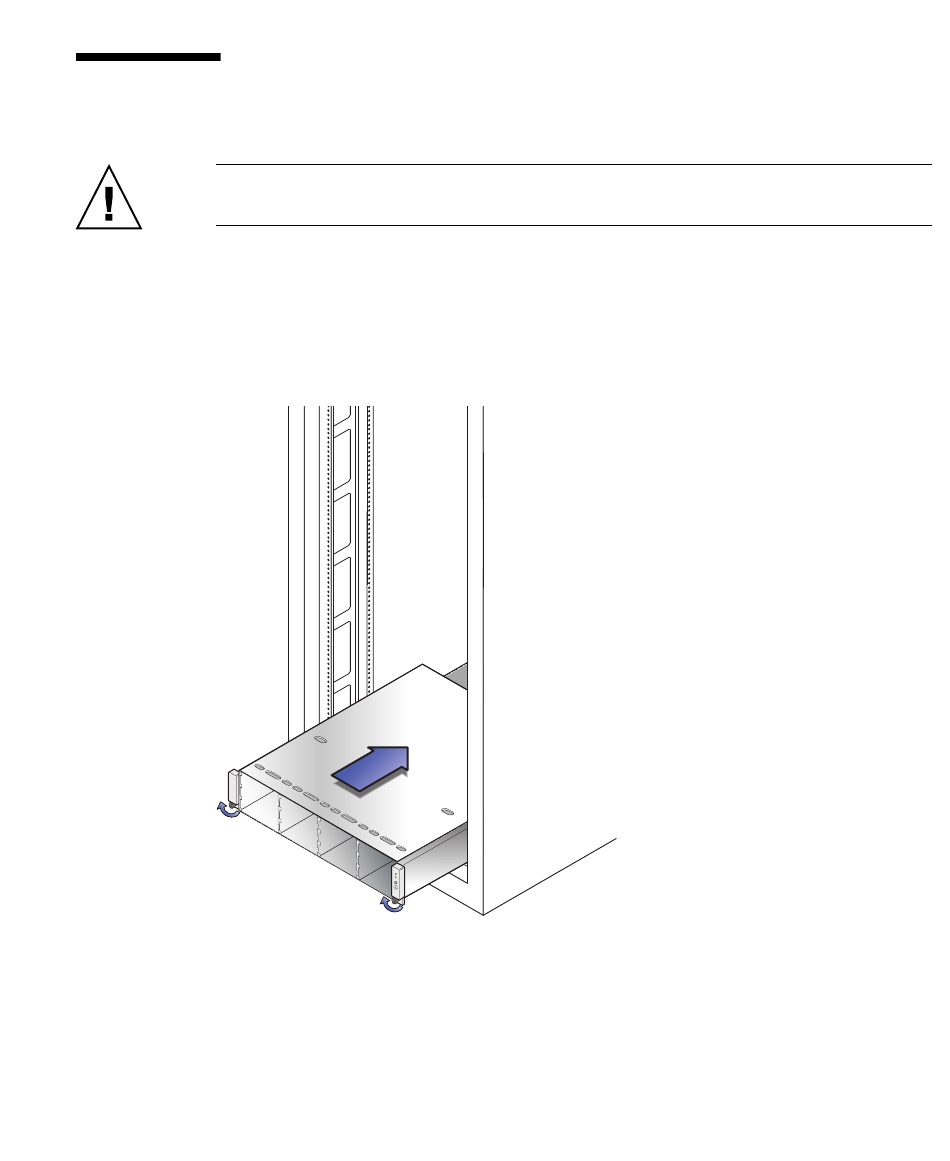

FIGURE 8
Installing the New Chassis in the Cabinet
FIGURE 8
2. Tighten the captive screw on each side of the tray front to secure the chassis to
the cabinet.
"ESD Precautions" on page 2
and use care when handling all
Replacing a J4200 Array Chassis
11
