3. At the back of the cabinet, slide a system locking clip onto each lower corner
of the chassis (
). You can use a Phillips head screwdriver for leverage
FIGURE 9
to help you push in the clip.

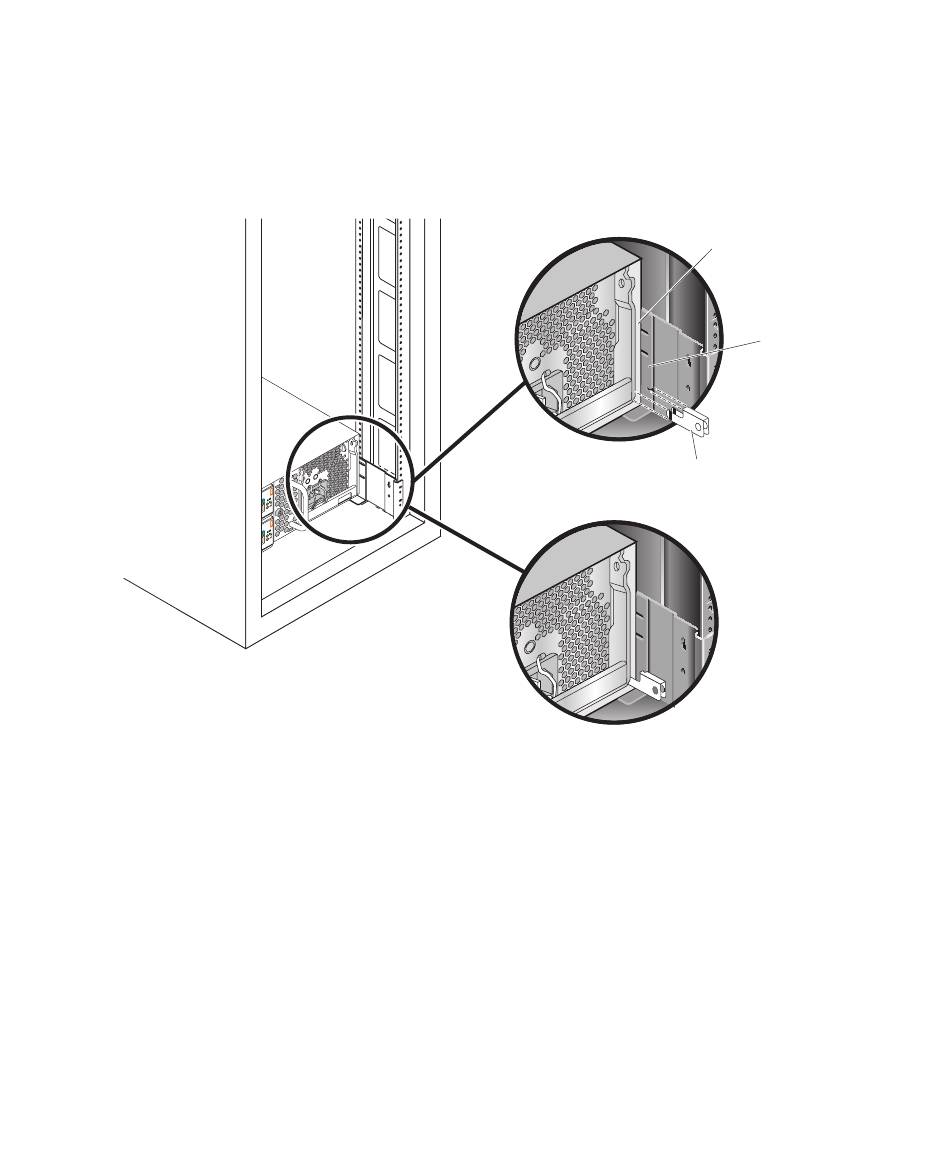

Installing the System Locking Clips
FIGURE 9
J4200 Tray
Mounting Rail
Locking Clip
Locking Clip Installed
12
Sun Storage J4200 Array Chassis Replacement Guide • April 2008
