2. From the back of the cabinet, install the two SIM boards in the SIM slots
( ).
FIGURE 11
For each SIM board:
a. Align the SIM board with the open slot and slide it into the tray.
b. Push the assembly into the tray until it engages with the tray connectors.
c. Simultaneously push each ejector lever toward the middle of the board to
seat it in the tray.
d. Tighten each captive screw to secure the board.

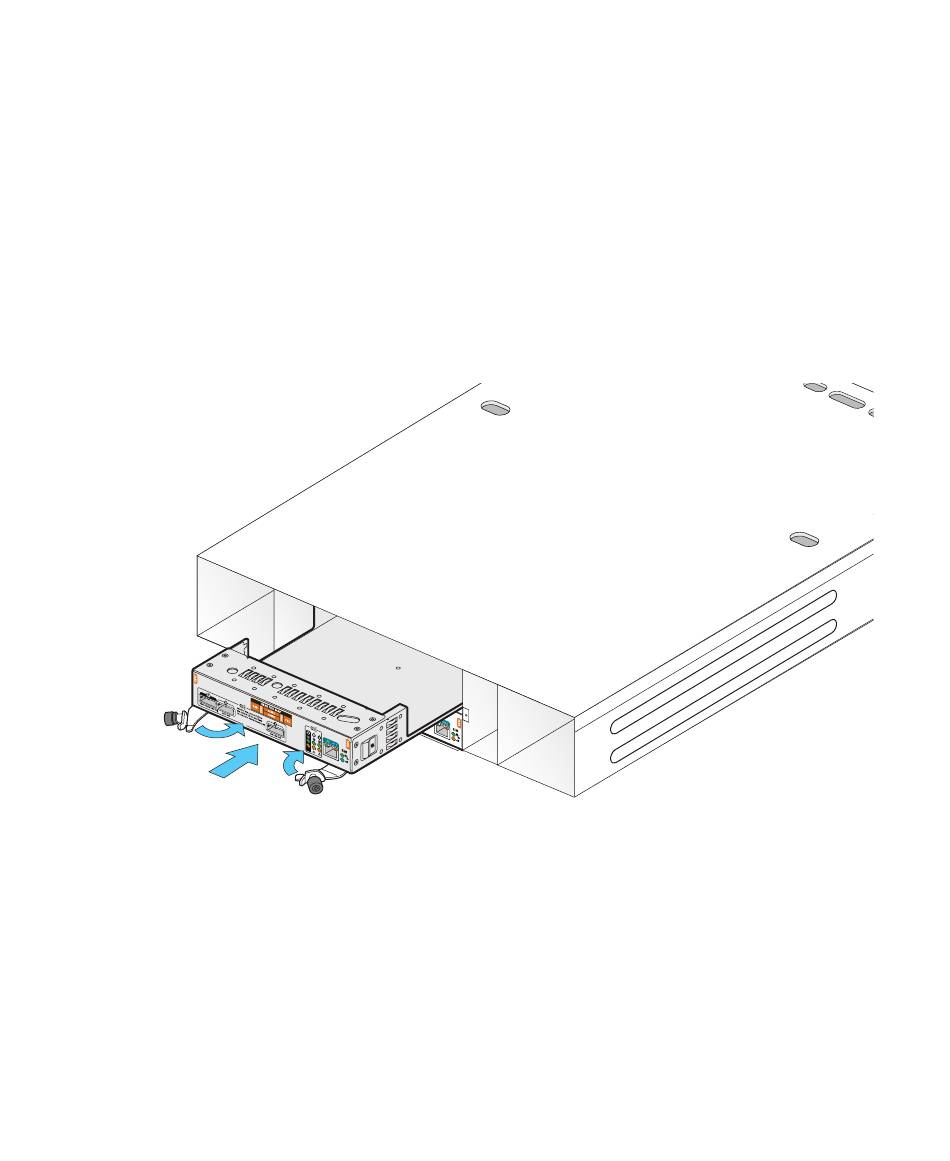

Installing a SIM Board
FIGURE 11
