4. Install the two power supplies into the chassis slots (
For each power supply:
a. Holding up the handle, align the power supply with its open slot.
b. Slide the power supply into the tray and carefully push the power supply
c. Push the handle down to lock the power supply in the chassis.
FIGURE 13
16 Sun Storage J4200 Array Chassis Replacement Guide • April 2008
to seat it in the chassis.
The latch tab locks the handle in place.

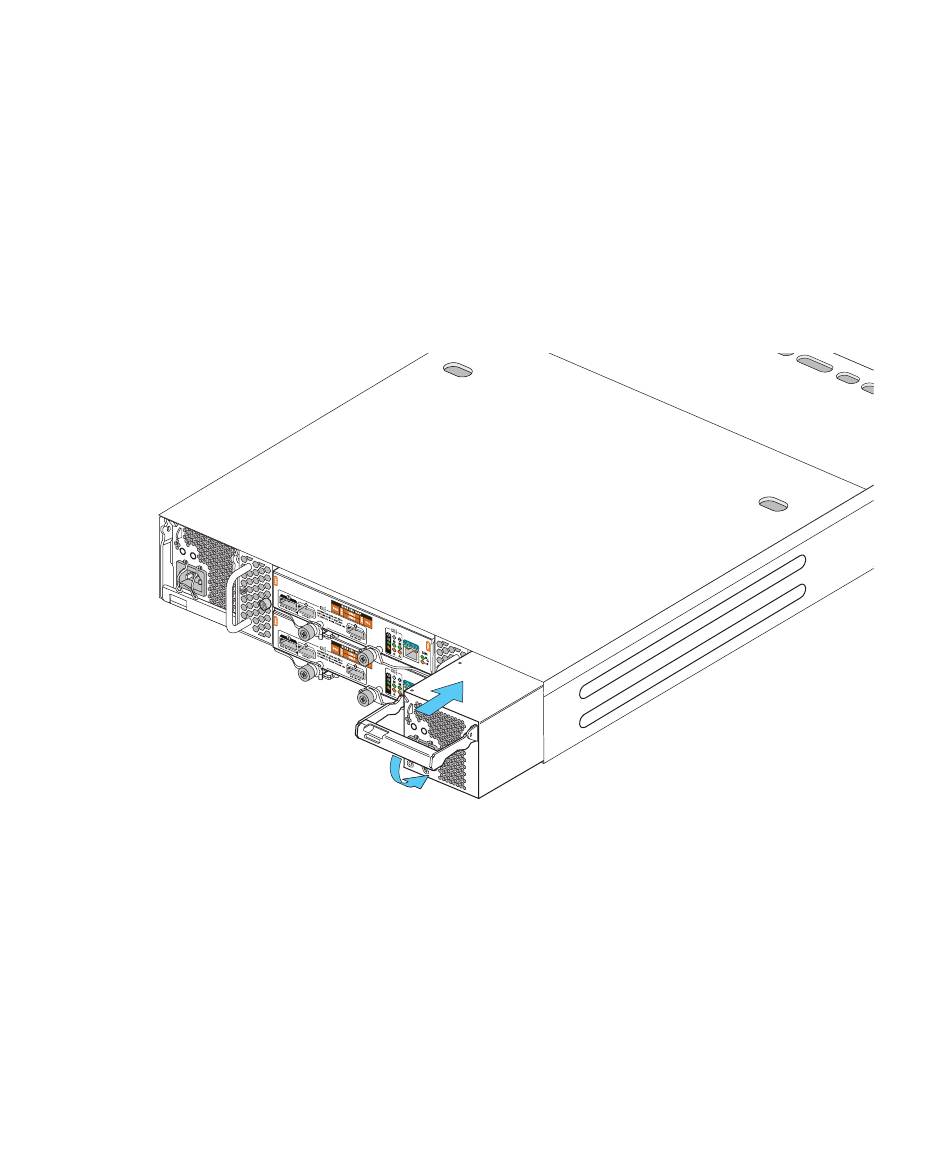

Installing a Power Supply
).
FIGURE 13
