7. Remove each fan module from the chassis (
a. Loosen the captive screw on the fan module.
b. Pull the fan module handle toward you and pull the module out of the tray.
c. Place the fan module aside.

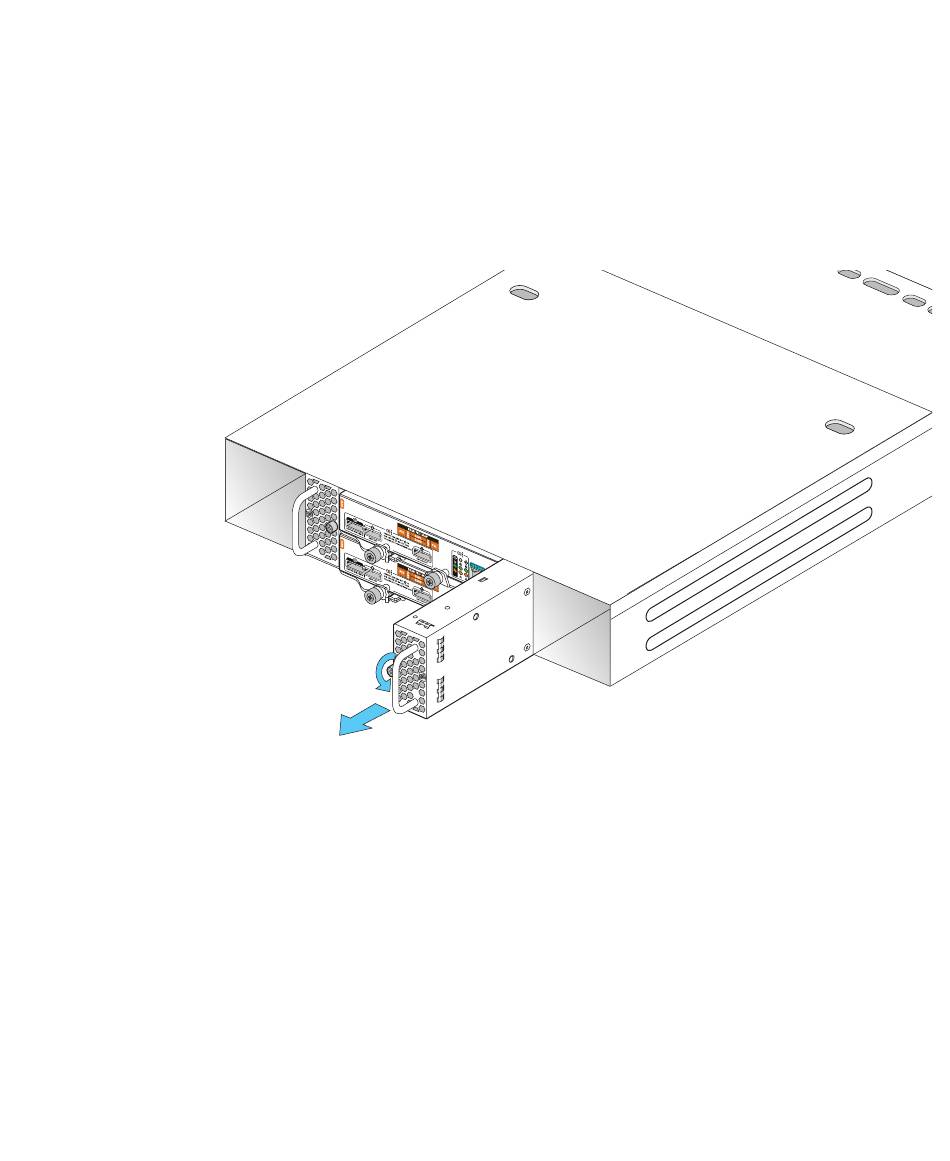

Removing a Fan Module
FIGURE 4
).
FIGURE 4
Replacing a J4200 Array Chassis 7
