Introduction

Product Description

The ImmersoPak burner (IP Series) is a nozzle-mix
burner with a packaged combustion air blower that is
designed to fire on-ratio (proportional air/gas control) or
fixed air on smaller models over a turndown of 10:1.
Integral gas and air orifices are provided to ease burner
setup. The burner is designed for:
• efficient ratio controlled combustion
• reliable burner operation
• simple burner adjustment
• direct spark ignition
• multiple fuel capability
A wide variety of options and configurations are available
due to the modular design of the burner.

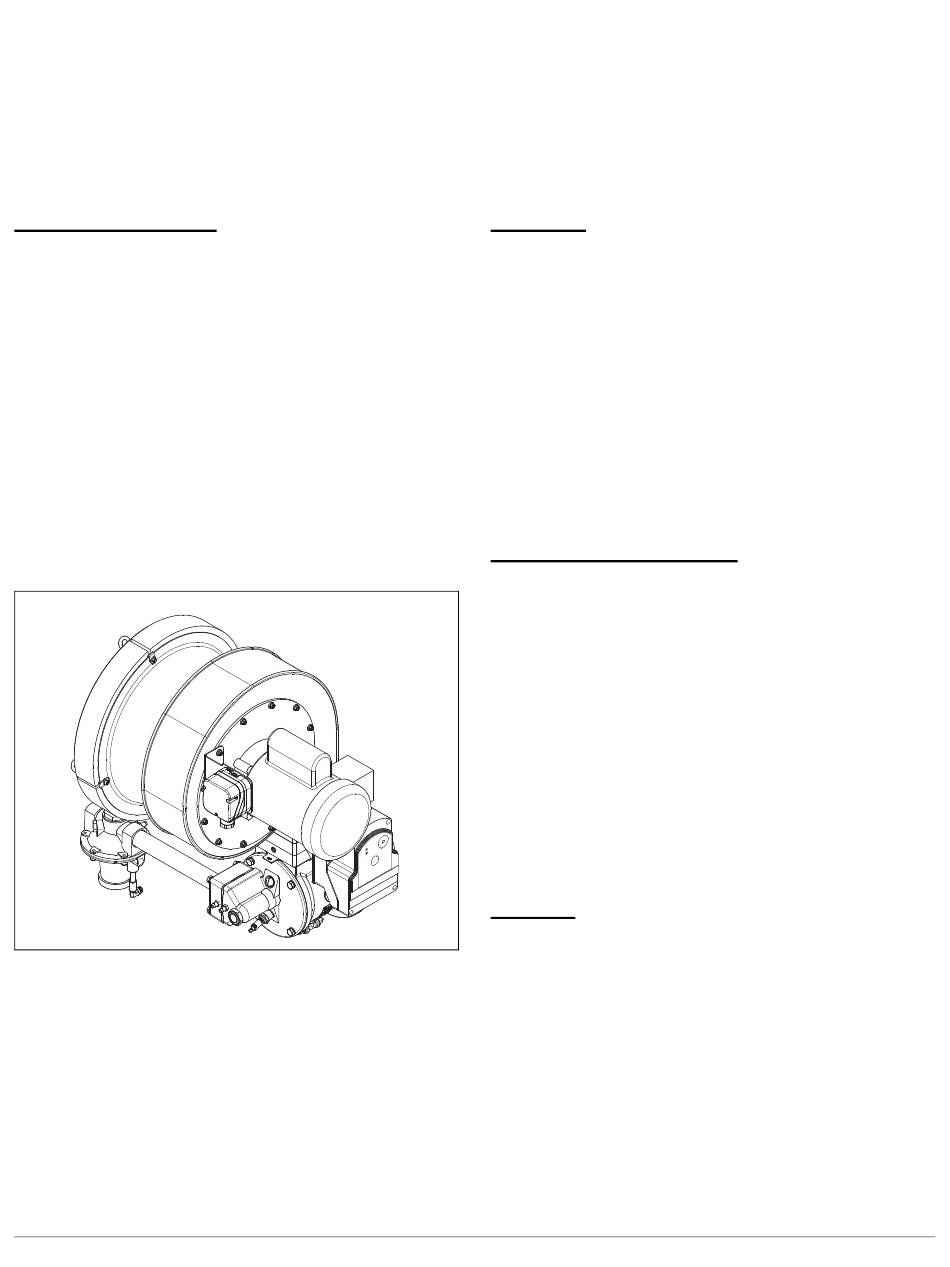

Figure 1.1. ImmersoPak Burner
32-00055—01
Audience
This manual has been written for people who are already
familiar with all aspects of a nozzle-mix burner and its
add-on components, also referred to as "the burner
system".
These aspects are:
• Installation
• Use
• Maintenance
The audience is expected to have previous experience
with this type of equipment.
ImmersoPak Documents
Installation Guide No. 360
• This document
Datasheet, Series No. 360
• Available for individual IP models
• Required to complete installation
Design Guide No. 206
• Used with Datasheet to complete installation
Related Documents
• EFE 825 (Combustion Engineering Guide)
• Eclipse Bulletins and Info Guides: 710, 732, 760,
818, 832, 852, 854, 856, 610, 620, 630, 826, 820,
930, I-354
Purpose
The purpose of this manual is to ensure that you carry out
the installation of a safe, effective, and trouble free
combustion system.
1
4
