Honeywell SmartValve Q3450A Product Data

System pilot burners
Hide thumbs

Advertisement

Quick Links

Q3450A,B,C,D,E,F,G and Q3480B,C
SmartValve
Q3480

DESCRIPTION

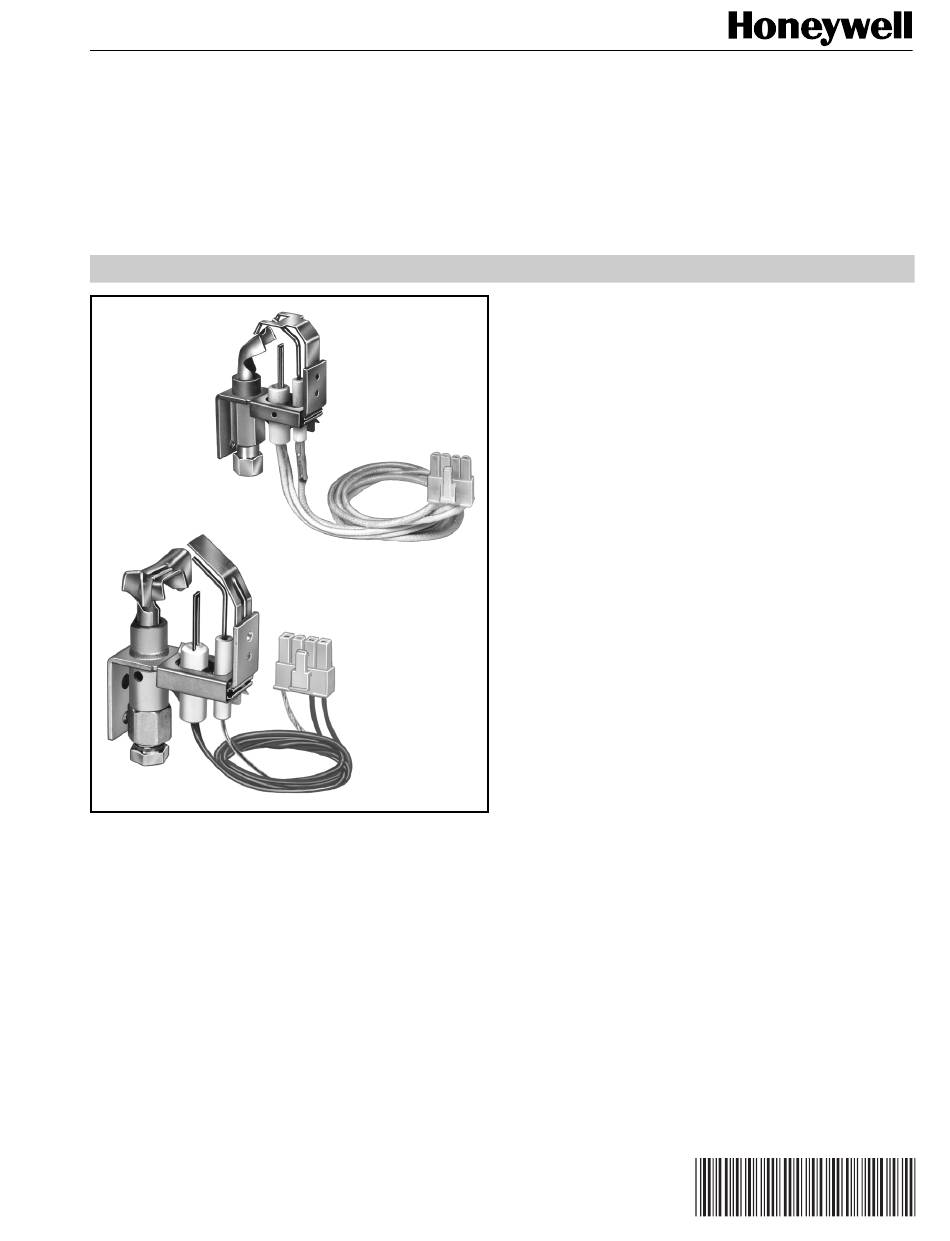

These SmartValve™ System pilot burners provide pilot flame
ignition and sensing for SV9500/SV9600 Systems. They
consist of replaceable igniter-flame rod assembly, bracket
assembly, pilot target, ground electrode, orifice assembly,
compression fitting and spring clip. The igniter lights the pilot
burner. The flame rod proves the pilot flame and the pilot
flame lights the main burner.
Copyright © 1995 Honeywell Inc. • All Rights Reserved
System Pilot Burners

FEATURES

• Used with SV9500/SV9600 SmartValve™ System.
• Replaceable Igniter-Flame Rod Assembly (Q3400A).
• Integral keyed plug provides quick, convenient
• Q3450 has front or 20 degree right, left flame pattern.
• Q3480 has dual-wing flame pattern.
• Natural and LP gas orifices available.
• Variety of target styles available.
Q3450
• Variety of mounting brackets available.
Description .......................................................................... 1
Features .............................................................................. 1
Specifications ...................................................................... 2
Ordering Information ........................................................... 2
Installation ........................................................................... 6
Startup and Checkout ......................................................... 7
Service ................................................................................ 7
connection of igniter and sensor to SV9500/SV9600.
PRODUCT DATA
CONTENTS
68-0125-2

Advertisement

loading

  Related Manuals for Honeywell SmartValve Q3450A

  Summary of Contents for Honeywell SmartValve Q3450A

  • Page 1: Table Of Contents

    CONTENTS Description ................1 Features ................1 Specifications ..............2 Ordering Information ............2 Installation ................6 Startup and Checkout ............7 Service ................7 68-0125-2 Copyright © 1995 Honeywell Inc. • All Rights Reserved...
  • Page 2: Specifications

    Honeywell, 1885 Douglas Drive North Minneapolis, Minnesota 55422-4386 In Canada—Honeywell Limited/Honeywell Limitee, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9. International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France, Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
  • Page 3 ™ Q3450A,B,C,D,E,F,G AND Q3480B,C, SmartValve SYSTEM PILOT BURNERS 3/16 (5) DOWEL 23/32 7/16 (18) (11) (20) 3/16 (5) DOWEL 1-5/6 (46) 2 (52) 1-5/6 (46) 1-2/3 1-1/2 (42) 1-1/3 (38) (35) 5/16 1/2 (13) (16) 3/16 (5) 7/16 (10) (11) 1 (26) 3/16 (5) DOWEL 3/16 (5) DOWEL...
  • Page 4 ™ Q3450A,B,C,D,E,F,G AND Q3480B,C, SmartValve SYSTEM PILOT BURNERS 3/16 (5) DOWEL 3/16 (5) DOWEL 7/16 7/16 (11) (11) (20) (20) 1-4/5 (45) 2-1/5 (56) 1-2/3 1-2/3 (42) (42) 1-1/3 1-1/3 (35) (35) 5/16 5/16 (16) (10) (10) 3/4 (19) 1 (26) 3/4 (19) 3/16 (5) DOWEL 7/16...
  • Page 5 ™ Q3450A,B,C,D,E,F,G AND Q3480B,C, SmartValve SYSTEM PILOT BURNERS 3/16 (5) DOWEL (13) (13) (25) (25) 1-5/6 (46) 1-5/6 (46) 1-4/5 1-4/5 (45) (45) 2-1/10 (53) 2-1/10 (53) 3/16 (5) 3/16 (5) DOWEL DOWEL 1/2 (13) 1/2 (13) 3/16 (5) 3/16 (5) 7/16 7/16 (11)
  • Page 6: Installation

    ™ Q3450A,B,C,D,E,F,G AND Q3480B,C, SmartValve SYSTEM PILOT BURNERS INSTALLATION When Installing this Product… Read these instructions carefully. Failure to follow instructions can damage product or cause a hazardous PILOT BURNER PILOT BURNER condition. PILOT BURNER TOO HIGH TOO LOW JUST RIGHT Check ratings given in instructions and on product to make sure product is suitable for your application.
  • Page 7: Startup And Checkout

    ™ Q3450A,B,C,D,E,F,G AND Q3480B,C, SmartValve SYSTEM PILOT BURNERS PROPER FLAME 3/8 INCH ADJUSTMENT (10 mm) SENSOR PILOT BURNER BODY ON BRACKET OF PILOT BURNER IGNITER COMPRESSION FITTING M9049 BREAKS OFF AND CLINCHES TUBING AS NUT IS TIGHTENED Fig. 8. Sensor tip must be in pilot flame. SERVICE TIGHTEN NUT ONE TURN BEYOND FINGER TIGHT...
  • Page 8 The pilot should light and then the main burner should light. Home and Building Control Home and Building Control Helping You Control Your World Honeywell Inc. Honeywell Limited 1985 Douglas Drive North 155 Gordon Baker Road Golden Valley, MN 55422...
