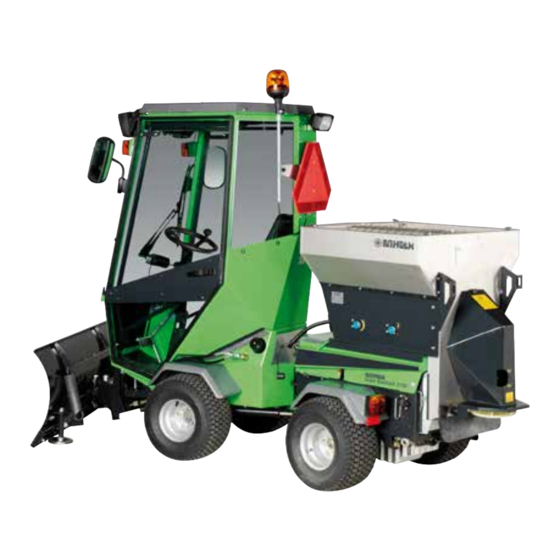

Egholm Park Ranger 2150 Operator's Manual
Salt and sand spreader
Hide thumbs
Also See for Park Ranger 2150:
- Operator's manual (68 pages) ,
- Operator's manual (52 pages) ,
- Operator's manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Egholm Park Ranger 2150
Summary of Contents for Egholm Park Ranger 2150
- Page 1 Operator´s manual Salt and sand spreader Park Ranger 2150...
- Page 2 Introduction Dear Customer Congratulations with your Egholm product The Park Ranger 2150 is a Danish designed and manufactured product, which offers a very flexible way of maintaining areas. Optimal use of your Park Ranger 2150 salt and sand spreader To ensure optimal performance of your Park Ranger 2150 salt and sand spreader, please read this manual carefully before using the machine.
-
Page 3: Table Of Contents
5.1 Wearing parts - Park Ranger 2150 salt and sand spreader ...... -
Page 4: General Information
General information... -
Page 5: Safety
Avoid blows from the lever when fitting the spreader Avoid blows from the lever when lowering the spreader. Keep a firm grip on the lever until the spreader rests safely on the machine. (Picture 4) Lever Operator’s Manual Park Ranger 2150 Salt and sand spreader... - Page 6 Make sure you are fully familiar with the warning labels on the guard. (Pictures 2-4) The deflector plate Keep away from the deflector plate when the machine is in use. Operator’s Manual Park Ranger 2150 Salt and sand spreader...
-
Page 7: Ec Declaration Of Conformity For Machinery
· has been manufactured in conformity with the provisions of the Machinery Directive 2006/42/EU The Park Ranger 2150 fitted with the FH 2100 cab (ROPS approved) · has been tested at the Danish Institute of Agricultural Sciences at Bygholm in conformity with directive 86/298/EEC concerning rear mounted, roll-over protection structures of narrow-track wheeled agricultural and forestry tractors. -
Page 8: Technical Data
89 kg Weight Roller stand 31 kg Tank volume 210 L Spread width 1 - 5 m Loading height 1,250 mm Technical data Type 2150SG Specifications may be changed without prior notice. Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 9: Operator's Manual
Operator´s manual... -
Page 10: Assembly Of The Roller Stand
C) Press down the lever, the barb releases the locking pawl and allows the salt and sand Lower the salt and sand spreader spreader to be lowered onto the basic unit. (Picture 3+4) Locking handle Operator’s Manual Park Ranger 2150 Salt and sand spreader... - Page 11 Reverse the above procedure. Caution! Make sure that all hydraulic hoses (and the electrical plug) are disconnected and that they are not caught in something when driving away from the salt and sand spreader. Operator’s Manual Park Ranger 2150 Salt and sand spreader...
-
Page 12: Start-Up
Operator’s manual 2.3 Start-up Start the basic unit. Then place lever C in the bracket. (Picture 1) Before start-up, make sure the rear guard is positioned correctly. Bracket Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 13: Adjustment
Turn the knob clockwise to increase the amount Spread pattern spread to the left. Turn the knob counter-clockwise to increase the amount spread to the right. For additional details about spread settings, see the enclosed spreading chart. Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 14: Assembly/Disassembly Of The Stirrer System
The stirrer system can now be removed. Be aware of the now unfastened sleeves! Assembling the stirrer system Reverse above procedure. Do not forget the two sleeves! Bolts, nuts, sleeves, etc. Sleeves, etc. Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 15: Important
The maximum load on the salt and sand spreader stored on the roller stand is 100 kg. For storage periods of less than a week, the maximum load is 300 kg. Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 16: Service And Maintenance
Service and maintenance... -
Page 17: Cleaning
(Picture 2) Remember to also clean the basic unit thoroughly. Clean Operator’s Manual Park Ranger 2150 Salt and sand spreader... - Page 18 F) Make sure to remove all salt residue etc. from the roller stand. G) As part of this procedure, make sure to check all nuts and bolts and tighten them if required. Operator’s Manual Park Ranger 2150 Salt and sand spreader...
-
Page 19: Conditions
Conditions... -
Page 20: Warranty
The warranty period for the materials and manufacture of this salt and sand spreader is 12 months from the date of purchase. In case of errors or defects on the machine within the warranty period, Egholm will carry out the necessary repairs at no charge to the customer, including materials and working hours, in accordance with the terms and conditions listed below. -
Page 21: Complaints
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the aforementioned parts have been removed, the machine is ready to be handed over to a local approved scrap merchants. Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 22: Wearing Parts
Wearing parts... -
Page 23: Wearing Parts - Park Ranger 2150 Salt And Sand Spreader
Wearing parts 5.1 Wearing parts - Park Ranger 2150 salt and sand spreader 01701510 Bearing 01701060 Flange bearing 40200580 Stirrer Operator’s Manual Park Ranger 2150 Salt and sand spreader... -
Page 24: Notes
Notes Operator’s Manual Park Ranger 2150 Salt and sand spreader... - Page 25 Notes Operator’s Manual Park Ranger 2150 Salt and sand spreader...
- Page 26 Egholm A/S Transportvej 27 7620 Lemvig, Denmark T.: +45 97 81 12 05 www.egholm.eu - info@egholm.dk...
