Installation of the board

5 INSTALLATION OF THE BOARD
i
IMPORTANT!
Do observe the safety precautions!
5.1

Opening the PC

♦ Switch off your PC and all the units connected to the PC
♦ Pull the PC mains plug from the socket.
♦ Open your PC as described in the manual of the PC manufacturer.
5.2

Selecting a free slot

♦ Insert the board into a free slot PCI 5 V or PCI 3.3 V (32-/64-bit).
Remove the back cover of the selected slot according to the instructions of
the PC manufacturer. Keep the back cover. You will need it if you remove
the board
♦ Discharge yourself from electrostatic charges.
♦ Take the board out of its protective pack.
16

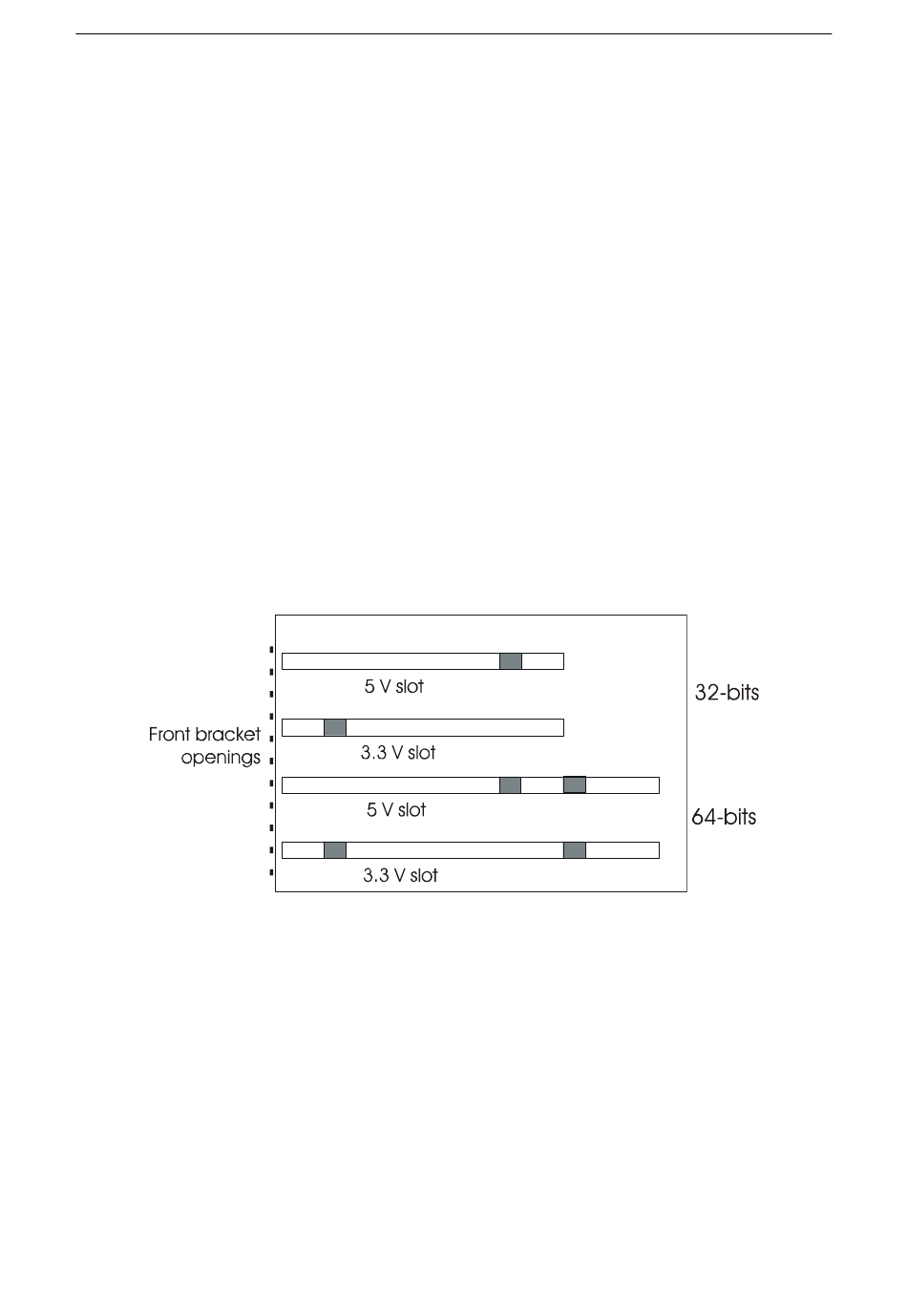

Fig. 5-1: PCI-5V slot (32-bit)

APCI-3xxx
