(II) Range
• Select the range of currents to be used for the measurement.
I. This defines the upper limit and accuracy of current measurements that can be performed by
the unit. The values for each range are given in Table 9.1.
II. The maximum current values for each range are also shown in the range selection box.
Table 9.1. Maximum current and accuracy for the different range settings for the Solar Cell I-V Test System.
Current Range Maximum
9.3.3 Device Details
(I) Pixel Switching
• Select 'Automated' in the pixel switching setting.
(II) Pixels to Test
• Select which pixels to measure.
I. The pixel numbers are labelled on the test board.
16
±150 mA
±20 mA
±2000 μA
±200 μA
±20 μA

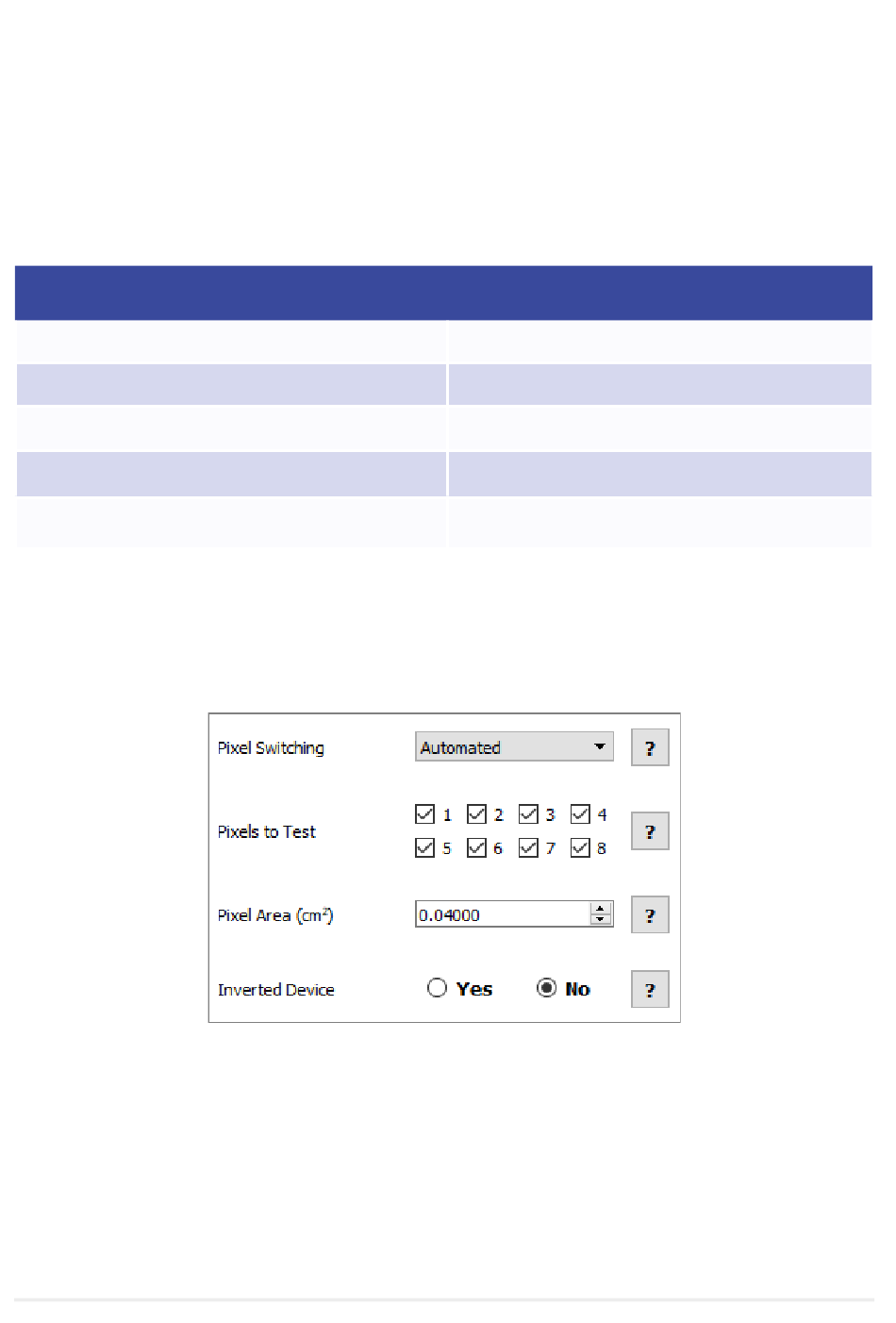

Figure 9.6. Device Details settings.
Accuracy
±200 μA
±10 μA
±1 µA
±100 nA
±10 nA
