PM100USB

5.2 Pin Assignment of the Sensor Connector

The PM100USB is capable to support custom made detectors. Please read care-
fully the following instruction prior to connecting a self made sensor.
pin
connection
3
AGND (analog ground): photodiode ground (anode), thermal and pyro
sensor ground
4
photodiode cathode
5
pyroelectric sensor +
8
thermal sensor +
7
PRESENT: Connect this pin via a 1kΩ – 10kΩ resistor to pin 3
(AGND) to enable a custom sensor
1
+5V (max. current 50mA from this pin)
6
DGND (digital ground)
9
n.c.
Warning
Pin 2 is uniquely used for the EEPROM Digital I/O (memory in Thorlabs sensor
heads) and MUST NOT be used. Connecting this pin may cause malfunction of
the PM100USB.
16

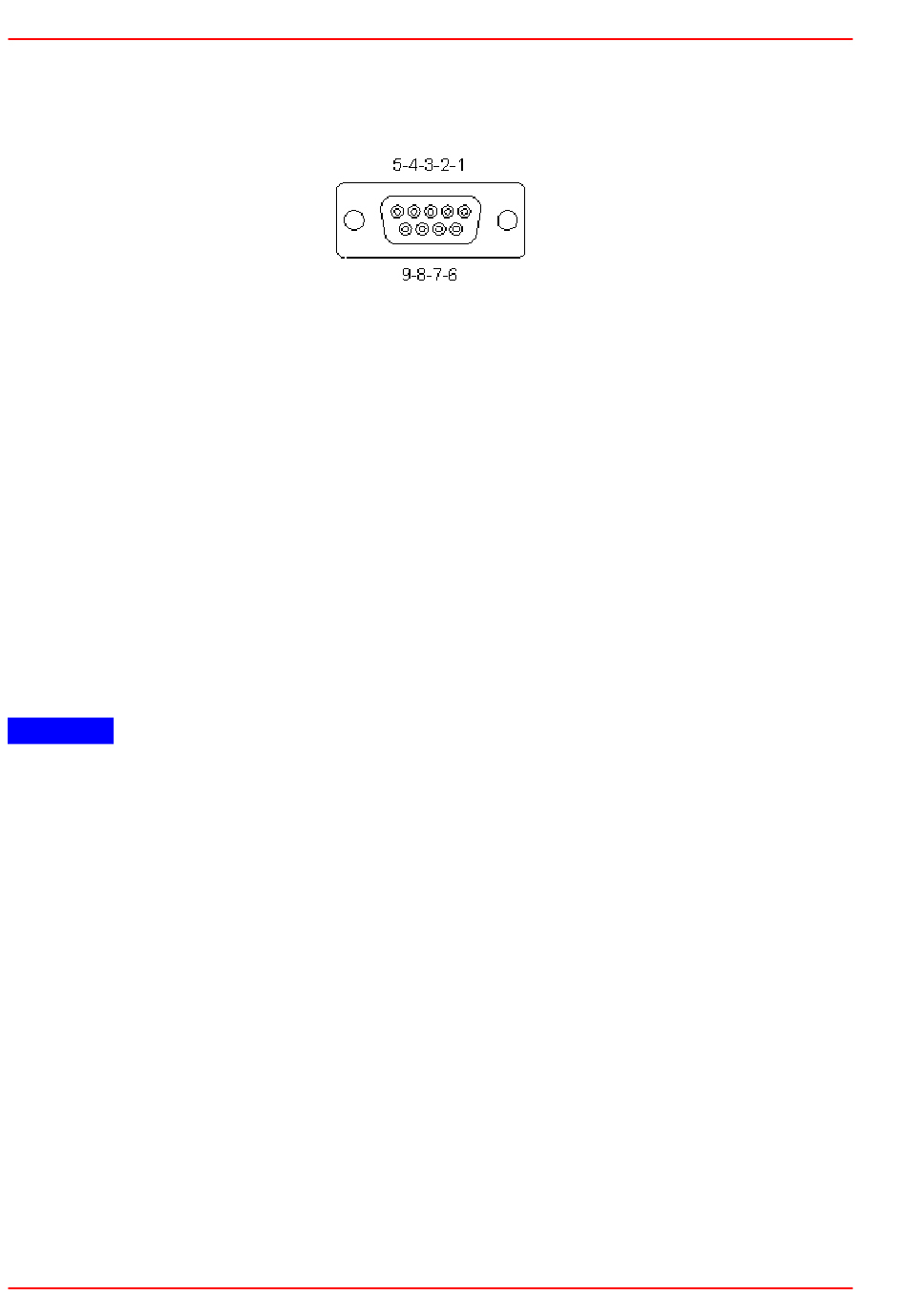

Pin-out of the 9pin DSUB
sensor connector (female)
© 2017 Thorlabs
