PM102x

4.2 Pin Assignment Output Connector

PM102: PM102 has a universal DA-15 connector. The Pins are assigned as follows:
Pin Function
1 +5...36VDC
2 I/O 1
3 I/O 2
4 POWER
5 X POS
6 Y POS
7 TxD
8 RxD
9 GND
10 GND
11 GND
12 GND
13 GND
14 N.C.
15 GND

4.3 Pin Assignment of the Sensor Connector

The sensor connector allows the access of all Thorlabs "C-type" thermal power sensors. The
power meter interface uses the sensor calibration data, stored in the sensor connector, to cal-
culate the corresponding actual power levels.
Additionally, the PM102x is capable to support custom made detectors. Please read the follow-
ing instruction prior to connecting a self made sensor.
Note:
The PM102 features an amplifier after each Thermal Sensor Input port TH1, TH2, TH3, and
TH4 (Pins 4, 5, 8, and 9). All 4 amplifiers are always on the same range.
Warning
Pin 2 is uniquely used for the EEPROM Digital I/O (memory in Thorlabs sensor heads) and
MUST NOT be used. Connecting this Pin may cause malfunction of the PM102x.
19
Description
Pin for Alternative Power Supply with 5 VDC to 36 VDC
General Digital Input / Output port; 3 V logic (Output), 5 V tolerant for In-
put
General Digital Input / Output port; 3 V logic (Output), 5 V tolerant for In-
put
Software Configurable Analog Output; 0 V to 2.5 V
Software Configurable Analog Output for X-Position; -2.5 V to 2.5 V
Software Configurable Analog Output for Y-Position; -2.5 V to 2.5 V
RS232; Connect to PC terminal RxD (PC DE-9 Pin2)
RS232; Connect to PC terminal TxD (PC DE-9 Pin3)
Power Supply Ground
Ground
Ground
Ground
Ground
NTC Thermistor Input; Measurement Range 0.1 kW to 100 kW
RS232 Signal Ground; Connect to PC Terminal Ground (PC DE-9 Pin5)

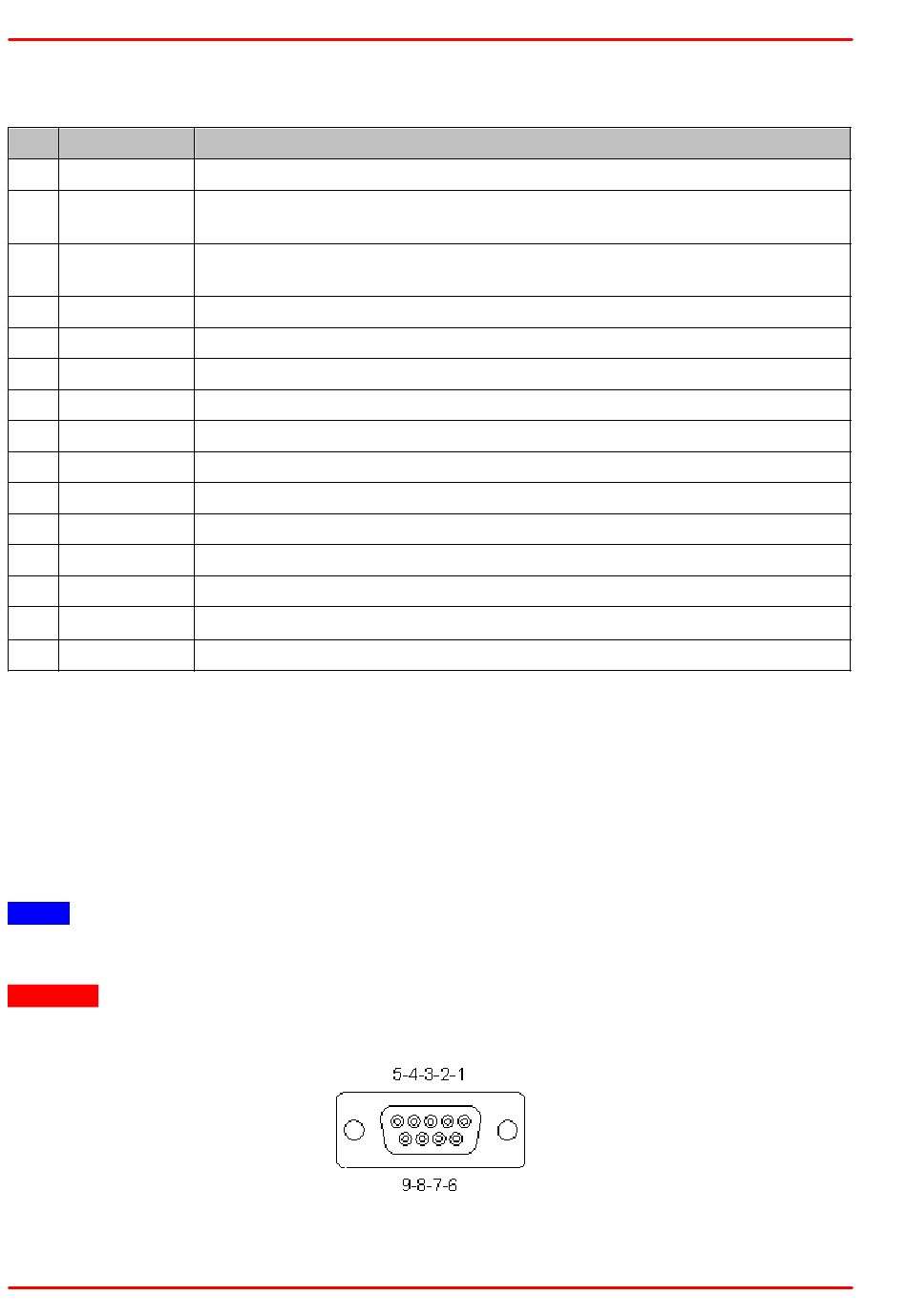

Pin-out of the DE-9 female
connector (female)
