Hanil Component wR Quick Manual

Quick Guide
Display & Control Panel
Display Screen Setting Speed
Status of RPM / RCF / Time / Press once : Setting RPM
Temperature / Rotor ID / Press twice : Setting RCF
ACC / DEC / Program
Setting ACC / DEC Rate
ACC (0 ~ 9 steps, Max.9)
DEC (0 ~ 9 steps, Natural DEC.0)
Setting Run Parameters
(RPM / RCF / Time / Temperature / ACC / DEC)
Press a parameter Enter the desired values
to be changed on the keypad
Enter the desired speed
(See 'Setting Run Parameters')

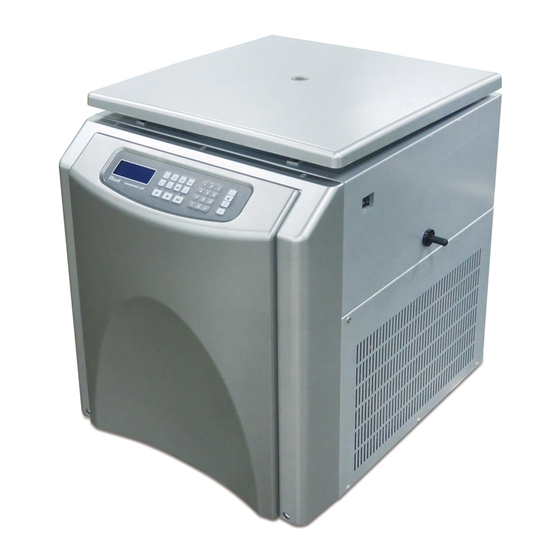

Component wR
Cat. No. : CP-wR
Setting Time
Up < 100 hr
Continuous run (00:00)
xg
Start
Setting the Rotor ID manually
Enter the rotor ID. manually, when
rotor id is not identified automatically
Press the
Enter button
Pulse
Press the
Pulse button
Serial No.
Setting Temperature
Setting temperature ( -20℃ ~ 40℃)
Setting temp. limit
1
4
PULSE
7
±
Stop
Lid Open
Pulse
After reaching the set
speed, the centrifugation
is decelated and stopped
Saving / Calling Up a Program
Press the Enter the desired
Save or call button program number on
Setting Temp. Limit
Press the Enter the desired
Temp. limit button temperature range
on the keypad
Temperature range that stops operation when the temperature
is lower or higher than the set temperature.
Installation Date
Max. RPM : 4,500 rpm
Max. RCF : 5,096 xg
View Settings
Verifying the setting
parameters during
centrifugation
2 3
VIEW
SETTINGS
5 6
8 9
0
Program Save / Call
Saving a program
(up to 100)
Calling up a program
Press the
Enter button
the keypad
Press the
Enter button
