PCI-AIO05
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.

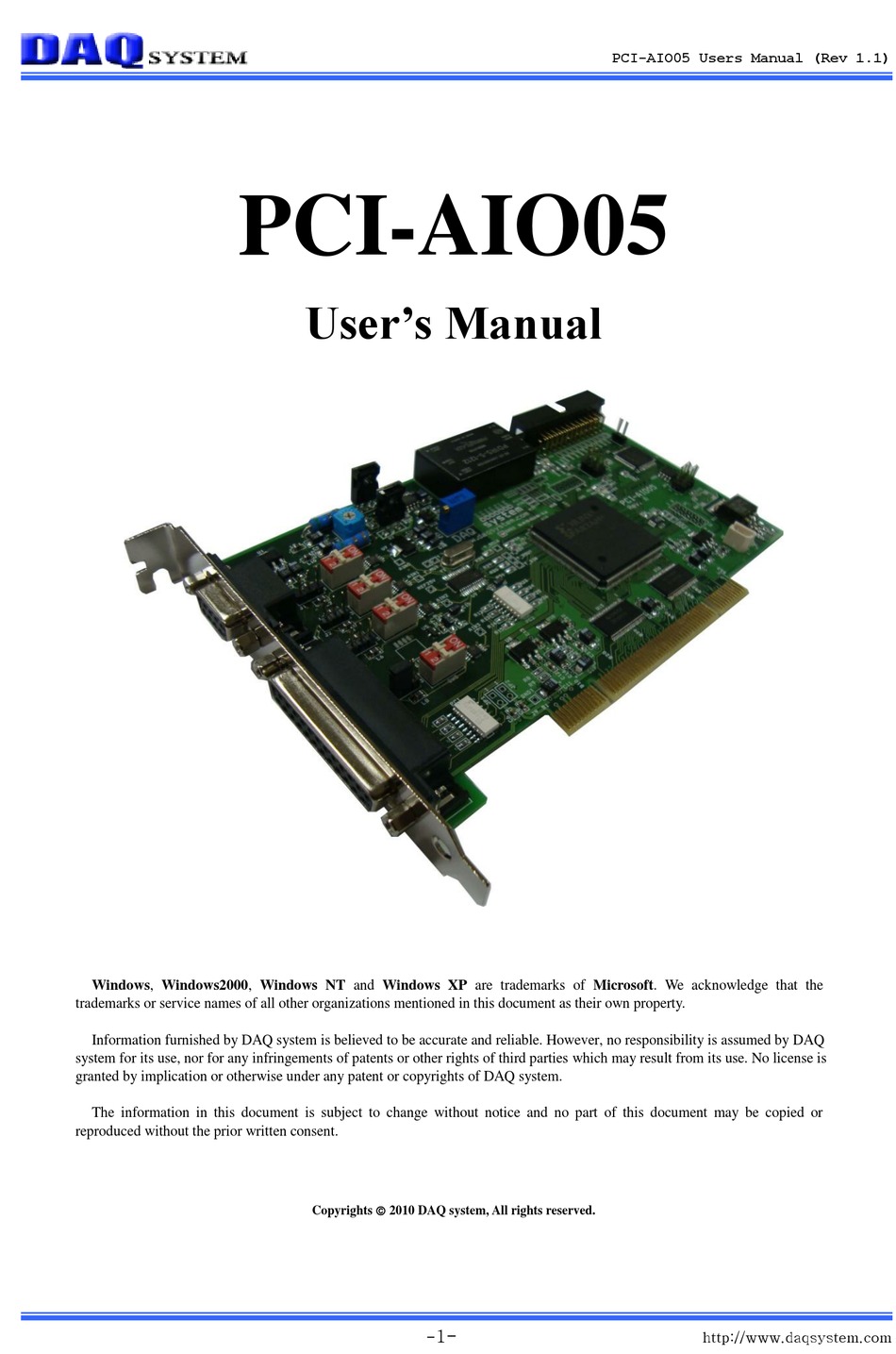

User's Manual
Copyrights  2010 DAQ system, All rights reserved.
1-
-
PCI-AIO05 Users Manual (Rev 1.1)
http://www.daqsystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-AIO05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAQ system PCI-AIO05

Summary of Contents for DAQ system PCI-AIO05

  • Page 1 Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ system.

  • Page 2: Table Of Contents

    PCI-AIO05 Users Manual (Rev 1.1) CONTENTS PCI-AIO05 Block Diagram Connecter Pin Map Switch Setup 3-1. Board Address Setup 3-2. Analog Input Amplification Setup 3-3. Analog Input Mode Selection Analog Input Connection 4-1. Unbalance Input 4-2. Balance Input Digital Input/Output Feature 5-1.
  • Page 3 PCI-AIO05 Users Manual (Rev 1.1) UPDATE HISTORY 2010-11-05 API Function Add GetBoardVersion() 2011-07-04 7. Installation Add 8. Sample Program Add http://www.daqsystem.com...

  • Page 4: Pci-Aio05 Block Diagram

    ADC 4ch 16/24bit Resolution [Figure 1-1. PCI-AIO05 Internal Block Diagram] The PCI-AIO05 is a board having the multi functions of Input/Output PCI board with the 16/24-bit ADC 4 channels and 4-bit DIO function.. PCI 32-bit, 33MHz 5/3.3V Compatible Target Board 4-Ch 16/24-비트...

  • Page 5: Connecter Pin Map

    PCI-AIO05 Users Manual (Rev 1.1) 2. Connector Pin Map The D-SUB 9pin and 25pin connector which was fixed to standard PCI Bracket is used for Analog and Digital signal Input/Output. [Figure 2-1. PCI-AIO05 PCI Bracket] http://www.daqsystem.com...
  • Page 6 PCI-AIO05 Users Manual (Rev 1.1) 2-1. D-sub 25핀 REF+ REF- AIN1+ AIN1- A+10V AGND REF+ REF- AIN2+ AIN2- A+10V AGND REF+ REF- AIN3+ AIN3- A+10V AGND EOUT3 EOUT2 EOUT1 EIN3 EIN2 EIN1 DGND [Figure 2-2. PCI-AIO05 D-sub25 Connecter Pin] http://www.daqsystem.com...
  • Page 7 PCI-AIO05 Users Manual (Rev 1.1) [Table 1. PCI-AIO05 D-sub 25 Pin Connecter Description] Pin# Pin Name Description Remark DGND Digital Ground Ground EIN2 Digital Input Channel 2 EOUT1 Digital Output Channel 1 Open-Collector EOUT3 Digital Output Channel 3 Open-Collector A+10V...
  • Page 8 PCI-AIO05 Users Manual (Rev 1.1) 2-2. D-sub 9 Pin [Table 2. PCI-AIO05 D-sub 9 Pin Connecter Description] Pin# Pin Name Description Remark REF+ Load Cell Reference Power +5V Output REF- Load Cell Reference Power -5V Output AIN0+ Analog Input Port 0, Positive Signal...

  • Page 9: Switch Setup

    PCI-AIO05 Users Manual (Rev 1.1) 3. Switch Setup 3-1. Board Address Setup If mounting works in one system that a lot of I/O ports are required, several AIO series boards are classified according to each board address. Distribution of each board sets it up through 4 pin DIP switch (SW6). A system is designed of maximum four boards at the same time so as usable.

  • Page 10: Analog Input Mode Selection

    PCI-AIO05 Users Manual (Rev 1.1) 3-3. Analog Input Mode Selection An Input signal is possible to use Differential (Balance, DI) and Single-ended (Unbalance, SE) input. According to AIN0~AIN3 signals, the input type select by switch J1~J4 setup. J1~4 Jumper Setup...

  • Page 11: Analog Input Connection

    PCI-AIO05 Users Manual (Rev 1.1) 4. Analog Input Connection 4-1. Unbalance Input J1~4 Jumper Setup ADC CH0-3 Sensor [Figure 4-1. Analog SE (Single Ended) Input Connection] An analog SE connection connects a signal to a Positive port, a ground to a Negative port. And, a J1~J4 connecter of board connects like Figure 4-1.

  • Page 12: Digital Input/Output Feature

    PCI-AIO05 Users Manual (Rev 1.1) 5. Digital Input/Output Featues 5-1. Input +3.3V +12VPCI 4.7K EIN0 DIN0 +3.3V 4.7K DIN3 EIN3 [Figure 5-1. Digital Input] External Digital Input Signal (EINx) get a isolated logic signal as separated with Photo- Transistor like Figure 5-1.

  • Page 13: Conversion Time Setup

    PCI-AIO05 Users Manual (Rev 1.1) 6. Conversion Time Setup Inside AD Converter have a digital filter. The filter characteristic by filter word (FW) is different. Have a good noise characteristic and effective bit that had better use a lot of FW, but time to get outside data is required very much.

  • Page 14: Installation

    2. CD (Driver/Manual/API/Sample Source etc.) 7-2. Installation Sequence To install your PCI-AIO05 board in your PC, follow the steps described in the document “How to install PCI DAQ Board” provided by DAQ System. If the document is missing, you can get it from www.daqsystem.com.
  • Page 15 PCI-AIO05 Users Manual (Rev 1.1) If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the figure.
  • Page 16 PCI-AIO05 Users Manual (Rev 1.1) If the installation is completely finished, you can show below message window. http://www.daqsystem.com...
  • Page 17 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-AIO05] If you can see the “PCI-AIO05” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle) Notice : After installation, you should re-boot the system for the proper operation.

  • Page 18: Sample Program

    PCI-AIO05 Users Manual (Rev 1.1) 8. Sample Program DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board.
  • Page 19 The ADC input of Select Channel read a data once. (3) „CheckChState‟ Button Check the ADC channel state. (4) Set Conversion Time Conversion time set up. (Refer to Table 3) (5) Select Channel Write the ADC channels. The PCI-AIO05 channel numbers are from 0 to 4. http://www.daqsystem.com...
  • Page 20 PCI-AIO05 Users Manual (Rev 1.1) (6) Select Range Set up the ADC input range per channel. (0 to 5, ±5, 0 to 10V, ±10V)) (7) Average Numbers It designate the data number that a moving average is applied to 0 ~ 255.
  • Page 21 PCI-AIO05 Users Manual (Rev 1.1) (4) AVG, MAX, MIN, DIFF Display the AVG(Average), MAX(Maximum), MIN(Minimum), DIFF(MAX - MIN) of selected channel. (5) „Clear‟ Button Clear the AVG, MAX, MIN, DIFF value. 8.4 DIO Function (1) DIO Auto Read Automatic read DIO value.
  • Page 22 PCI-AIO05 Users Manual (Rev 1.1) References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. General information on PCI board API -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5.
  • Page 23 PCI-AIO05 Users Manual (Rev 1.1) http://www.daqsystem.com...
