PCIe-DIO6400
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.

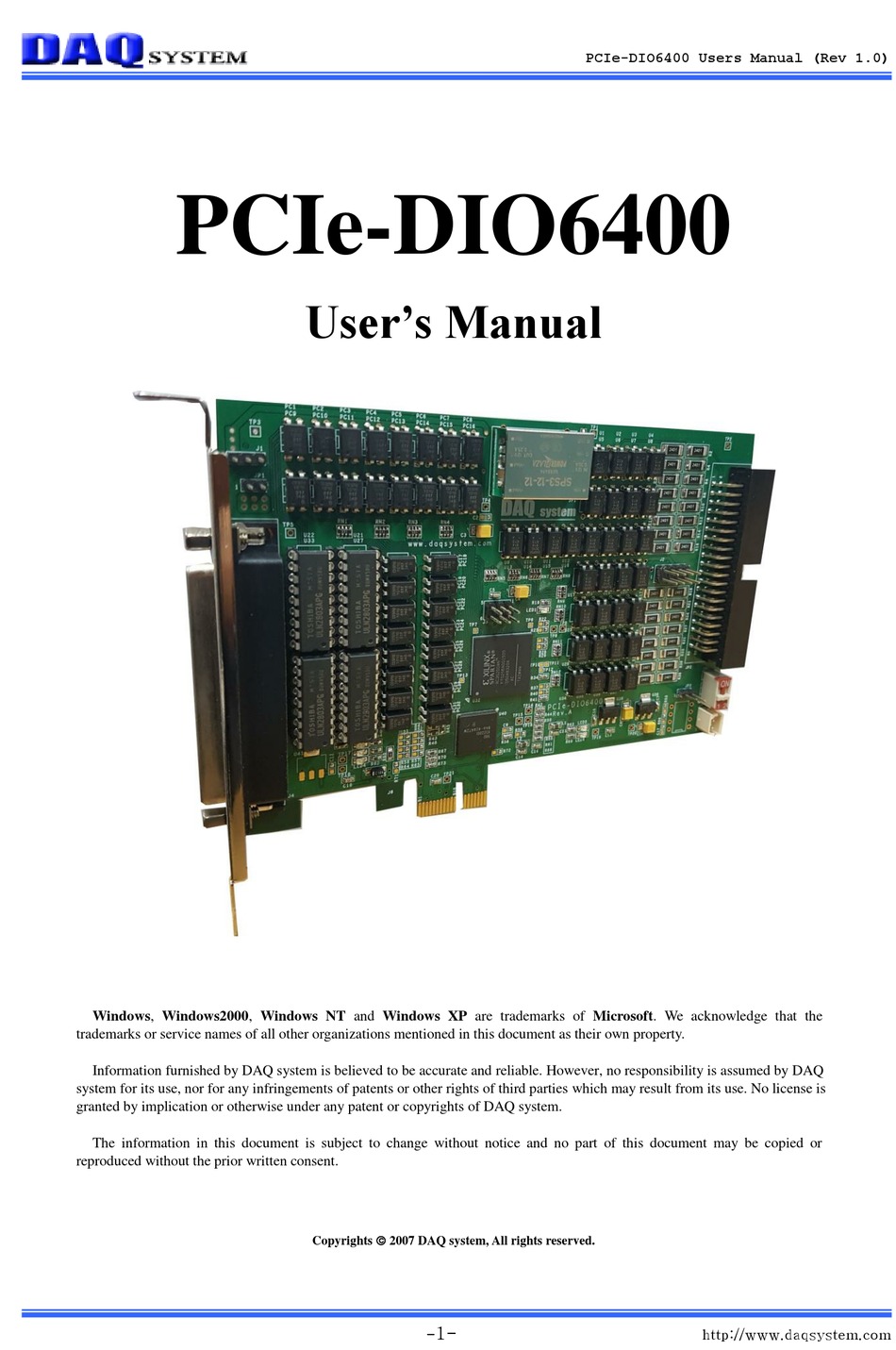

User's Manual
Copyrights 2007 DAQ system, All rights reserved.
1-
-
PCIe-DIO6400 Users Manual (Rev 1.0)
http://www.daqsystem.com
Advertisement
Table of Contents
Related Manuals for DAQ system PCIe-DIO6400
Summary of Contents for DAQ system PCIe-DIO6400
- Page 1 Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ system.
-
Page 2: Table Of Contents
PCIe-DIO6400 Users Manual (Rev 1.0) Contents PCIe-DIO6400 Block Diagram Connector Pin Map Digital Input Circuit Digital Output Circuit External Connection (INPUT) External Connection (OUTPUT) Board Option Setup Installation Sample Program Explanation References http://www.daqsystem.com... -
Page 3: Pcie-Dio6400 Block Diagram
Module IO Decoder 32bit Input [Figure 1-1. PCIe-DIO6400 Internal Block Diagram] The PCIe-DIO6400 is designed for high performance digital logger with Express PCI x1 Interface. It has two Isolated 32 Digital Input/Output port for external interface like Figure 1-1. http://www.daqsystem.com... -
Page 4: Connector Pin Map
PCIe-DIO6400 Users Manual (Rev 1.0) 2. Connector Pin Map The PCIe-DIO6400 board is equipped with 37 pin D-SUB connector for external digital output in standard Express PCI Bracket. Figure 2-1 shows the bracket and connector of the board. POWER DOUT31... - Page 5 PCIe-DIO6400 Users Manual (Rev 1.0) DOUT10 Isolated Digital Output 10 DOUT12 Isolated Digital Output 12 DOUT14 Isolated Digital Output 14 GROUND External Ground GROUND External Ground DOUT16 Isolated Digital Output 16 DOUT18 Isolated Digital Output 18 DOUT20 Isolated Digital Output 20...
- Page 6 DIN25 DIN26 DIN27 DIN28 DIN29 DIN30 DIN31 IN_POWER [Figure 2-2. PCIe-DIO6400 BOX 40 Pin Connector] [Table 2. PCIe-DIO6400 DIN Connector (HIROSE HIF3F-40PA-2.54DS) Pin Description] Pin# Pin Name Description Remark DIN0 Isolated Digital Input 0 DIN1 Isolated Digital Input 1 DIN2...
- Page 7 PCIe-DIO6400 Users Manual (Rev 1.0) DIN8 Isolated Digital Input 8 DIN9 Isolated Digital Input 9 DIN10 Isolated Digital Input 10 DIN11 Isolated Digital Input 11 DIN12 Isolated Digital Input 12 DIN13 Isolated Digital Input 13 DIN14 Isolated Digital Input 14...
-
Page 8: Digital Input Circuit
PCIe-DIO6400 Users Manual (Rev 1.0) 3. Digital Input Circuit IN_COM0 2.4K DIN0 2.4K DIN1 2.4K DIN7 [Figure 3-1. Digital Input Circuit] Figure 3-1 shows that digital input is isolated by photo-coupler. When applying plus(+) voltage to “IN_COM0”, and applying minus(-) voltage to digital input(DIN0 ~ DIN7), the current is flowing through diode in the inside to photo-coupler and an output direction transistor is applied an electric current according to flow electric current. -
Page 9: Digital Output Circuit
PCIe-DIO6400 Users Manual (Rev 1.0) 4. Digital Output Circuit OUT_POWER OUT_VDD +3.3V DOUT0 out0 DOUT1 out1 DOUT31 out31 [Figure 4-1. Digital Output Circuit] Figure 4-1 shows that the digital output is isolated by photo-coupler. The “OUT_POWER” is connected commonness to an output circuit. "OUT_POWER" is an external power supply or 5V PCI or ISO 5V (DC-DC output power) inside the board, depending on the jumper setting of connector J2. -
Page 10: External Connection (Input)
PCIe-DIO6400 Users Manual (Rev 1.0) 5. External Connection (INPUT) IN_COM0~3 POWER [Figure 5-1. Input Port External Connection] Ordinary noise and ground issue can occur if industry equipments operate to connect each other. In ways to solve these issues, it use the isolated connection way that it was completely cut electrically off. -
Page 11: External Connection (Output)
PCIe-DIO6400 Users Manual (Rev 1.0) 6. External Connection (OUTPUT) PCIe-DIO6400 DC-DC OUT_POWER PCI +3.3V DOUT 31 - 0 OUT31-0 GROUND GROUND [Figure 6-1. Output Port External Connection] The OUTPUT can use to select the external power or internal power. When use the external power, perfect isolated input works if you shall not connect a jumper J1. -
Page 12: Board Option Setup
PCIe-DIO6400 Users Manual (Rev 1.0) 7. Board Option Setup DC-CD POWER Converter GROUND [Figure 7-1. PCIe-DIO6400 Appearance] 7-1. Power Option Setup If usable environment don’t use external power, it can use at boards which it supplied the power. At this time it can set up by jumper whether or not output to power of isolated DC-DC Converter (option) or output to power of PC Internal Power (+5V). - Page 13 PCIe-DIO6400 Users Manual (Rev 1.0) 7-2. Board Address Setup Several DIO6400 series boards classify each board address, you shall use it at systems that a lot of I/O ports was required. Distribution of each board sets it up through 4 pin switch (SW1) in a board. A system is designed of 4 maximum boards at the same time so as usable.
-
Page 14: Installation
PCIe-DIO6400 Users Manual (Rev 1.0) 8. Installation The installation order is as follows, explain Windows XP basis if there isn’t special explanation. (1) If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next”... - Page 15 PCIe-DIO6400 Users Manual (Rev 1.0) (3) When you click Next, the driver files are installed. (4) When the installation is complete, normally same as the picture below. http://www.daqsystem.com...
- Page 16 PCIe-DIO6400 Users Manual (Rev 1.0) (5) If the installation is completely finished, you confirm it in the following ways. Do the following steps to show up the “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-DIO6400] [Figure 8-2.
- Page 17 PCIe-DIO6400 Users Manual (Rev 1.0) [Figure 8-4. “Device Manager” window] If you can see the “PCI-DIO6400” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle) Notice : After installation, you should re-boot the system for the proper operation.
-
Page 18: Sample Program Explanation
9. Sample Program Explanation 9-1 Program Interface DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board. One of the execution file is “PCI_DIO6400.exe”. -
Page 19: Dout31
PCIe-DIO6400 Users Manual (Rev 1.0) 9-2 Function Explanation Name Description Note Model No Select the Model Name PCI-DIO6400 selection Board No Select the Board Number (Board#0 ~ #3) By SW1 Setup Open Device Open the selected Board List Device It displays a board number which installed in a Not Used currently. - Page 20 PCIe-DIO6400 Users Manual (Rev 1.0) References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. General information on PCI board API -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5.
