ADJUSTING TO BODY SIZE

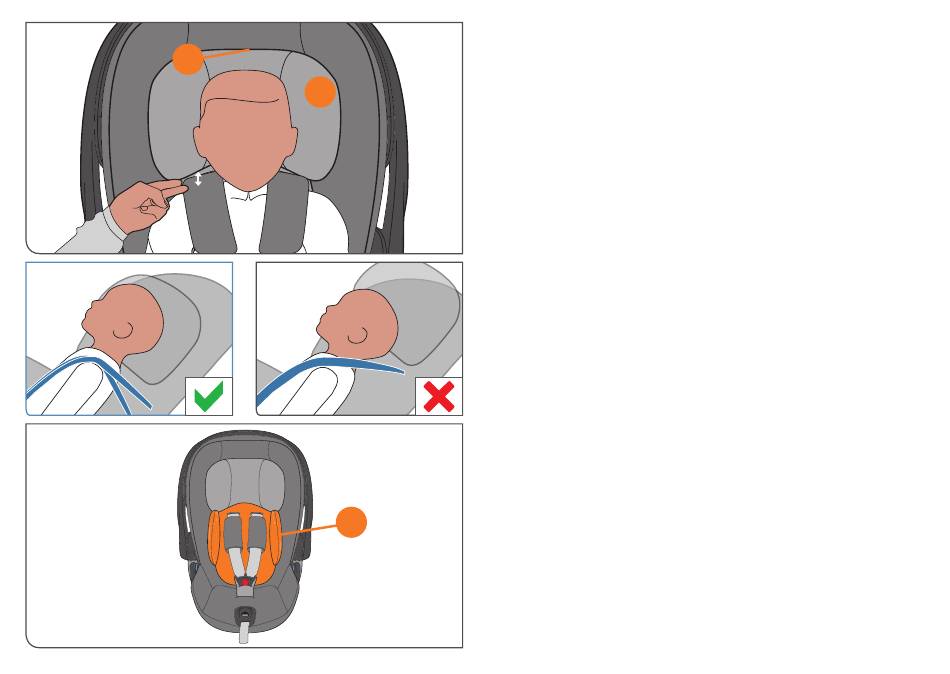

Adjusting the Headrest
NOTE! The newborn inlay protects your child. It must be used up to size
of 60 cm.
NOTE! The headrest (3) ensures the best possible protection for your
child only if it is adjusted to the optimum height. There are 11 height
positions that can be set.
• The headrest has to be adjusted in a way that the distance between
the child's shoulders and the headrest doesn't exceed 2 cm
(approx. 2 fingers width).
• Check the height of the Harness Straps: Position the Harness
Straps at or just below the child's shoulders for rear-facing use.
• Pull the adjustment handle (4) upwards to unlock the headrest (3).
Now you can adjust the headrest.
NOTE! The shoulder belts are firmly connected to the headrest and do
not have to be adjusted separately.
Removing the Newborn Inlay
The newborn inlay (5) may be removed after the baby is
61 cm (approx. 3 months) to provide more space for the child. To
remove the newborn inlay (5) open and remove the shoulder pads. Then
remove the newborn inlay and place the shoulder pads back on the
shoulder belts.
