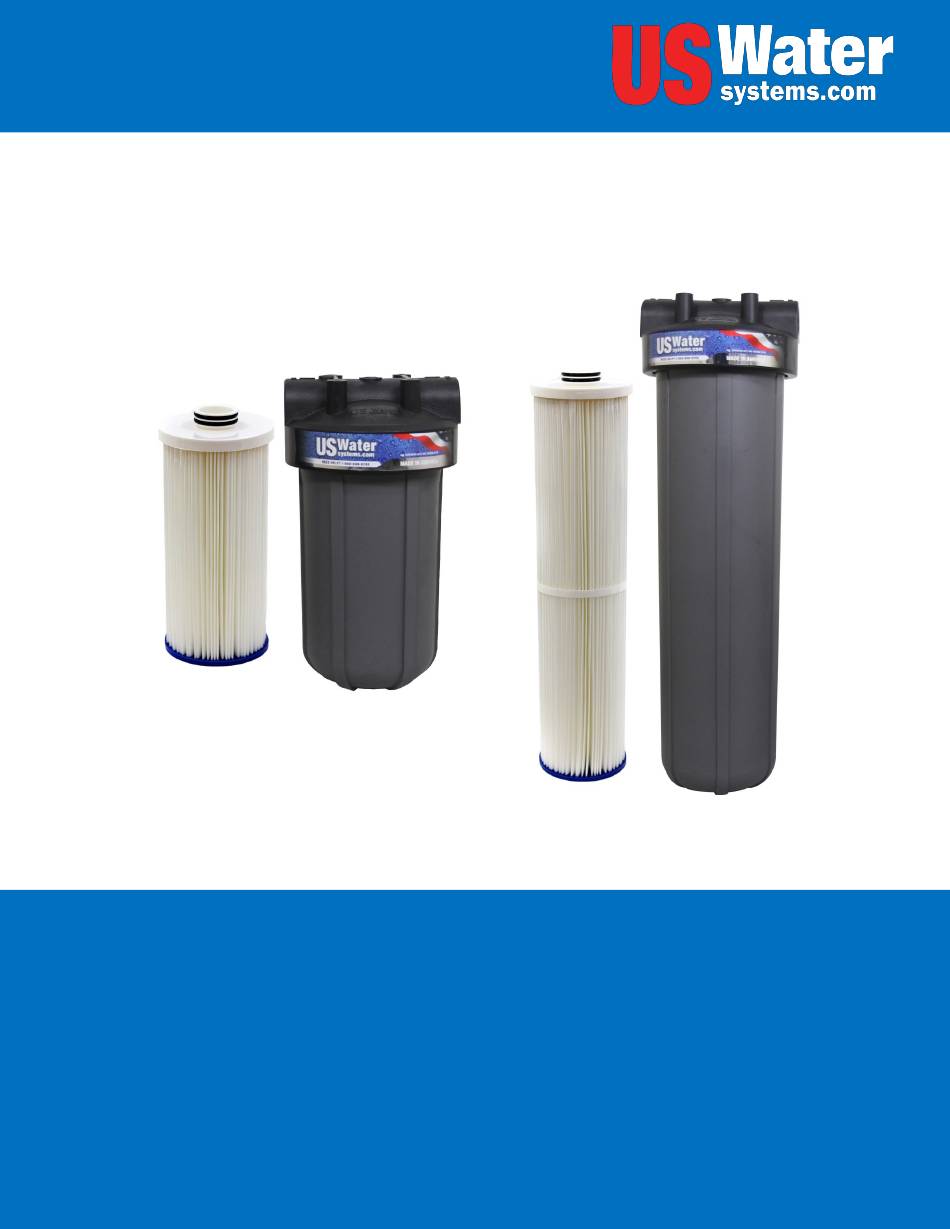

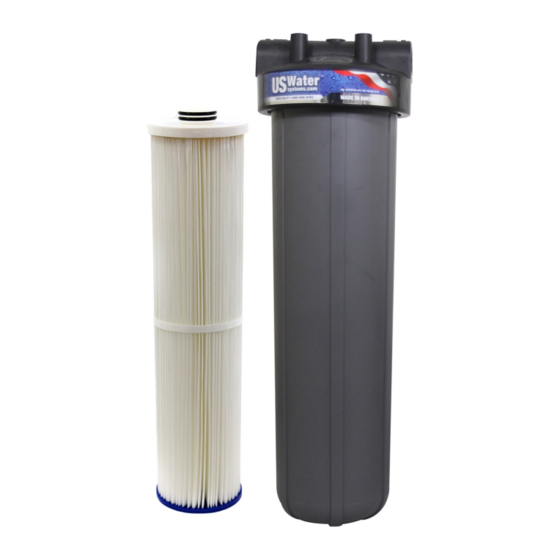

- Page 1 Visit us online at www.uswatersystems.com US Water Systems Interceptor Filter INTERCEPTOR Owners Manual 320-USP-DS-10, 320-USP-DS-20 US Water Systems Corporate Office 1209 Country Club Road Indianapolis, IN 46234 1-800-608-8792 REVISION # info@uswatersystems.com REVISION DATE October 10, 2018...
-
Page 2: Unpacking Inspection
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 to report any shipping damage within 24 hours of de- livery. Claims made after 24 hours may not be honored. -
Page 3: System Dimensions
System Dimensions... - Page 4 US Water Interceptor Filter Specifications and Operation US WATER ELECTRO-ABSORPTIVE NANOFIBER FILTER USES MECHANICAL FILTRATION AND ELECTRO-ADHESION UTILIZING CUTTING-EDGE TECHNOLO- The US Water Interceptor Pre-Filter has a 5 micron outer filter layer (which can be washed off if sediment accumulated). Inside the filter is another layer of pleat- ed material manufactured of Nano Alumina Fibers that have a Zeta potential of 51 millivolts.
-
Page 5: Maintenance
US Water Interceptor Filter Installation Instructions Maintenance The Interceptor Pre-filter can be installed for up to a year. The Interceptor filter should be changed annually or sooner depending on the water usage or water conditions. This systems performance is dependent upon incoming water quality and factors such as iron, sulfur, manganese, sediment and other particulates need to be addressed ahead of the US Water Interceptor Pre-Filter. - Page 6 US Water Filter Installation Instructions 1. Install the Interceptor system in the desired location in the water treatment system. Typically this will be the first component in the line of treatment. The cap is marked “IN” and “OUT” on the top of the housing. 2.
- Page 7 US Water Filter Installation Instructions 3. Install threaded nipples or other threaded fittings in the housing. Be sure to use Teflon tape on the fittings. Tighten them with channels locks. If flex pipes with rubber gaskets are used there is no need to Teflon tape the outer fittings. If a normal plumbing fitting is used then be sure to Teflon tape the outer fitting.
- Page 8 US Water Filter Installation Instructions 5. Shut off the water and release the water pressure at the lowest sink or spigot. Cut the pipe and connect it to the filter. Connect the inlet plumbing to the inlet on the filter housing . Tighten with channel locks.
- Page 9 US Water Filter Installation Instructions 1. Remove the sump from the filter housing and install the filter. A very small amount of sili- cone grease or water can be used to lubricate the O-rings on the filter. The filter housing cap has a coupling that will accept the o-ringed nipple on top of the filter.
- Page 10 US Water Filter Startup Instructions 1. Open a faucet or spigot down stream of the filter. Slowly open the water shutoff valve and let the filter fill Air will be pushed out of the filter through the open spigot or faucet down- stream.
- Page 11 US Water Filter Cartridge Replacement Instructions 1. Shutoff the water supply. 2. Open a faucet of spigot closest to the filter housing and allow all the water to empty from the plumbing system. WARNING! If the pressure is not released, the filter sump will be very difficult to get loose.
- Page 12 US Water Filter Cartridge Replacement Instructions 6. Remove the old filter and discard. 7. Lubricate the O-rings and install the new filter in the filter housing cap. 8. Lubricate the o-ring for the sump and lubricate the sump threads with food grade silicone grease.
- Page 13 US Water Filter Cartridge Replacement Instructions 9. Install the filter sump in the filter cap by turning it clockwise until it is hand tight. NOTE: The housing should spin tight fairly easily. If not, add more lubrication to the sump threads. This will aid with removing the sump when the filter needs to be replaced again.
-
Page 14: Warranty
GENERAL PROVISIONS residential place of installation of this US Water Water This warranty does not apply to any commercial or Conditioning System, US WATER SYSTEMS, INC. industrial installations or to any part of the water warrants the following: conditioner which has been subjected to misuse, neglect, alteration or accident;...
