US Water Systems Greenwave Edge 385-GWE-3 Owner's Manual

Salt-free water conditioner
Hide thumbs

Advertisement

Quick Links

Download this manual
Visit us online at
www.uswatersystems.com

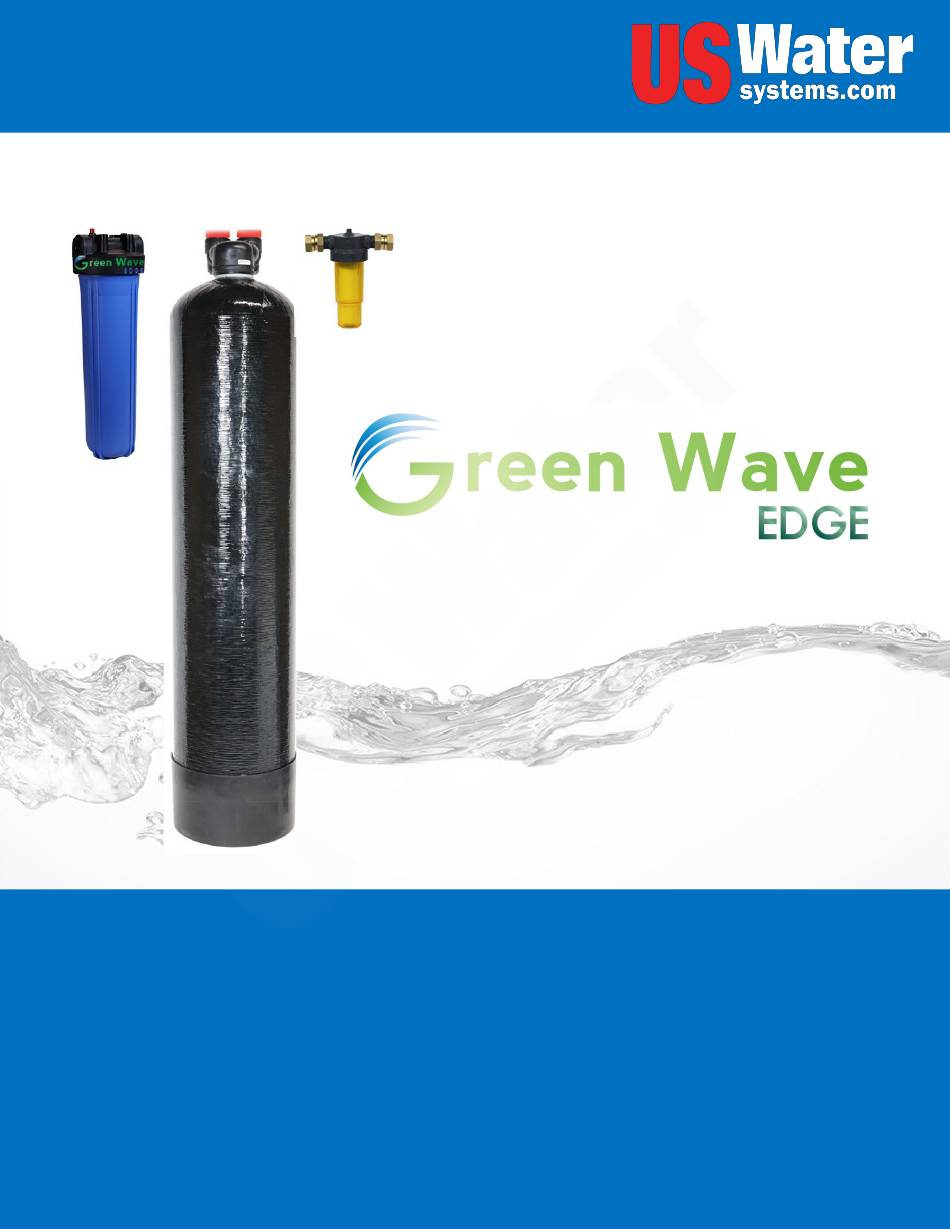

Greenwave Edge Salt-Free Water Conditioner
Owners Manual
Models:
385--GWE-3
REVISION #
1.0
REVISION DATE
May 18, 2016
Visit us online at www.USWaterSystems.com
GreenWave Water Conditioning System
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
Give us a call at: 1-800-608-8792

Advertisement

loading
Need help?

Need help?

Do you have a question about the Greenwave Edge 385-GWE-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for US Water Systems Greenwave Edge 385-GWE-3

Summary of Contents for US Water Systems Greenwave Edge 385-GWE-3

  • Page 1 Visit us online at www.uswatersystems.com GreenWave Water Conditioning System Greenwave Edge Salt-Free Water Conditioner Owners Manual Models: 385--GWE-3 US Water Systems Corporate Office 1209 Country Club Road REVISION # Indianapolis, IN 46234 REVISION DATE May 18, 2016 Visit us online at www.USWaterSystems.com...

  • Page 2: Table Of Contents

    Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact US Water Systems at 1-800-608-8792 or visit www.uswatersystems.com/returns to report any shipping damage within 24 hours of deliv- ery.

  • Page 3: Introduction

    GreenWave Water Conditioning System Introduction The new standard in salt free water conditioning technology brought by America’s Most Trusted Water Company. It prevents scale formation on plumbing and appliances while delivering softer skin and less soap usage. There is not a system on the market today that can prevent scale like the new Green Wave –...
  • Page 4 GreenWave Water Conditioning System How It Works The Green Wave Edge system starts with two high-flow filters - the first is s 5-micron pleated sediment filter which filters solids, particulate and sediment down to 5 microns, followed by a radial flow carbon filter which reduces chlorine, chemicals, tastes and odors. It then uses a unique and patented dosing system which adds a small amount silicopolyphosphate (a food grade material) to the water, effectively "sealing"...

  • Page 5: Proper Installation

    GreenWave Water Conditioning System Proper Installation This water conditioning system must be properly installed and located in accordance with the Installation Instructions before it is used or the warranty will be void. Do not install or store where it will be ex- posed to temperatures below freezing or ex- 38°...
  • Page 6 GreenWave Water Conditioning System An Important Note about Iron, Manganese & Copper Iron and Manganese Just as with conventional water softening media, the GreenWave water conditioning media needs to be protected from excess levels of certain metals that can easily coat the active surface, reducing its effectiveness over time. Public water supplies rarely, present a problem, but if the water supply is from a private well confirm that the levels of iron (Fe) and manganese (Mn) are 0.0 mg/ L respectively.
  • Page 7 GreenWave Water Conditioning System Equipment Specifications The GreenWave Carbon tank must be filled with gravel and media prior to installation. It is good practice to fill it with water and allow it to soak while the other components are installed. A simple inlet and outlet connection is all that is required for installation.
  • Page 8 GreenWave Water Conditioning System System Overview Filter Housing GreenWave GreenWave Module Carbon Tank Head Media Tank The Carbon Tank will be about 75-90% full of car- bon. Flow Direction Arrow GreenWave Cartridge Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792...
  • Page 9 GreenWave Water Conditioning System System Overview (Configuration) Outside Spigots & Irrigation Water Heater Well or City Water Supply Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792...
  • Page 10 GreenWave Water Conditioning System Filter Housing Installation 5 Micron Sediment Filter Installation Instructions 1. Install the 5 Micron sediment filter first. This filter should be installed at the point of entry of the home. The sediment filter is marked “IN” and “OUT” on the top of the housing. 2.
  • Page 11 GreenWave Water Conditioning System Filter Housing Installation 3. Now mount the filter housing to the wall using the appropriate fasteners for your wall materi- al. It is preferred that this is mounted on a secured board or wall stud as it will be heavy when full of water.
  • Page 12 GreenWave Water Conditioning System Sediment Filter Installation 1. Now install the filter in the filter housing by removing the sump from the housing. 2. There is a notch in the bottom of the sump that will center the filter in the housing. Unwrap the filter (5 Micron) and install it in the sump.
  • Page 13 GreenWave Water Conditioning System Sediment Filter Installation 4. Now install the sump in the filter cap and turn it clockwise to tighten the filter. Once it is hand tight, use the supplied wrench to tighten it an additional 1/4-1/2 turn. 5.

  • Page 14: Carbon Tank Preparation

    GreenWave Water Conditioning System Carbon Tank Preparation 1. Remove the tank head and make sure that the distributor tube (shipped inside the tank) is centered in the indentation in the bottom of the tank (use a flash- light if necessary). (Figure A). 2.
  • Page 15 GreenWave Water Conditioning System Greenwave Carbon Tank and GreenWave Module Installation 1. Make sure the GreenWave Carbon tank is on a level surface. Make sure the bypass valve is in the bypass position. 2. Install the inlet plumbing from the sediment filter outlet. The GreenWave carbon tank inlet is marked “Downflow Inlet”.

  • Page 16: Start Up

    GreenWave Water Conditioning System Start Up 5. Make sure that the carbon tank is on “bypass” - shown at the right. 6. Use the supplied wrench for the GreenWave module and remove sump. 7. Remove the GreenWave cartridge from the GreenWave module sump and put in a clean plastic bag for now.
  • Page 17 GreenWave Water Conditioning System Start Up 8. Re-install the sump on the module and make sure the O-ring is in place. Use the supplied wrench to snug the GreenWave module sump and open a faucet or spigot downstream. 9. Slowly open the supply valve (user supplied) to the GreenWave system. Allow water to fill the 5 micron sediment filter and pass through the bypass and GreenWave module.
  • Page 18 GreenWave Water Conditioning System Start Up 13. Shut off the water again and relieve the pressure at a faucet or spigot. 14. Once the pressure is relieved, use the supplied wrench to remove the GreenWave module sump and install the GreenWave cartridge back into the sump. Be sure the O-ring is in place and lubricated with food grade silicon grease or corn or vegetable oil.
  • Page 19 GreenWave Water Conditioning System 5 Micron Filter Replacement The 5 micron filter should be changed annually or sooner depending on the sediment in the feed water source. 1. Shutoff the water supply. 2. Open a faucet of spigot closest to the filter housing and allow all the water to empty from the plumbing system.
  • Page 20 GreenWave Water Conditioning System 5 Micron Filter Replacement 6. Remove the old filter and discard. 7. Install the new filter in the sump. 8. Lubricate the o-ring and sump threads with food grade silicone grease. Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792...
  • Page 21 GreenWave Water Conditioning System 5 Micron Filter Replacement 9. Install the filter sump in the filter cap by turning it clockwise until it is hand tight. NOTE: The housing should spin tight fairly easily. If not, add more lubrication to the sump threads.
  • Page 22 GreenWave Water Conditioning System 5 Micron Filter Replacement 11. Turn on the water supply and open a spigot downstream of the Big Blue filter to release the air. 12. Once the air has been released, push the red button on top of the filter housing to release any additional air in the filter housing.
  • Page 23 GreenWave Water Conditioning System GreenWave Module Replacement 1. Turn off the feed water and relieve the pressure at a faucet or spigot downstream. 2. Use the supplied wrench to remove the GreenWave module sump. 3. Remove the empty GreenWave cartridge from the GreenWave module sump and discard. 4.

  • Page 24: Warranty Conditions And Limitations

    6. Information, including model number, sales order number, and date of installation, must be provided for any claims pertaining to equipment in warranty. 7. Defective parts are subject to inspection by either US Water Systems, Inc. or any authorized representative before final commitment of warranty adjustment is made.
  • Page 25 GreenWave Water Conditioning System GreenWave Maintenance Schedule Component Description Frequency Sediment Filter Replace the sediment filter. Annually GW Carbon Tank Replace the GW carbon and gravel. 3-5 Years Replace GW Mod- Replace the GW cartridge as needed. Be sure to lubricate the O- As Needed ule Cartridge ring.
  • Page 26 GreenWave Water Conditioning System Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792...

  • Page 27: Carbon Media

    GreenWave Edge This warranty does not apply to any commercial or Water Conditioning System, US WATER SYSTEMS, INC. industrial installations or to any part of the water conditioner which has been subjected to misuse, neglect, warrants the following: alteration or accident;...
