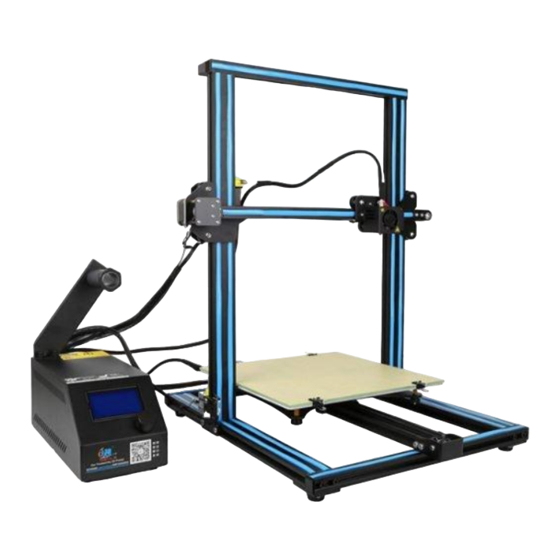

The CR-10 S5 is one of the biggest available consumer printers. If you decide to

buy one, make sure to clear up some space in your toolshed or lab. Also, make

sure to include some additional space for the control box.

Although being marketed as a 3D printer kit, the Creality CR-10 S5 comes mostly

pre-assembled. All you have to do is to mount the Z-axis to the base, connect the

cables and you're ready to 3D print. This shouldn't take longer than 30 to 60

minutes.

In the box, you will find these parts:



2 pre-assembled frames



tools for the assembly of the Creality CR-10 S5



some spare parts



Spatula for removing the print from the glass bed



Needle for cleaning of clogged nozzles



Teflon tube

Table of Contents

Do you have a question about the CR-10 S5 and is the answer not in the manual?

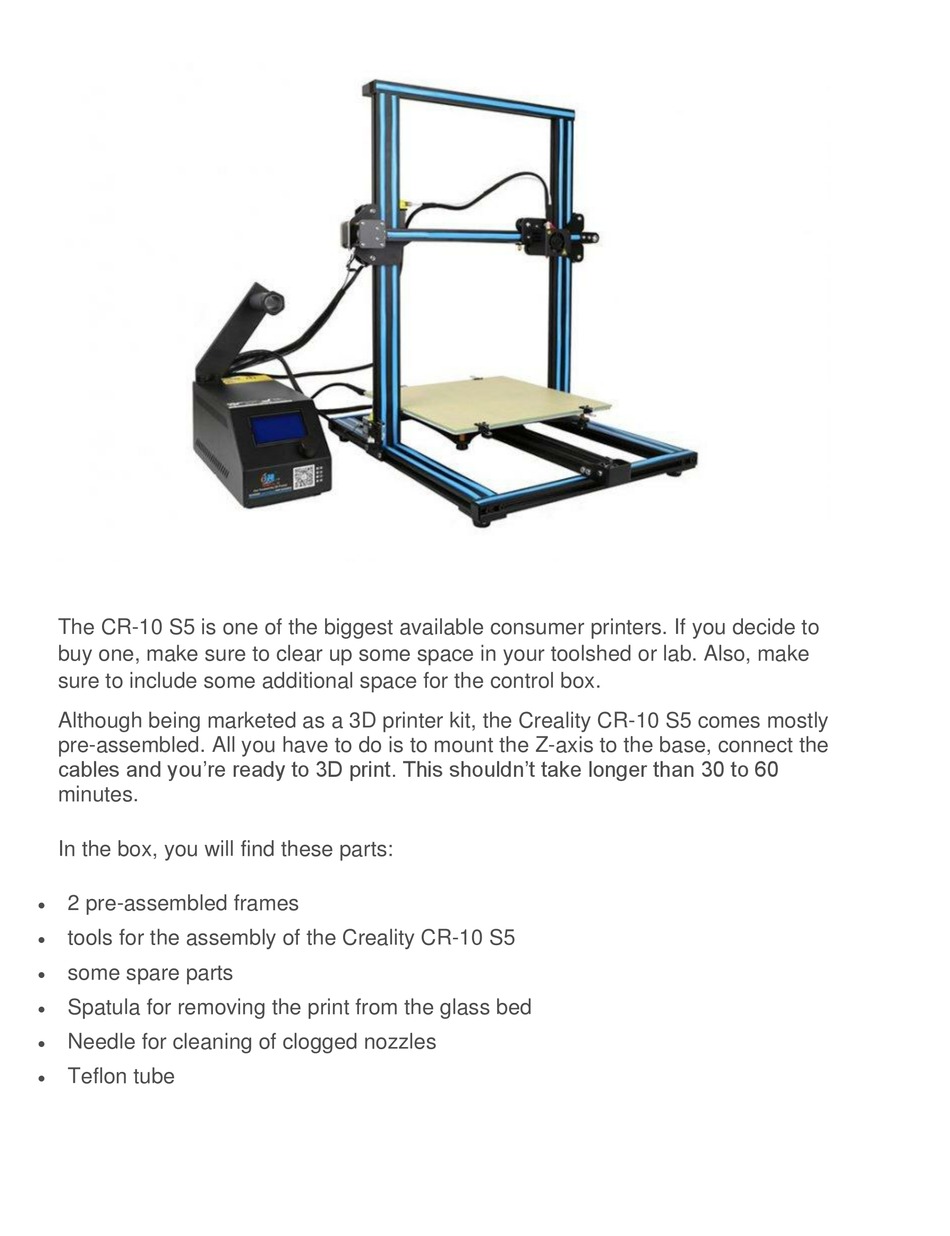

Page 1 The CR-10 S5 is one of the biggest available consumer printers. If you decide to buy one, make sure to clear up some space in your toolshed or lab. Also, make sure to include some additional space for the control box.
Page 2 USB connector. Removable glass bed: The bed can easily be removed to pluck the print off the bed. Also, Creality throws in a spool of Kapton tape if you don’t want to print on the bed directly. Improved build quality: In comparison to the Creality CR-10, the quality of the parts has been ramped up in the Creality CR-10 S5.
Page 3 Assembly: mostly assembled  Mechanical arrangement: Cartesian style  Manufacturer: Creality 3 D P R I N T I N G P R O P E R T I E S  Build volume: 500 x 500 x 500 mm Layer height: 100 –...
Page 4 Frame dimensions: 690 x 800 x 715 mm  Weight: 14 kg To make matters even more complicated, Creality offers a “CR-10 S5” model. This one has an even bigger build volume of 500 x 500 x 500 mm. Otherwise, it‘s based on the Creality CR-10S.
