Creality CR-10S5 User Manual
Hide thumbs
Also See for CR-10S5:
- Complete setup manual (24 pages) ,
- User manual (24 pages) ,
- Quick start manual (4 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Creality CR-10S5
Summary of Contents for Creality CR-10S5

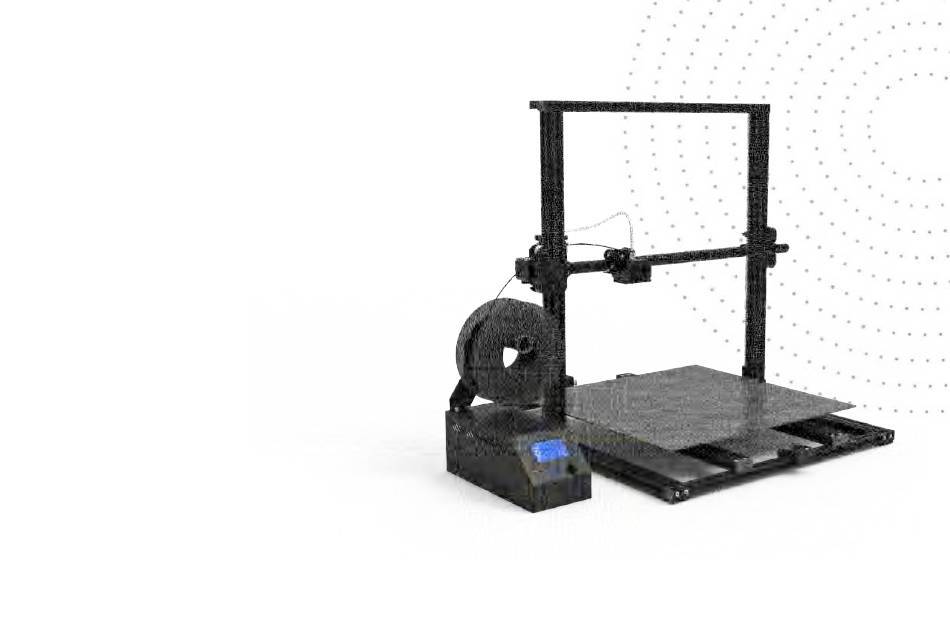

- Page 1 CR-10S5 3D Printer User Manual Detailed instructions for using are available in the TF card. V1.0...
- Page 2 ±0.1mm Fliament 1.75m m PLA File Format STL/OBJ/AMF Work i ng M ode Online or TF card offline Slice Software Creality S licer/Cura/Repetier-Host/Simpl ify3D Input:AC 115V/230V 50/60Hz Power Supply Output:DC 12V Total Power 270W Bed Tem p. ≤60℃ Nozzle Temp.
- Page 3 Auto home Bed leveling...
- Page 5 Shenzhen Creality 3D Technology CO.,LTD. A、 Introduction Filament Holder Control Box Z Gantry Frame Nozzle Assem bly Connection Nozzle Kit Platform Connection Power Cable Connection Extruder (E) Stepper CR Touch TF Slot and USB Port Display Screen Z Stepper Control Knob...
- Page 6 Shenzhen Creality 3D Technology CO.,LTD. B 、General list Tool Box Control Box Base Frame Gantry Frame Tool list Image Name Image Name Image Name Spool & Nuts 1set PowerCable Spade Spool Holder USB Cable Cable Ties 1set TFCard & Card...
- Page 7 Shenzhen Creality 3D Technology CO.,LTD.
- Page 8 Shenzhen Creality 3D Technology CO.,LTD.
- Page 9 Shenzhen Creality 3D Technology CO.,LTD. D、 Introduction Connect the Stepper Motors according to the yellow labels on the 6pin (4-wire) side. Extruder (E) Stepper Connect the Limit Switches according to the yellow labels on the 3pin (2-wire) side. X Stepper and Limit Switch...
- Page 10 Shenzhen Creality 3D Technology CO.,LTD. 、Screen Information Push：OK/EnterSubMenu Turn：Change Option/Value Information Catalogue Primary directory Explain Not printed Return Interface Menu Moving axis Move the XYZ axis and extruder according to the given value Return to origin Measure the height of all parts...
- Page 11 Shenzhen Creality 3D Technology CO.,LTD.
- Page 12 Shenzhen Creality 3D Technology CO.,LTD. Auto home 、 Prepare→Auto home（Wait for the end of CR-touch detection platform）. 2、 Prepare→Move axis→Move Z（Adjust the value to 0）. 3 、 Control→Motion→Z Offset（Observe the gap between the nozzle and the platform, and adjust Z offset to make the distance between the nozzle and the platform about 0.2mm） 4 、 Prepare→Disable steppers（Manually move the nozzle to the top of the platform adjustment knob, and adjust the four knobs in turn to make the distance between the nozzle and the platform about 0.2mm. If necessary, repeat the adjustment for 1 ~ 2 times）...
- Page 13 Shenzhen Creality 3D Technology CO.,LTD. H、Bed Leveling 1、Main interface Get ready Bed Leveling 4、 Print the renderings 2、Main interface Menu Print the file 3、 After leveling is completed, the Z axis compensation value is appropriately adjusted according to the adhesion of the printing consumables and the glass platform...
- Page 14 Shenzhen Creality 3D Technology CO.,LTD.
- Page 15 Shenzhen Creality 3D Technology CO.,LTD.
- Page 17 18F ,JinXiuHongDu Building, Meilong BIvd., Longhua Dist., Shenzhen, China 518131...
