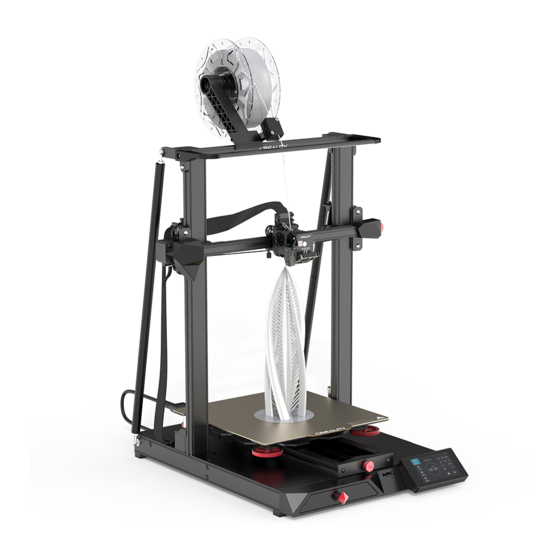

Summary of Contents for Creality CR-10 Smart
- Page 1 CR-10 Smart 创造现实，成就梦想 Create reality，achieve dreams CR-10 Smart 3D Printer User Manual 3D打印机用户使用手册 V1.0...
- Page 3 随机使用说明： 您可以在TF卡内找到相关使用说明及视频。 您还可以登陆创想三维官网(www.cxsw3d.com)寻找相关软硬件、 联系方式、 设备操作、 设备保养等信息。 Firmware Upgrade Please login the official website https://www.creality.com/download, switch the language and select the relevant printer and model and download the required firmware, you can use it after the installation is finished. 固件升级 请您登录官网https://www.creality.com/download， 切换语言选择相关机型与型号， 下载所需固件， 安装完成后即可使用。...
- Page 4 NOTES 使用须知 Do not use the printer any way other than described herein in order to avoid personal injury or property damage. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
- Page 5 Contents目录 Introduction 设备简介 01-01 Parameters 设备参数 02-02 Parts List 零部件清单 03-03 Assemble the 3D Printer 组装3D打印机 04-08 Use the 3D Printer 使用3D打印机 09-13 Wifi Printing Wifi 打印 14-16 Start Printing 首次打印 17-19 20-20 Wiring Connection电路接线 21-22 Troubleshooting 故障检修 23-28 FDM 3D PRINTING FILAMENTS 3D打印耗材 Warranty Card 保修卡...
- Page 6 1. Introduction 设备简介 Tool Box X Limit Switch Z-axis motor (Z1) 工具盒 X限位开关 Z轴电机 SD Card Slot Spotlight Power outlet 卡槽 射灯 电源插口 LCD Screen Nozzle Kit Y-axis Motor 显示屏 喷头套件 Y轴电机组件 Network Interface Z-axis photoelectric switch X-axis Motor 网络接口 X轴电机...
- Page 7 2. Equipment parameters 设备参数 Basic Parameters 基本参数 Model | 型号 CR-10 Smart Printing Size | 成型尺寸 300*300*400mm Molding Tech | 成型技术 Nozzle Number | 喷头数量 0.1mm-0.4mm Slice Thickness | 切片层厚 Nozzle Diameter | 喷嘴直径 Standard 0.4mm | 标配0.4mm Precision | 打印精度...
- Page 8 3. Package Content 零件清单 Base Frame｜底座 Gantry Frame｜龙门架 Display｜显示屏 Power Cord｜电源线 Rack｜料架 Spool｜料管 M5x20 Hexagon flat round M5x45 Sems Screw M5×12 Hexagon flat round Filament ｜耗材 Pull rods｜拉杆 head screws x2 ×4 head screw x2 M5x45组合螺丝 M5x20 内六角平圆头螺丝 M5x12 内六角平圆头螺丝 M5x10 Hexagon flat round M6 Screw bolt x2...
- Page 9 4. Install the Gantry Frame 安装龙门架 Base Frame｜底座 Two Z-axis profiles, installed on the Gantry Frame｜龙门架 inner step of the Y-axis bottom profile. 两根Z轴型材，靠Y轴底部型材内侧台阶安装。 Twist the coupling to raise the X axis to the position as picture shown. M5x45 Sems Screw ×4 M5x45组合螺丝...
- Page 10 5. Pull Rod Installation 拉杆安装 Adjust the proper length of assembled pull rod and install in the position shown in the figure 拉杆组装调节到合适的长度， 安装在图示位置 M5×12 Hexagon flat round head screw x2 M5x12 内六角平圆头螺丝 M5x20 Hexagon flat round head screws x2 M5x20 内六角平圆头螺丝...
- Page 11 6. Install the Rack 安装料架 Rack｜料架 Y-axis bottom profile Y轴底部型材 Spool｜料管 M5x10 Hexagon flat round head screws x2 M5x10内六角平圆头螺丝 M4T Nut ×2 M4T型螺母 The material rack can be installed in different positions on the front and back of the Z axis, and can be folded. 料架可在Z轴前、...
- Page 12 7. Install Limit switch for Z axis 安装Z轴限位开关 Easier to replace the platform and adjust the belt 更换平台更容易，调节皮带更方便 1.Rotate the glass pick-and-place handleplate for platform replacement. 1.转动玻璃取放手柄压板可进行平台更换。 2.Then manually turn the knob to the appropriate tightness to avoid belt breakage. (as shown in figure A, three places) 2.然后手动将旋钮左右拧到适合松紧度，...
-
Page 13: Cable Connection
8. Cable Connection 设备接线 Cable Connection 设备接线 Connect the 15pin port to the nozzle adapter board as shown in the figure 按图示15pin端口连接喷头转接板 Connect Z-axis motor cable 连接Z轴电机线 Connect the photoelectric switch wire 连接光电开关线 Connect the power cord 连接电源线 Caution ●Do not connect or disconnect the cables when the machine is powered on. ●当机器通电时，请勿连接或断开连接线。... - Page 14 9. Bed Leveling 调平平台 1. Slelct“Level”to automatically level 选择首页调平，即可自动调平 2. After the leveling is completed,adjust the Z-axis compensation value according to the adhesion of the printing consumables and the glass 调平完成后，依据打印耗材与玻璃平台的粘附情况，适当调节Z轴补偿值 >> >> >> >> During the leveling process,please do not touch the Teflon tube and nozzle cable. 调平过程中...
- Page 15 10. Preheating Method 预热方法 Method 1 方法1 Notes: The UI information is only for reference,the actual UI may be different. 注意：界面仅供参考，实际以UI为准。...
- Page 16 10. Preheating Method 预热方法 Method 2 >> >> 方法2 >> >> Notes: The print preheating standard is adjusted at the factory, PLA preheating standard: nozzle temperature 200 °, hot bed temperature 60 °, ABS preheating standard: nozzle temperature 240 °, hot bed temperature 70 °.If you need to adjust it due to printing materials or other reasons, you can adjust the parameters on the interface home page control →...
- Page 17 11. Load Filament 装料 When you wait for the temperature to rise,hang the filament over the Filament Holder. 当您等待温度上升时，把耗材挂在料架上。 For loading filament smoothly,the end of the filament should be placed as shown above. 为了顺利完成装料，耗材的末端位置应如图所示。...
- Page 18 11. Load Filament 装料 Whe the current temperature reaches the target temperature,the consumables pass the material breakage detection,and are inserted into the small hole of the extruder until the position of the nozzle,If the consumables flow out at the nozzle,it means that the consumables have been loaded. Method of adjusting the tightness of the extrusion spring:Arrow to right is tightening,arrow to left is lossen.(As shown in figure A) 当前温度达到目标温度时，将耗材通过断料检测，插入挤出机小孔直至喷嘴位置，看到喷嘴处有耗材流出即表示耗材已经装载完成。...
- Page 19 12. WiFi Printing WiFi 打印 >> >> >> 1.Download 2.Register 3.Log in 4. Scan QR Code 1.下载 2.注册 3.登录 4.扫一扫 >> >> >> 5.Add equipment 6. Setting 7.Connect WiFi 8.Select print model 5.新增设备 6.设置 7.连接WIFI 8.选择打印模型...
- Page 20 12. WiFi Printing WiFi 打印 11. Start Printing 开始打印 >> >> Notes: The UI information is only for reference,the actual UI may be different.
- Page 21 12. WiFi Printing WiFi 打印 11. Start Printing 开始打印 >> >> 注意：界面仅供参考，实际以UI为准。...
- Page 22 3. Select language→Next→Select your machine→Next→Finish. >> >> 1. Double click to install the software. | 安装软件 4.Open Creality 3D slicer → Load （Read file) → Select file. 打开创想三维切片软件→Load （读取文件） →选择文件。 2、 Double click to open the software. | 打开软件 3.依次选择语言→Next→选择对应机型→Next→Finish,完成设置.
- Page 23 13. Start Printing 开始打印 >> 6.Insert the storage card→ Click print control→ Select the file to be printed. 5.Generate G-code， and save the gcode file to storage card. 插入存储卡→点击打印控件→选择 生成 G 代码→保存到存储卡 要打印的文件 Notes: For details on the software instructions, please refer File names must be Latin letters or numbers, not Chinese to the slicing software manual in the memory card! characters or other special symbols...
- Page 24 13. Start Printing 开始打印 >> >> >> >>...
- Page 25 14. Circuit Wiring 电路接线 Y axis motor Z1 axis motor Z2 axis motor Y 轴电机 Z1 轴电机 Z2 轴电机 Cable Port1 排线接口1 Storage Card Slot 存储卡卡槽 Cable Port2 排线接口2 WIFI Port WIFI 接口 Screen Interface 屏幕接口 Fuse 保险丝 Power Input Hot Bed Power Output Bed Thermistor Normal Fan...
- Page 26 15. Trouble-shooting...
- Page 27 15. 故障检修...
- Page 28 16. FDM 3D PRINTING FILAMENTS FDM 3D PRINTING FILAMENTS Upgraded environmentally friendly Targeting at mid-end users, CR series is with HC series is cost-efficient. It’ s widely Ender series is widely applied to general formula, matte effect, high toughness, transparent tray plus black-white color box applicable to general FDM printer product FDM printer design, which meet customers' and fine printing.
- Page 29 17. UV sensitive resin parameter information Water Dental Jewelry Related High Temperature Standard Resin ABS Like Resin Dental Cast Resin Elastic Resin Toughness Resin Washable Resin Mode Resin Cast Resin Parameters Resin 150-250MPa·s 200-350MPa·s 50-170MPa·s 300-1000MPa·s 100-350MPa·s 150-300MPa·s 150-300MPa·s 150-300MPa·s 100-150MPa·s Viscosity (NDJ-8S Rotational...
- Page 30 Suitable for 99% FDM models CR-PLA 190-220 50-60 Suitable for 99% FDM models HC/EN-PLA 190-220 50-60 Hot bed is needed, and Creality printer enclosure 220-260 90-110 is recommended for DIY machine Hot bed is needed, and Creality printer enclosure PETG 230-250 60-100...
- Page 31 19. 3D 打印耗材 3D打印机耗材 系列 系列 系列 系列 升级环保配方， 哑光效果， 韧性高， 打印细 定位中高端用户， 透明盘+黑白彩盒设 高性价比款， 广泛适用市面上通用型 广泛适用市面上通用型FDM打印机， 并 腻， 原料源自美国， 有丰富的颜色可选。 计， 线径公差小， 打印性能稳定。 可以满 FDM打印机， 并可以按照您的需求量身 可以按照您的需求量身定制， 可以满足 足您日常的设计和原型制作需求。 具有 定制， 可以满足您日常的设计和不同的 您日常的设计和不同的原型制作需求, 出色的机械性能和打印质量。 原型制作需求。 让想象插上翅膀。 光敏树脂 刚性树脂 水洗树脂 低收缩率、...
- Page 32 20.光敏树脂种类参数信息 相关参数 刚性树脂 类ABS树脂 可铸造牙冠树脂 弹性树脂 水洗树脂 牙模树脂 柔性树脂 压模树脂 可铸造首饰树脂 150-250MPa·s 200-350MPa·s 50-170MPa·s 300-1000MPa·s 100-350MPa·s 150-300MPa·s 150-300MPa·s 150-300MPa·s 100-150MPa·s 粘度 (NDJ-8S (NDJ-8S (NDJ-8S (NDJ-8S (NDJ-8S (NDJ-8S (NDJ-8S (NDJ-8S (NDJ-8S 旋转粘度仪 (25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 旋转粘度仪(25℃)) 355nm-410nm 355nm-410nm 385nm-410nm...
- Page 33 需要热床， DIY机推荐使用Creality保温罩 PETG 230-250 60-100 210-240 近端挤出机型 Silk 190-220 50-60 适配99%FDM机型 需要热床， DIY机推荐使用Creality保温罩 Nylon 230-260 80-90 Carbon (普通型) 190-220 50-60 适配99%FDM机型 广告字耗材-PLA 190-220 50-60 Creality K5、 K8、 T5 低温打印笔耗材-PCL 60-100 低温打印笔 深圳市创想三维科技有限公司 www.creality.com 地址: 深圳市龙华区民治街道新牛社区梅龙大道锦绣鸿都大厦18楼 vip.creality.com 公司网站：www.cxsw3d.com 服务热线：400 6133 882 0755-8523 4565 创想官网 创想云...
- Page 34 22.After-Sales Service Card Hotline:+86 755-85234565...
- Page 35 售后服务卡...
- Page 36 售后服务卡...
- Page 40 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. Add:18F,JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen, China 518131 Official Website: www.creality.com Tel：+86 755-8523 4565 E-mail: info@creality.com cs@creality.com 深圳市龙华区民治街道新牛社区梅龙大道锦绣鸿都大厦18F Scan To Learn More 公司网站：www.cxsw3d.com 更多服务请关注公众号 服务热线：400 6133 882 0755-8523 4565...
