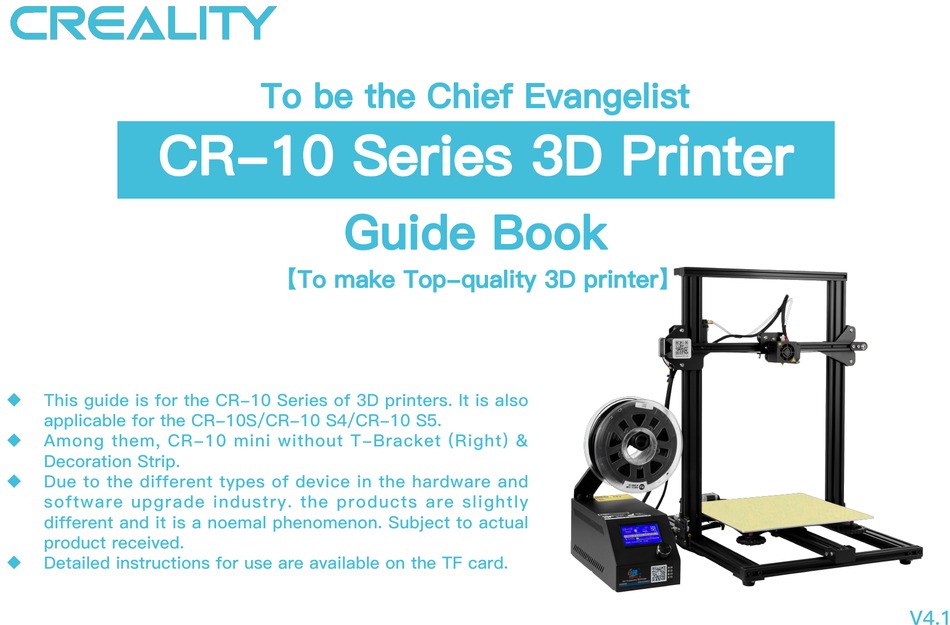

CR-10 Series 3D Printer
This guide is for the CR-10 Series of 3D printers. It is also
applicable for the CR-10S/CR-10 S4/CR-10 S5.
Among them, CR-10 mini without T-Bracket (Right) &
Decoration Strip.
Due to the different types of device in the hardware and
software upgrade industry. the products are slightly
different and it is a noemal phenomenon. Subject to actual
product received.
Detailed instructions for use are available on the TF card.
To be the Chief Evangelist
Guide Book
【To make Top-quality 3D printer】
V4.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-10 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creality CR-10 Series

Summary of Contents for Creality CR-10 Series

  • Page 1 To be the Chief Evangelist CR-10 Series 3D Printer Guide Book 【To make Top-quality 3D printer】 This guide is for the CR-10 Series of 3D printers. It is also  applicable for the CR-10S/CR-10 S4/CR-10 S5. Among them, CR-10 mini without T-Bracket (Right) &...
  • Page 2 Notes Do not use the Printer in any other way not described herein in order to avoid personal injury or property damage. Do not place the Printer near flammables, explosives or heat sources. It is best to place it in a well- ventilated, low-dust environment.

  • Page 3: Table Of Contents

    Contents Introduction........1 Bed Leveling ..……...…………………8 General List ........2 Software Ins ta ll a tion ..… … …… … …9 For the first Printing…………………..10 Device Installion ......3 Cable Connection......5 10. T r o u b l e s h o o t i n g ....1 1 Screen Information………………….6 11.

  • Page 4: Introduction

    1. Introduction 1. Display Screen 6. Platform 11. Z Stepper 16. Nozzle Assembly Connection 2. Control Knob 7. Base Frame 12. Z Limit Switch 17. Hot Bed Connection 3. Voltage Selection 8. Z Gantry Frame 13. X Stepper 18. Power Cable Connection 4.

  • Page 5: General List

    2.General List Gantry Frame Control Box Tool Kit Base Frame Tool List No.Image Name QtyNo. Image Name QtyNo.Image Name M5X25 Bolt Spool Holder & Nuts Scraper & Lock Washer sets Spool Holder Bracket Power Cable Diagonal Pliers Hex keys, Wrench USB Cable Sample Filament &...

  • Page 6: Device Installion

    3.Device Installtion 01  Install the Gantry Frame  Install the T-shaped fixing block. Note: Make sure that the nut for profile has been turned by 90° before fastening the T-shaped fixing block. Insert the Teflon pipe into the quick connector M5X25 4pcs *CR-10 mini without T-Bracket (right).
  • Page 7 3.Device Installtion 02 ◆ Install the Spool Holder and Bracket Finished Attach the Bracket with Attach Spool Holder two thumb screws. with included Nuts ◆ Installation decoration belt Installation decoration belt into Cut off the excess material with Attach the Decorative Trim to all the notch, starting from one end.

  • Page 8: Cable Connection

    4.Cable Connection Connect the Stepper Motors according to the yellow labels on the 6pin (4-wire) side. Extruder (E) Stepper X Stepper and Limit Switch Y Stepper and Limit Switch Z Stepper and Limit Switch Connect the Limit Switches according to the yellow labels on the 3pin (2-wire) side.

  • Page 9: Screen Information

    5.Screen Information Push：OK/Enter Sub Menu Turn：Change Option/Value Set Temperature of the Nozzle Print Speed Current Temperature of the Nozzle Device Model Set Temperature of the Hot Bed Current Temperature of the Hot Bed Part Cooling Fan Speed Current Location of the nozzle Print Time Print Progress...

  • Page 10: Loading Filament

    6.Loading Filament 1. Preheat 2.Feeding Method 1 Method 2 Press and hold the extruder lever then insert the1.75mm filament through the small hole of the extruder. Continue feeding until you see filament come out the nozzle. Tip：How to Replace the Filament？ 1、Cutting filament near the Extruder and slowly feed new filament until they are fed into the new filament.

  • Page 11: Bed Leveling

    7.Bed Levelling 1. Prepare →Auto Home. Wait for the nozzle to move to the left/front of the platform. 2. Prepare→Disable Steppers(Close stepper drive，release motor) 3. Move the nozzle the front/left leveling screw and adjust the platform height by turning the knob underneath. Use a piece of A4 paper (standard printer paper) to assist with the adjustment, making sure that the nozzle lightly scratches the paper.

  • Page 12: Software Installation

    8.Software Installation 1. Double click the Cura icon to install the Cura Slicing Software. 2. Start Cura 3.0.2 from the 3. Select Other→Creality CR-10→Add Printer. Start Menu.

  • Page 13: For The First Printing

    9. For the first Printing 1.Slicing 2.Printing Insert SD card into computer with Reader. 1. Open file Insert the SD card 2. Select file Select “Print from SD” 3. Open Select the file to be printed 4. Save to TF Card...

  • Page 14: T R O U B L E S H O O T I N

    10. Trouble shooting...

  • Page 15: After-Sales Services

    11. After- Sales Service Service   (4) Equipment failure or damage due to incorrect installation and use;   (5) Equipment failure or damage caused by the use of the equipment in a 1, The printer can be returned within seven days, 15 days replacement, one year working environment not specified by the product;...
  • Page 16 Website QR code SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. 12/F, Block 3,JinChengYuan,Huafan Road,Tongsheng Community, Dalang, Longhua District,Shenzhen,China,518109 Official Website :www.creality3d.cn Tel:+86 755-2103 4006 E-mail：info@creality3d.cn cs@creality3d.cn...
