A4400 VA4 Pro vs. A4404 SAB

Both of these units are described in this user manual. This chapter should clear up the difference between
A4400 VA4 Pro vibration analyzer and A4404 SAB vibration analyzer.

A4400 VA4 Pro

A4400 VA4 Pro is a portable vibration analyzer which is based on unique Digital Signal Processing board (DSP)
developed by Adash.

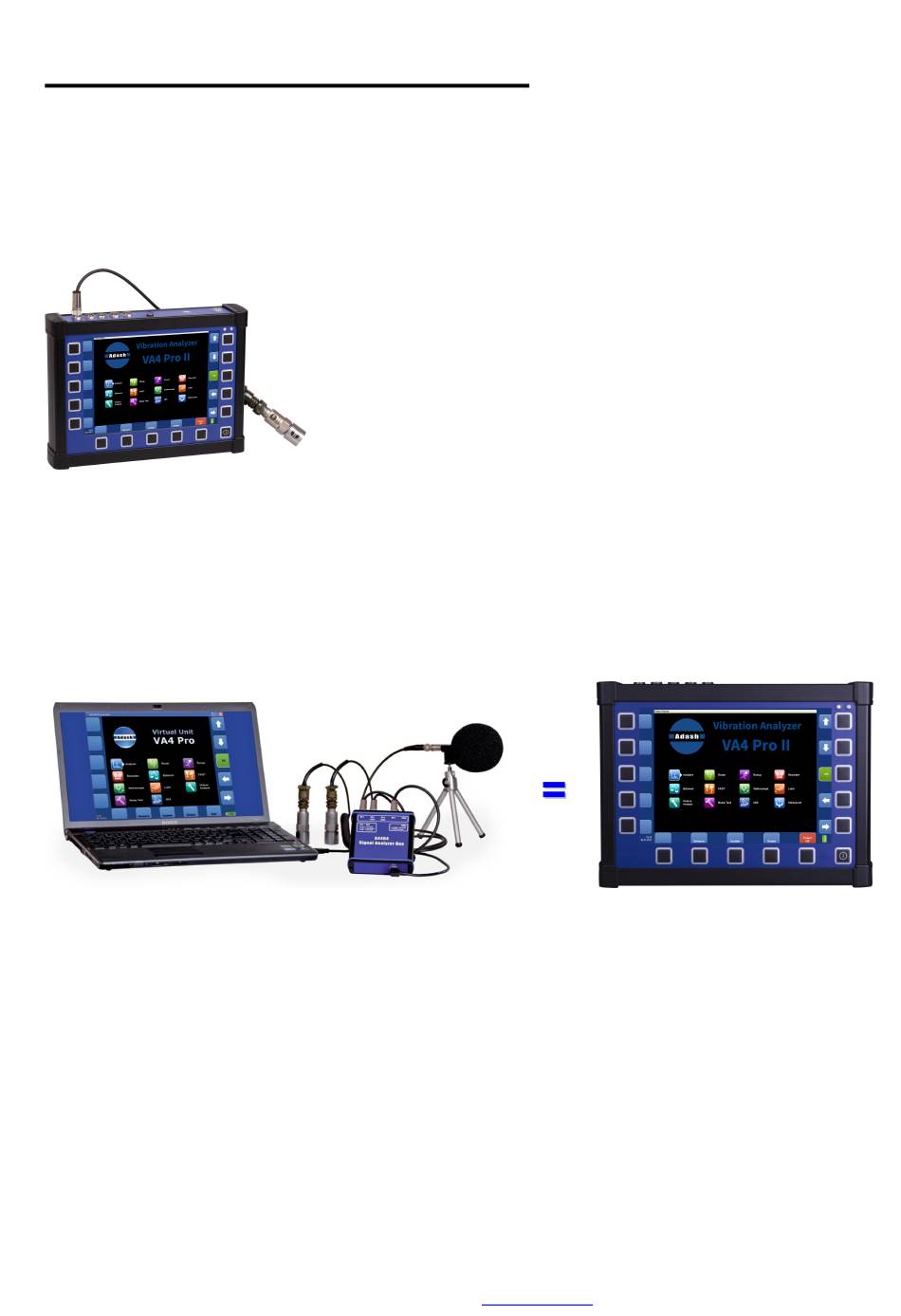

A4400 VA4 Pro analyzer

A4404 SAB (Signal Analyzer Box)

A4404 SAB is a pocket size vibration analyzer which contains input connectors for sensors. It does not contain
keyboard and screen. It must be used with computer. It uses the same DSP board as VA4 Pro analyzer. You
need to install the A4410 Virtual Unit software on your computer and then you can use all functions which are
available in VA4 Pro analyzer. The software is free. It enables you to test all VA4 features before you will buy it.
See the website for details.

Graph control by mouse

A4410 Virtual Unit runs on PC. Therefore you control graphs by mouse.
Graph selection
Left button click
Cursor Move
Left button click on signal. Both X and Y coordinates are used, it means you should click to signal line.
Maximalization / Minimalization
Left button double click
Zoom
Mouse wheel
When the mouse cursor takes place bellow (or slightly above) the x axe, only the x axe is zoomed.
When the mouse cursor takes place to the left from the y axe, only the y axe is zoomed.
When the mouse cursor takes place in the inner area of the graph, both the x and the y axes are zoomed.
9
