Ishida Uni-7 & Uni-5 Series
Setup Manual
Rev 4, B0674R / B0664J, March 2014

Advertisement

Table of Contents
loading

Related Manuals for Rice Lake Ishida Uni-7 Series

Summary of Contents for Rice Lake Ishida Uni-7 Series

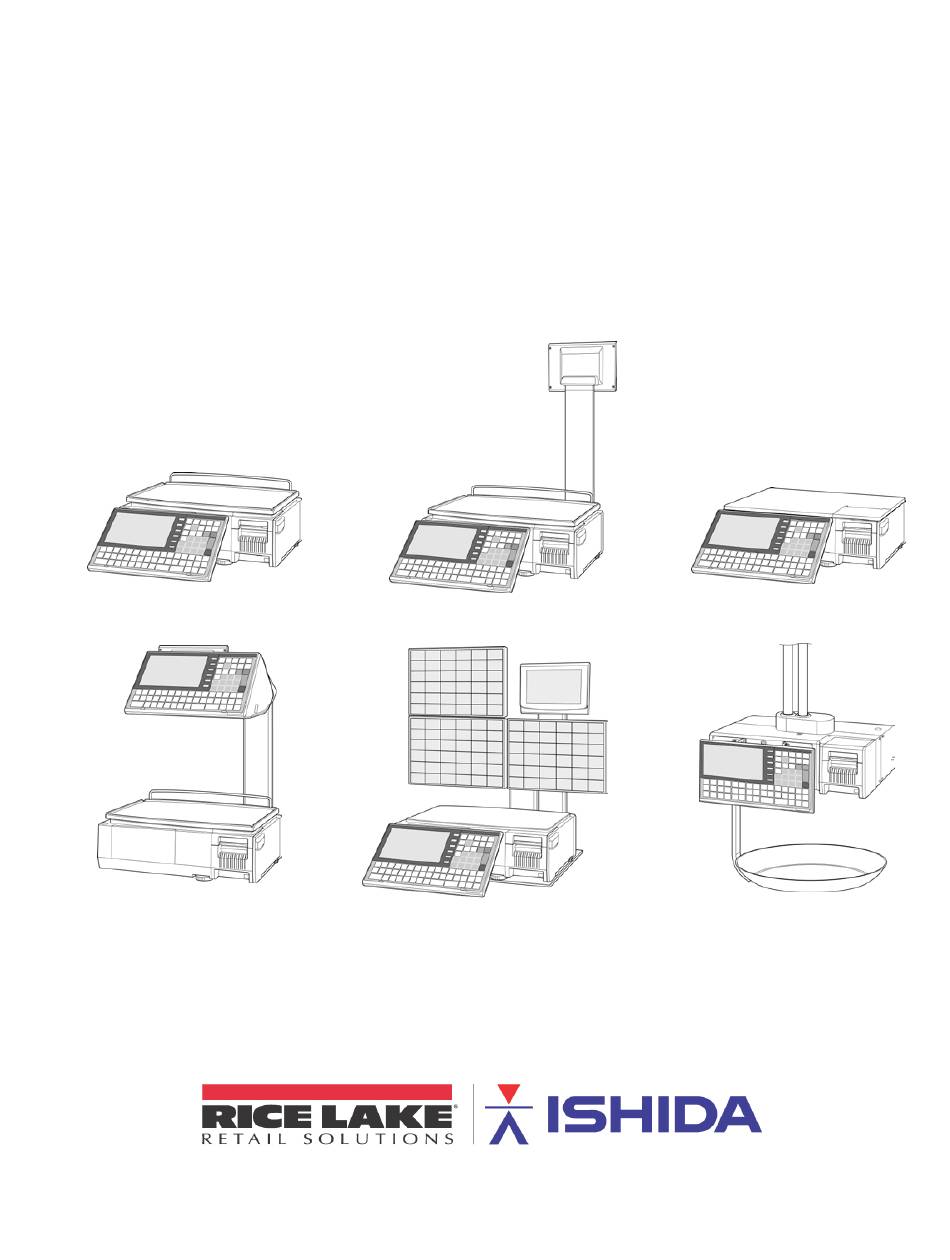

  • Page 1 Ishida Uni-7 & Uni-5 Series Setup Manual Rev 4, B0674R / B0664J, March 2014...

  • Page 2: Table Of Contents

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual For those familiar with the Ishida Uni-7 or Uni-5 Touch Screen scale, this document may be used as a quick reference guide. Simply refer to the Table of Contents below and go to the appropriate page for instructions.

  • Page 3: Check And Update Scale Firmware

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 1. Check and Update Scale Firmware The scale firmware is uploaded by a USB memory stick. All service technicians working with the Uni-7 and Uni-5 scales should have access to at least one USB memory stick. A.
  • Page 4 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 1.2. USB Memory Stick with Only "Soft" Folder 2. With the scale powered OFF raise the left side access panel. 3. Insert the Memory Stick in to the USB port. See Figure 1.3.
  • Page 5 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 1.4. Top, Red Bar Indicates Boot Up from USB Memory Stick 6. A warning message "Data Composition Is Different. Please Initialize the Memory" (0114- 0000) may be displayed if the current and new firmware versions differ greatly. If this message appears press OK and skip to step 8.
  • Page 6 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 1.6. Select USB>MAIN (PRG+IMG) and the Firmware File to Install 17. Press EXECUTE. 18. Screen 15034-0000 "DATABASE VERSION IS DIFFERENT" may be displayed. Press EXEC to continue. 19. Press EXEC to begin the firmware download. See Figure 1.7.
  • Page 7 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 1.8. Firmware Download – This May Take Up to 12 Minutes 21. When message 15029-0000 is displayed the firmware download is complete -- power the scale off. See Figure 1.9. Figure 1.9.

  • Page 8: Memory Clear

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 1.10. Normal Startup Screen Following Firmware Upgrade 27. Confirm the new firmware version has been loaded – refer to section 1A. Checking the Firmware Version above, starting at step 4. 28.

  • Page 9: Basic Configuration

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 3.1. Memory Clear 7. Press the RETURN ARROW (top right). 8. Press the OPERATION ICON (lower right) to return to Normal Operation mode. 9. If the Date/Time confirmation screen is displayed, press ENTER. 10.

  • Page 10: Ethernet Configuration

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 8. Press the RETURN ARROW (top right). 9. Press the ADJUST menu button. 10. Select DATE TIME. 11. Enter Date and Time values as needed. Enter the data in the formats noted on the display.
  • Page 11 (blue) even when there is no connection. 12. Do not change the Port Number (8071) or Comm Check Time Out (2 seconds) unless instructed to do so by Rice Lake Weighing Systems technical support. Figure 4.2.

  • Page 12: Wireless Configuration

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 13. Press the RETURN ARROW (top right). 14. Press EXEC at the Re-Boot Check screen (message 14034-0000). See Figure 4.3. Figure 4.3. Reboot the Scale to Save the Ethernet Settings 15.
  • Page 13 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 5.1. Initial WiFi (Wireless) Configuration Screen 7. Enter the Network Name assigned to the Access Point(s) or Wireless Router(s). See Figure 5.2. Note: The Network Name is always case sensitive. Example: Scales 8.
  • Page 14 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 5.3. SSID Wireless Network Name Is Set (It Is Case Sensitive) 11. Select the appropriate SECURITY / AUTHENTICATION / ENCRYPTION type. Example: WEP64. See Figure 5.4. Note: If no encryption will be used press NONE and proceed to step 19. IMPORTANT: An Encryption setting of "NONE"...
  • Page 15 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual b. WEP encryption keys must be the following length. o 64-bit ASCII: 5 characters o 64-bit HEX: 10 characters o 128-bit ASCII: 13 characters o 128-bit HEX: 26 characters c.

  • Page 16: Backup & Restore By Usb Memory Stick

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 5.7. Press OK then Wait at Least 30 Seconds 22. After waiting at least 30 seconds for the new WiFi settings to download and store in the RF Card, press the RETURN ARROW (top right).
  • Page 17 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 6.1. Memory Output to USB Memory Stick 9. Press an unused file number. It changes to yellow. 10. Press the EDIT button to name the file. See Figure 6.2. 11.
  • Page 18 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 6.3. Select All Files for Output 15. The screen displays the progress of files being copied. 16. Press OK when backup is complete (message 14014-0000). See Figure 6.4. Figure 6.4.

  • Page 19: Restore Data Files To Scale

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual B. Restore Data Files to Scale 1. Power up the scale, press ENTER at the Date/Time confirm screen. 2. Insert a standard USB Memory Stick containing one or more "Data0x" folders into the USB Port.

  • Page 20: Label Setup

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 6.7. Select Files for Input 13. The screen displays the progress of files being copied. 14. Press OK when backup is complete (message 14013-0000). See Figure 6.8. Figure 6.8. Input from USB Memory Stick Compete Confirmation 15.
  • Page 21 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 7.1. Label Cassette Setup: Format No., Label Spec, and Peel Mode 6. Enter the label format number and press the highlighted LABEL FORMAT NUMBER field. The default formats are listed in the table below. Note: Use the SLP-V i-Support or SLP-5 Maintenance Utility to download from the Uni-7 Label Library for a more complete selection of label formats.
  • Page 22 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 7.2. Label Cassette Setup: Print Mode and Label Type 12. Press the  button to move to the next page. See Figure 7.3. 13. Enable STORE PRINT as needed. Toggle between two selections. •...
  • Page 23 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 7.4. Label Cassette Setup: Overflow Flag and Second Label Format No. 18. Press the  button to move to the next page. See Figure 7.5. 19. Enter the SUBTOTAL LABEL FORMAT NUMBER as needed and press the Subtotal Format No.
  • Page 24 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Figure 7.6. Label Cassette Setup: Auto Print Label Format No. and PLU Name Type 24. Press the  button to move to the next page. See Figure 7.7. 25. Set the EXTRA MESSAGE 1 as needed. Toggle between two selections. •...
  • Page 25 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 29. Set the SAFE HANDLING IMAGE as needed. Toggle between two selections. • FIXED – select when the Safe Handling Image will print on every label (default) • VARIABLE – select for continuous labels where the Safe Handling Image is controlled by PLU and may not print on some labels Figure 7.8 Label Cassette Setup: Extra Message 3 Type and Safe Handling Image Type...
  • Page 26 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 34. Set the LOGO IMAGE 3 as needed. Toggle between two selections. • FIXED – select when Logo Image 3 will print on every label (default) • VARIABLE – select for continuous labels where Logo Image 3 is controlled by PLU and may not print on some labels 35.

  • Page 27: Label Specification

    5. The current Label Specification settings are displayed. See Figure 7.13. Note: Under normal circumstances there is no need to alter the Label Specifications. If changes are required please consult Rice Lake Weighing Systems technical support. Figure 7.13. Label Specifications (default settings) 6.

  • Page 28: Advertising Messages

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 8. Advertising Messages This section covers programming Advertising Messages which are shown on the scale’s customer side display. Both text and images may be included in the messages. Note: The images linked to the Advertising Messages are downloaded to the scale using the SLP-V or SLP-5 program.
  • Page 29 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 13. Select the IMAGE tab if images will be linked to the Ad Message, otherwise go to step 17. See Figure 8.2. Figure 8.2. Ad. Message Images 14. Press Image 1 and scroll through the image list. 15.

  • Page 30: Calibration

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 9. Calibration The scale should be powered up at least 30 minutes prior to calibration. Confirm the scale is level, the four leveling feet make full contact with no rocking, and the stand is stable. 1.
  • Page 31 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual Bench and Pole • The Calibration Button is located under the weigh platter. See Figure 9.2. • Remove the front of two screws located in the small rectangular cutout to access the Button. Figure 9.2.

  • Page 32: Reference

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 10. Reference A. Passwords and Menu Navigation The availability of the Uni-7 menus is based on the password entered. The service password 495344, PLU provides access to all menus. Refer to the next section "Menu Structure" for a list of all menu steps.
  • Page 33 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 4. Enter the password as a six-digit number and press the PASSWORD button. Example: For the password 123, enter "000123". Notes: • To clear the password, enter "000000". • One password is used for all menus. Menu Navigation 1.
  • Page 34 Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual 5. Tabs are used within menu steps with multiple pages. See Figure 10.4. Example: select SETUP menu. - Select MACHINE No. (COMMS) - Four pages are available - Access each page by pressing the desired tab 6.

  • Page 35: Menu Structure

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual B. Menu Structure OPERATION TOTAL PROGRAM SETUP ADJUST SALES DAILY TOTAL MACHINE No. (COMMS) TIME / DATE ACC1 WEEKLY TOTAL CAMPAIGN SALES MODE TOUCH SCREEN ACC2 CUMULATIVE TOTAL OPERATORS PASSWORD DISPLAY CHECK ACC3...

  • Page 36: Configuration Features With Menu Locations

    Ishida Uni-7 & Uni-5 Touch Screen Scale and Printer Setup Manual C. Configuration Features with Menu Locations Feature Menu Step Comments Backup (by USB) Setup File Save/Load "Scale>USB": backup, "USB>Scale": restore Barcode Format Setup Barcode POS Code, POS Format (Weight & Fix Price) Barcode OCR Setup Barcode...
