Mount printhead onto MEDIAJET

Note:
Please mind the positioning of the tube.
103956_V02_OI_Connection_Kit_LINX_bottom.docx

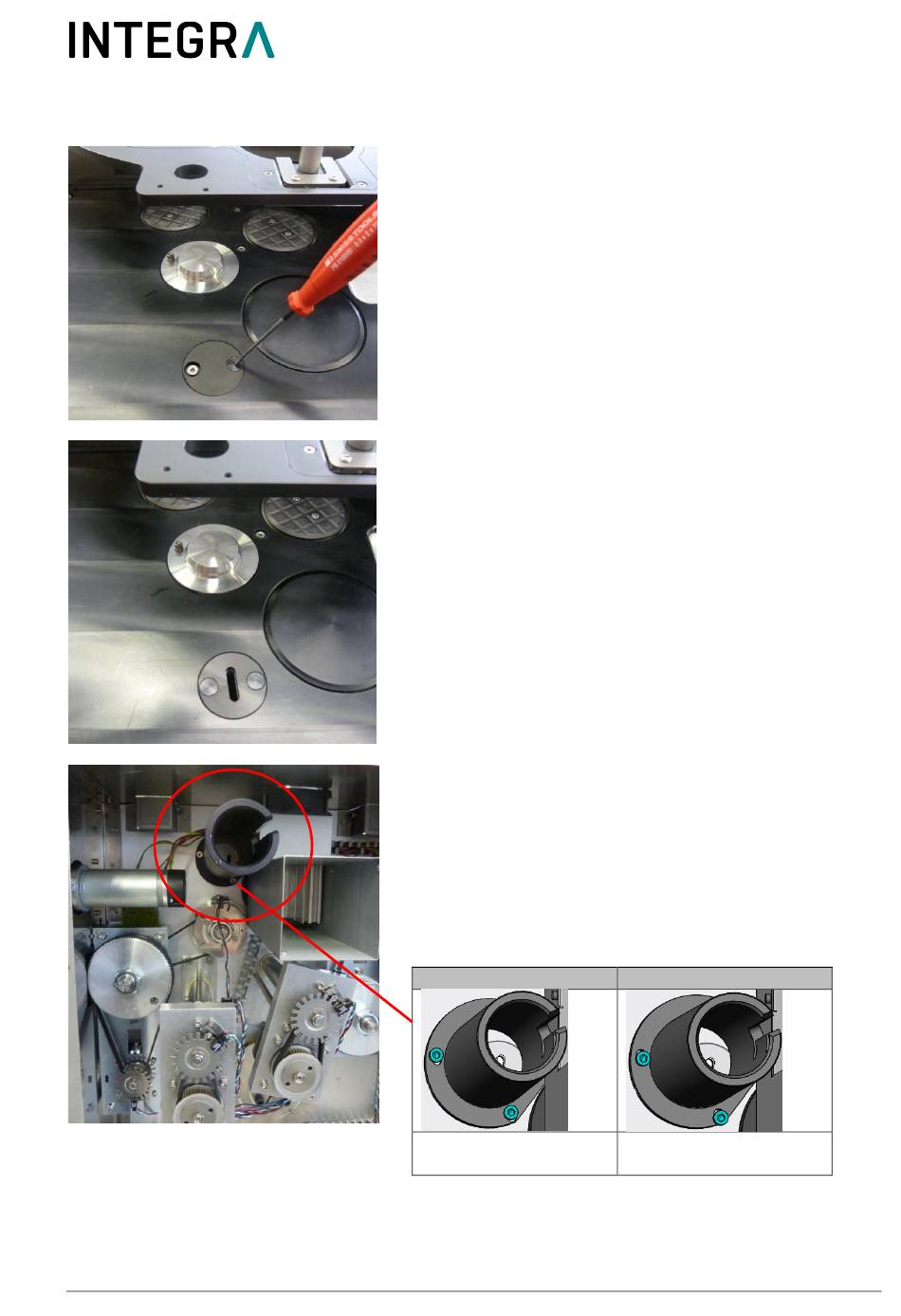

Remove the two plastic screw caps and remove the
dummy cover on the rotor slide plate.
Install the new disc with slot (2).
Cover the screws with the screw caps (4).
Dismantle the bottom plate of the MEDIAJET.
The slot position of the MK11 printhead is slightly offset
compared to the MK7.
Mount the flange (1) on the tube (5), so that the slots of
the disc (2) and the printhead fit on top of each other.
The tube with the flange must be mounted with 3
Hexagon screws M5x16mm (3) at the correct position in
the slotted hole of the flange:
Printhead MK7
counterclockwise
(ccw) offset.
2/3
Printhead MK11
Clockwise (cw) offset.
