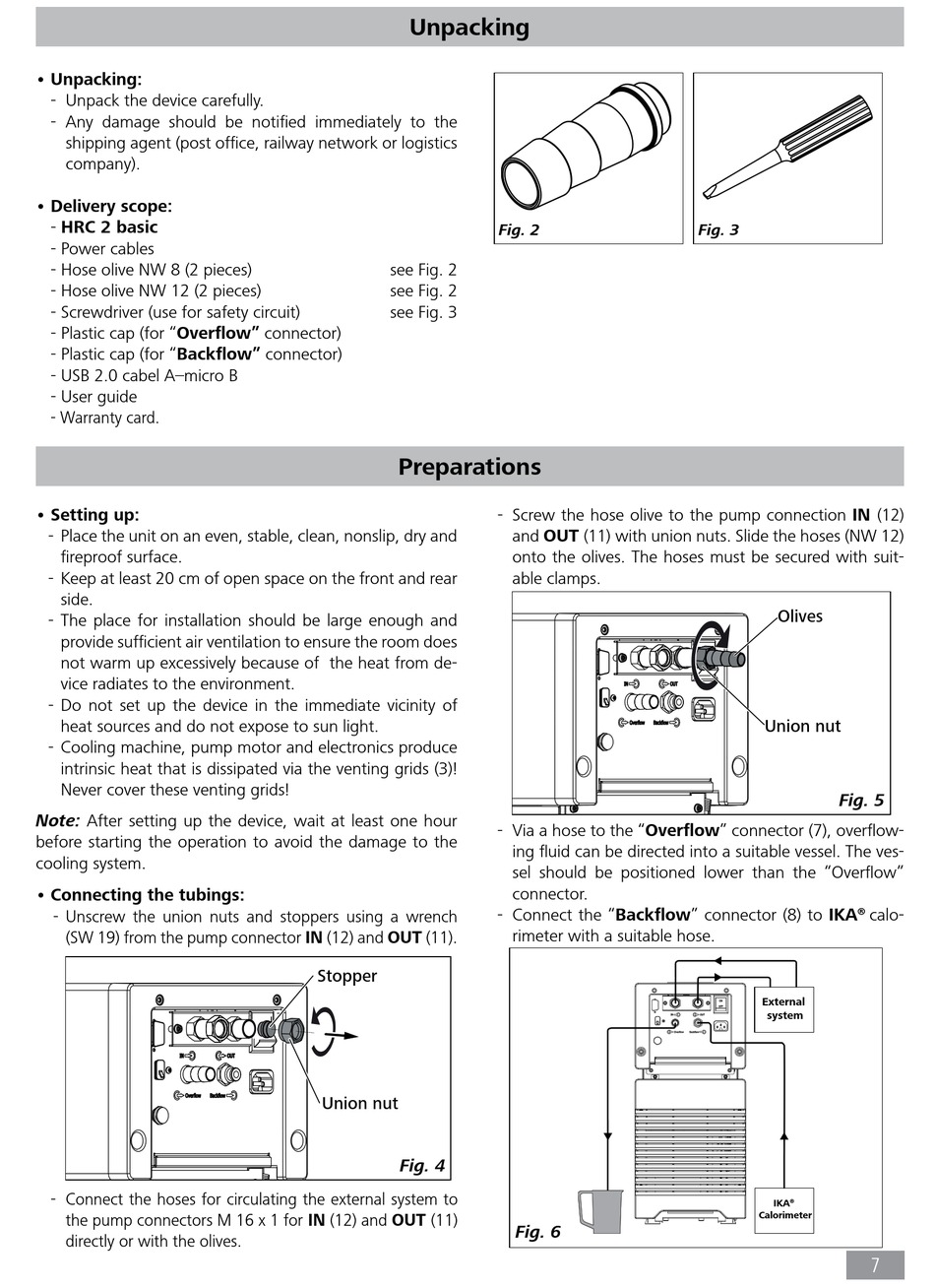

• Unpacking:

- Unpack the device carefully�
- Any damage should be notified immediately to the
shipping agent (post office, railway network or logistics
company)�

• Delivery scope:

- HRC 2 basic
- Power cables
- Hose olive NW 8 (2 pieces)
- Hose olive NW 12 (2 pieces)
- Screwdriver (use for safety circuit)
- Plastic cap (for "Overflow" connector)
- Plastic cap (for "Backflow" connector)
- USB 2�0 cabel A–micro B
- User guide
- Warranty card�
• Setting up:
- Place the unit on an even, stable, clean, nonslip, dry and
fireproof surface�
- Keep at least 20 cm of open space on the front and rear
side�
- The place for installation should be large enough and
provide sufficient air ventilation to ensure the room does
not warm up excessively because of the heat from de-
vice radiates to the environment�
- Do not set up the device in the immediate vicinity of
heat sources and do not expose to sun light�
- Cooling machine, pump motor and electronics produce
intrinsic heat that is dissipated via the venting grids (3)!
Never cover these venting grids!
Note: After setting up the device, wait at least one hour
before starting the operation to avoid the damage to the
cooling system�

• Connecting the tubings:

- Unscrew the union nuts and stoppers using a wrench
(SW 19) from the pump connector IN (12) and OUT (11)�
- Connect the hoses for circulating the external system to
the pump connectors M 16 x 1 for IN (12) and OUT (11)
directly or with the olives�
Unpacking
see Fig� 2
see Fig� 2
see Fig� 3

Preparations

Stopper
Union nut
Fig. 4
Fig. 2
- Screw the hose olive to the pump connection IN (12)
and OUT (11) with union nuts� Slide the hoses (NW 12)
onto the olives� The hoses must be secured with suit-
able clamps�
- Via a hose to the "Overflow" connector (7), overflow-
ing fluid can be directed into a suitable vessel� The ves-
sel should be positioned lower than the "Overflow"
connector�
- Connect the "Backflow" connector (8) to IKA
rimeter with a suitable hose�
Fig. 6
Fig. 3
Olives
Union nut
Fig. 5
calo-
®
External
system
IKA
®
Calorimeter
