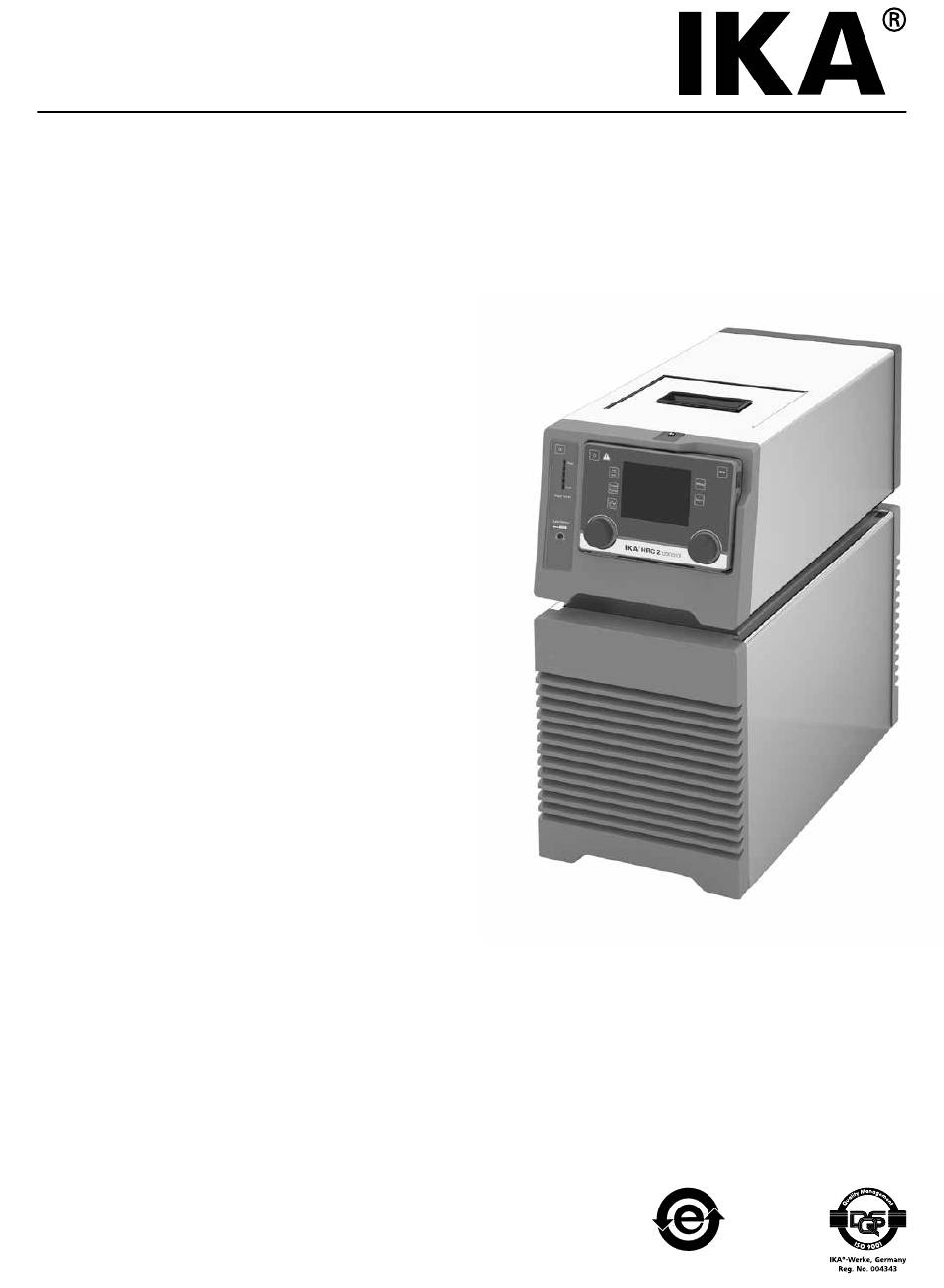

- Page 1 20000015725a HRC 2 control_112017 HRC 2 control ® Operating instructions...
-
Page 2: Device Setup
Device setup Fig. 1 Item Designation Wireless Controller (WiCo) Handle Venting grid Filling opening lid RS 232 port USB port External temperature sensor socket Multifunction port Overflow Backflow Power socket Power switch Pump connection OUT Pump connection IN... -
Page 3: Table Of Contents
Connecting the tubings �������������������������������������������������������������������������������������������������������������������������������������������� 8 Inserting battery into the WiCo �������������������������������������������������������������������������������������������������������������������������������� 9 Mounting the WiCo to the station �������������������������������������������������������������������������������������������������������������������������� 9 Filling and draining ��������������������������������������������������������������������������������������������������������������������������������������������������� 9 Fluid (Standard information for IKA ® fluid)�������������������������������������������������������������������������������������������������������������� 11 Moving the device �������������������������������������������������������������������������������������������������������������������������������������������������� 12 Charging the Battery Pack RB 1 (rechargeable battery) �������������������������������������������������������������������������������������������� 12 Changing battery to WiCo �������������������������������������������������������������������������������������������������������������������������������������... -
Page 4: Declaration Of Conformity
Declaration of Conformity We declare under our sole responsibility that this product corresponds to the regulations 2014/35/EU, 2006/42/EC, 2014/30/EU and 2011/65/EU and conforms with the standards or standardized documents: EN 61010-1, EN 61010-2-010, EN 61326-1 and DIN 12876-1� Bluetooth module: ®... -
Page 5: Safety Instructions
70 ° C� • Process pathogenic material only in closed vessels under a suitable fume hood� Please contact IKA application sup- ® • After a power failure during operation, the device may port if you have any question�... -
Page 6: Disposal Of Device
• The lithium polymer battery pack must only be used and Risk of burning caused by vapor or CAUTION charged in IKA ® products designed for use with this bat- hot water at the outlet of the cool- tery pack�... -
Page 7: Correct Use
In doing so you will be complying with statutory regulations and helping to protect the envi- Disposal instructions: ronment� • When disposing of the IKA ® battery pack, please tape over • Batteries must be disposed of in accordance with local the contacts with adhesive tape to prevent short-circuiting and national regulations�... -
Page 8: Unpacking
- Any damage should be notified immediately to the shipping agent (post office, railway network or logistics company)� • Delivery scope: - HRC 2 control with WiCo Fig. 2 Fig. 3 - Power cables - Hose olive NW 8 (2 pieces) see Fig�... -
Page 9: Inserting Battery Into The Wico
® Calorimeter Fig. 7 Note: Please note the permissible temperature range of hoses� For hot fluids we recommend the IKA LT 5�20 hoses� ® When the external system is not necessary, please seal Fig. 9 the pump connection IN and OUT with the existing union Note: If the WiCo need be permanently attached to the nuts and stoppers�... - Page 10 Drain port Drain valve Bracket Fig. 11 Note: Pay attention to the fluid level information� Fluid level information on the WiCo display: — Low level — High level Fluid level information on the fluid level indicator: Red (High Level) Red (Low Level) Fig.
-
Page 11: Fluid (Standard Information For Ika ® Fluid)
• Fluid (Standard information for IKA fluid): ® ® Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF�EG28�N10�80�8 -10 ��� 80 -10 … 80 CF�EG39�N20�80�16 -20 …... -
Page 12: Moving The Device
• Moving the device: Empty all fluid in the bath before moving device from one place to other place� The device can be lifted up and moved by holding the top handles or bottom handles� It can also be moved on flat surface by lifting and pushing the front of the device�... -
Page 13: Operator Panel And Display
Operator panel and display • station: Fig. 17 Item Designation Function On/Off button: Switch on/off the station� Adjustable safety circuit: Adjust the safety temperature limit with delivered screwdriver� LED bar: Display different status of the circulator with different color� Contacts: Communicate and charge the WiCo�... -
Page 14: Setting The Safety Temperature
Setting the safety temperature Setting the safety temperature with screwdriver delivered The safety temperature setting will appear on the display� with the device� Factory setting: maximum value� Adjustment range: 0 to 110 °C� Warning: The safe temperature limit must always be set to at least 25 ºC lower than the flash point of the fluid used�... -
Page 15: Useful Information
Note: In standby status, press the right knob (R) to start Note: In an emergency, the device function can be turned off the pump function, the tempering function will not be ac- by pressing the “safe STOP” key (E) at the front of station� tivated�... -
Page 16: Working With Wico
Working with WiCo • Working screen at the time of delivery: Operating Mode: This symbol indicates the operating mode currently select- ed (A, B, C, D)� 0.00 USB: int °C This symbol means the WiCo is communicating or the battery is charged via a USB cable� The symbol no longer appears if no USB cable is being used for communicating ext °C Safe Temp °C... -
Page 17: Menu Navigation And Structure
• Menu navigation and structure: Menu navigation: Press the "Menu" button (U)� Select the menu by turning the right rotating/pressing knob (R) to the right or left� Open the menu item by pressing the right rotating/pressing knob (R)� ... - Page 18 Menu structure: Factory Settings TEMPERING Control Control Mode Internal (int) activated External (ext) Control Parameters Automatic Accurate activated Fast Internal (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) Manual 60.0, 5.0, 0.3, 3, +1.00, -1.00 External (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) 1.0, 15.0, 0.0, 90, +1.00, -1.00 Information (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) Fluids...
-
Page 19: Menu (Details)
The differential time Td (s) is the derivative time and de- temperature� See table in the section “Fluid (Standard in- termines how strongly the rate of change of the control formation for IKA ® fluid)“� deviation affects the control variable� Td compensates for The maximum and minimum temperature values of the rapid control deviations�... - Page 20 4) Cooling: Under "l Δ T (int - ext) l", the maximum difference be- This menu option allows you to activate/deactivate the tween the internal and external temperature can be set� cooling function� The function limits the absolute temperature difference between the external system and internal bath during the 2.
- Page 21 GRAPH: PUMP: In this menu, you can set the options for the time-tem- Limits: perature diagram� In “Limits“ menu option, you are allowed to set the max- 1. Automatic: imum and minimum speed to the pump, and also the The scaling of the temperature axis (Y-axis) is automati- maximum pressure�...
- Page 22 5) Pump rpm: Target speed of pump� 2) Default Status: Define the default state (OFF) of the external valve as 6) M1 (ON/OFF): MODULES M1-Valve: “Open” or “Closed”� It depends on the valve type (nor- OFF: M1 valve in initial state mally open or closed)�...
- Page 23 Temperature (int) Note: The initial safe temperature is 30 ºC and is acti- Temperature-dependent control of the M2-switch� vated after the time limit is set (see “Set”)� By entering the boundaries of “Higher” and “Low”, the temperature range is set in which the M2-switch can be 2.
-
Page 24: Interface And Output
1�1)� The NAMUR commands and the additional specific IKA co mmands serve only as low level commands for communication ®... - Page 25 IN_SP_4 Read the pump setting speed IN_TMODE Read temperature control 0: internal control 1: external control OUT_SP_1 xxx Set the internal setting temperature XXX (if 0: internal control) Set the external setting temperature XXX (if 1: external control) OUT_SP_12@n Set the WD safety temperature with echo of the set (defined) value� OUT_SP_4 xxx Set the pump speed XXX OUT_SP_42@n...
- Page 26 Connection WiCo to station: USB micro B USB micro A USB micro B USB micro A USB cable Fig. 33 Connection the device to PC: 9-pin RS 232 9-pin RS 232 PC 1.1 cable USB cable USB micro B USB A USB micro B USB A USB micro B...
-
Page 27: Maintenance And Cleaning
The protective media stops the - serial number, see type plate growth of algae, bacteria and other microorganisms� - item and designation of the spare part, see www.ika.com - software version� To keep the full cooling performance, the dust filter of the cooler must be checked regularly and cleaned if necessary�... -
Page 28: Error Codes
Error codes Any malfunctions during operation will be identified by an error message on the display� Proceed as follows in such cases: Switch off device using the main switch at the back of the device Carry out corrective measures ... -
Page 29: Accessories
PUR tube (nominal width 8 mm) Labworldsoft ® H.PUR.12 PUR tube (nominal width 12 mm) H.FKM.8 FKM tube (nominal width 8 mm) H.FKM.12 FKM tube (nominal width 12 mm) Tubing insulations: ISO. 8 Insulation (8 mm) ISO.12 Insulation (12 mm) See more accessories on www.ika.com. -
Page 30: Technical Data
Technical data station Operating voltage 230 ± 10 % / 115 ± 10 % / 100 ± 10 % Frequency 50 / 60 Max� input power 1800 (230 VAC) / 1500 (115 VAC) / 1210 (100 VAC) Working temperature range °C - 30 ���... - Page 31 WiCo Permitted on time Max� communication distance (dependent on the building) m Dimensions (W x D x H) 160 x 40 x 105 Weight 0�3 Ambient temperature °C + 5 ��� + 40 Ambient humidity (relative) IP code according to EN 60529 IP 40 Interface RB 1 Battery pack...
-
Page 32: Warranty
Warranty In accordance with IKA warranty conditions, the warranty The warranty does not cover worn out parts, nor does it ® period is 24 months� For claims under the warranty please apply to faults resulting from improper use, insufficient care contact your local dealer�... - Page 33 -Werke GmbH & Co.KG ® Janke & Kunkel-Str� 10 D-79219 Staufen Tel� +49 7633 831-0 Fax +49 7633 831-98 sales@ika�de www.ika.com...
