Menu Settings; Menu Structure; Basic Guide To Setting The Menu Options; Operating Mode (Mode) - IKA HRC 2 basic Operating Instructions Manual

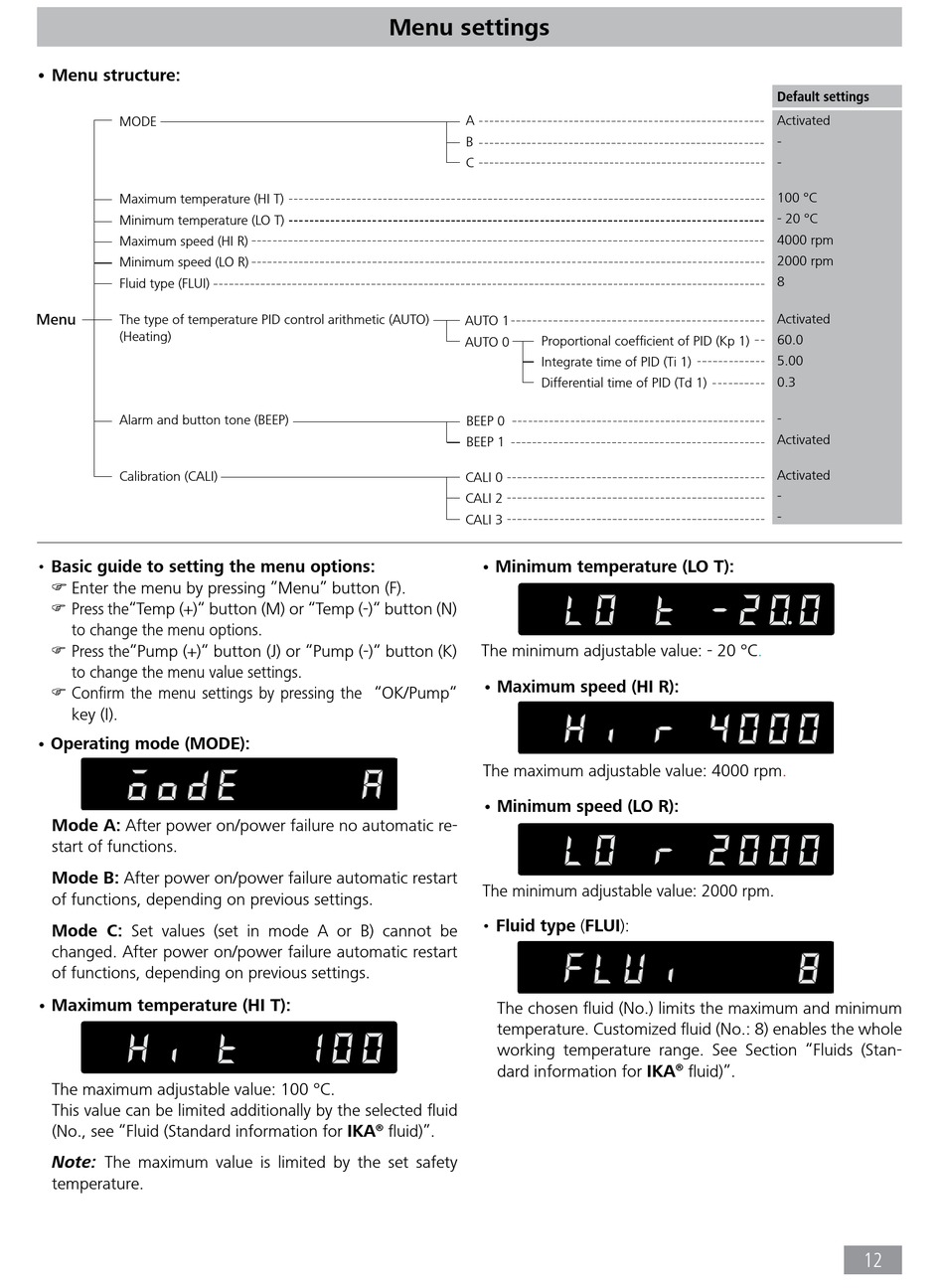

• Menu structure:

MODE
Maximum temperature (HI T)
Minimum temperature (LO T)
Maximum speed (HI R)
Minimum speed (LO R)

Fluid type (FLUI)

Menu
The type of temperature PID control arithmetic (AUTO)
(Heating)
Alarm and button tone (BEEP)
Calibration (CALI)

• Basic guide to setting the menu options:

F Enter the menu by pressing "Menu" button (F)�
F Press the"Temp (+)" button (M) or "Temp (-)" button (N)
to change the menu options�
F Press the"Pump (+)" button (J) or "Pump (-)" button (K)
to change the menu value settings�
F Confirm the menu settings by pressing the "OK/Pump"
key (I)�

Operating mode (MODE):

•
Mode A: After power on/power failure no automatic re-
start of functions�
Mode B: After power on/power failure automatic restart
of functions, depending on previous settings�
Mode C: Set values (set in mode A or B) cannot be
changed� After power on/power failure automatic restart
of functions, depending on previous settings�
Maximum temperature (HI T):
•
The maximum adjustable value: 100 °C�
This value can be limited additionally by the selected fluid
(No�, see "Fluid (Standard information for IKA
Note: The maximum value is limited by the set safety
temperature�

Menu settings

A
B
C
AUTO 1
Proportional coefficient of PID (Kp 1)
AUTO 0
Integrate time of PID (Ti 1)
Differential time of PID (Td 1)
BEEP 0
BEEP 1
CALI 0
CALI 2
CALI 3
Minimum temperature (LO T):
•
The minimum adjustable value: - 20
Maximum speed (HI R):
•
The maximum adjustable value: 4000
Minimum speed (LO R):
•
The minimum adjustable value: 2000 rpm�
• Fluid type (FLUI):
The chosen fluid (No�) limits the maximum and minimum
temperature� Customized fluid (No�: 8) enables the whole
working temperature range� See Section "Fluids (Stan-
dard information for IKA
fluid)"�
®
Default settings
Activated
-
-
100 °C
- 20 °C
4000 rpm
2000 rpm
8
Activated
60�0
5�00
0�3
-
Activated
Activated
-
-
°C�
rpm�
fluid)"�
®
