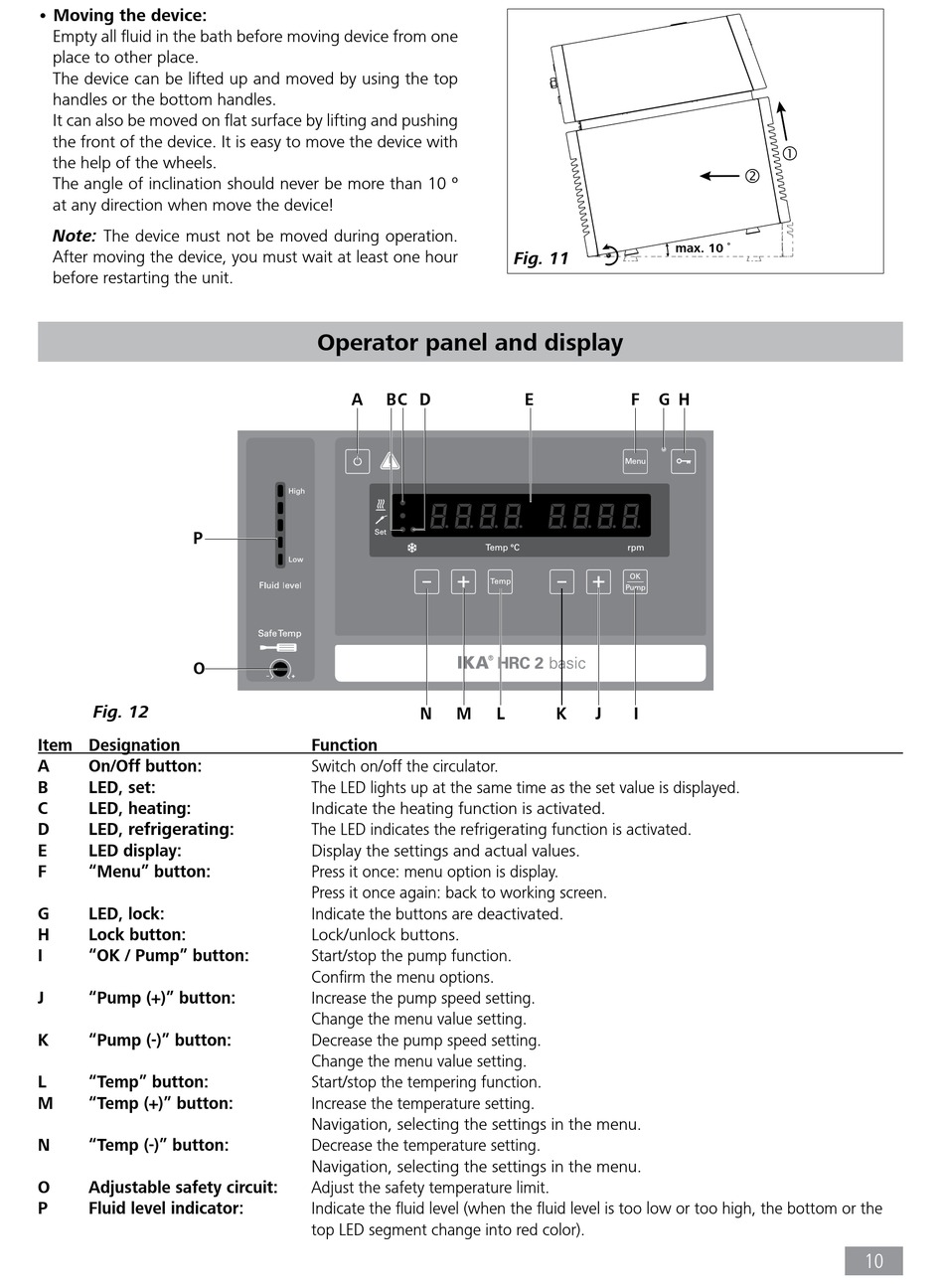

• Moving the device:

Empty all fluid in the bath before moving device from one
place to other place�
The device can be lifted up and moved by using the top
handles or the bottom handles�
It can also be moved on flat surface by lifting and pushing
the front of the device� It is easy to move the device with
the help of the wheels�
The angle of inclination should never be more than 10 º
at any direction when move the device!
Note: The device must not be moved during operation�
After moving the device, you must wait at least one hour
before restarting the unit�
P
O
Fig. 12
Item Designation
A On/Off button:
B LED, set:
C LED, heating:
D LED, refrigerating:
E LED display:
F "Menu" button:
G LED, lock:
H Lock button:
I "OK / Pump" button:
J "Pump (+)" button:
K "Pump (-)" button:
L "Temp" button:
M "Temp (+)" button:
N "Temp (-)" button:
O Adjustable safety circuit:
P Fluid level indicator:

Operator panel and display

A B C D
N M
Function
Switch on/off the circulator�
The LED lights up at the same time as the set value is displayed�
Indicate the heating function is activated�
The LED indicates the refrigerating function is activated�
Display the settings and actual values�
Press it once: menu option is display�
Press it once again: back to working screen�
Indicate the buttons are deactivated�
Lock/unlock buttons�
Start/stop the pump function�
Confirm the menu options�
Increase the pump speed setting�
Change the menu value setting�
Decrease the pump speed setting�
Change the menu value setting�
Start/stop the tempering function�
Increase the temperature setting�
Navigation, selecting the settings in the menu�
Decrease the temperature setting�
Navigation, selecting the settings in the menu�
Adjust the safety temperature limit�
Indicate the fluid level (when the fluid level is too low or too high, the bottom or the
top LED segment change into red color)�
Fig. 11
E F G
L K J I
max. 10 ˚
H
