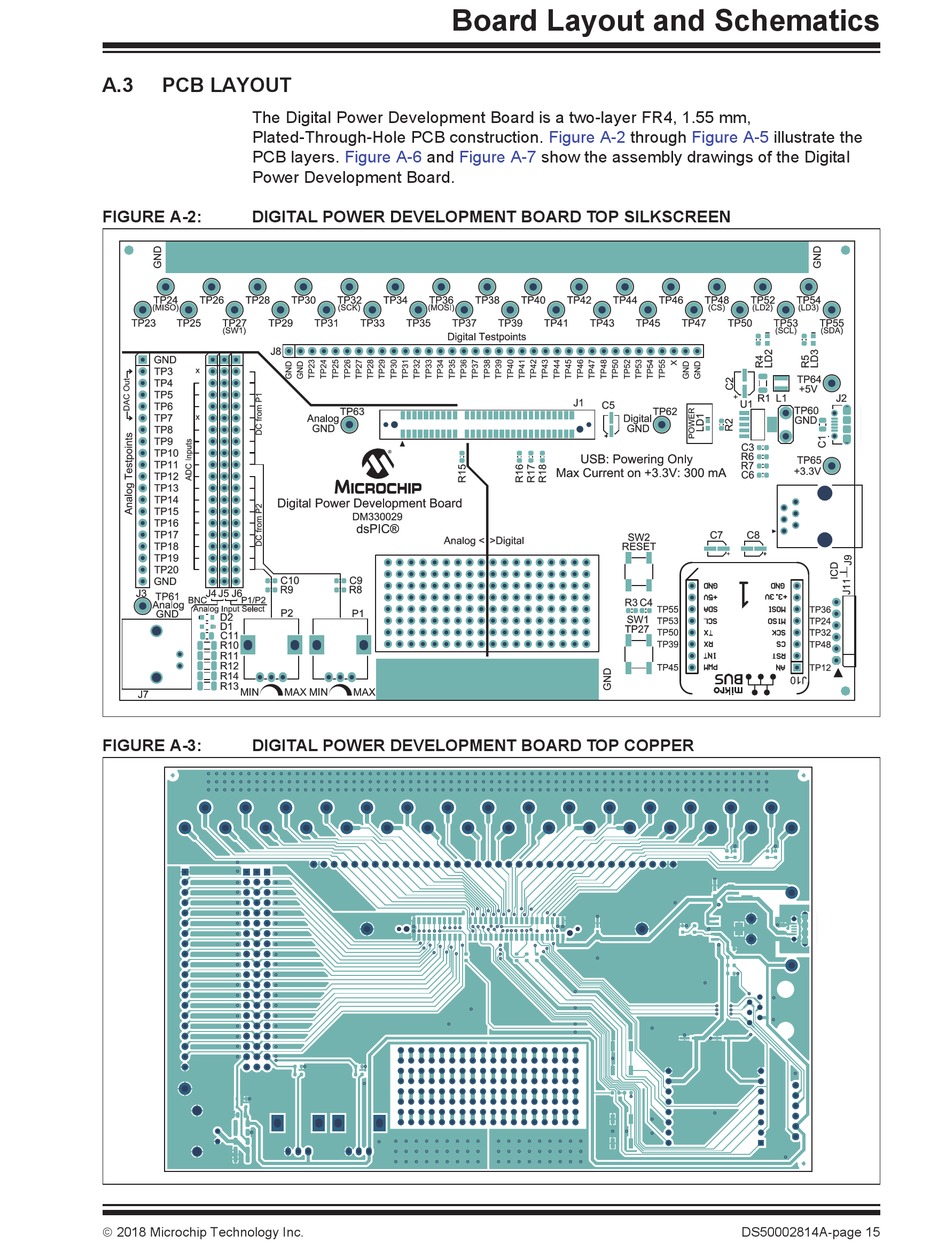

A.3
PCB LAYOUT
The Digital Power Development Board is a two-layer FR4, 1.55 mm,
Plated-Through-Hole PCB construction.
PCB layers.
Power Development Board.
FIGURE A-2:
DIGITAL POWER DEVELOPMENT BOARD TOP SILKSCREEN
FIGURE A-3:
DIGITAL POWER DEVELOPMENT BOARD TOP COPPER
2018 Microchip Technology Inc.
Board Layout and Schematics
Figure A-6
and
Figure A-7
Figure A-2
through
Figure A-5
show the assembly drawings of the Digital
illustrate the
DS50002814A-page 15
