Digital Power Development Board User's Guide

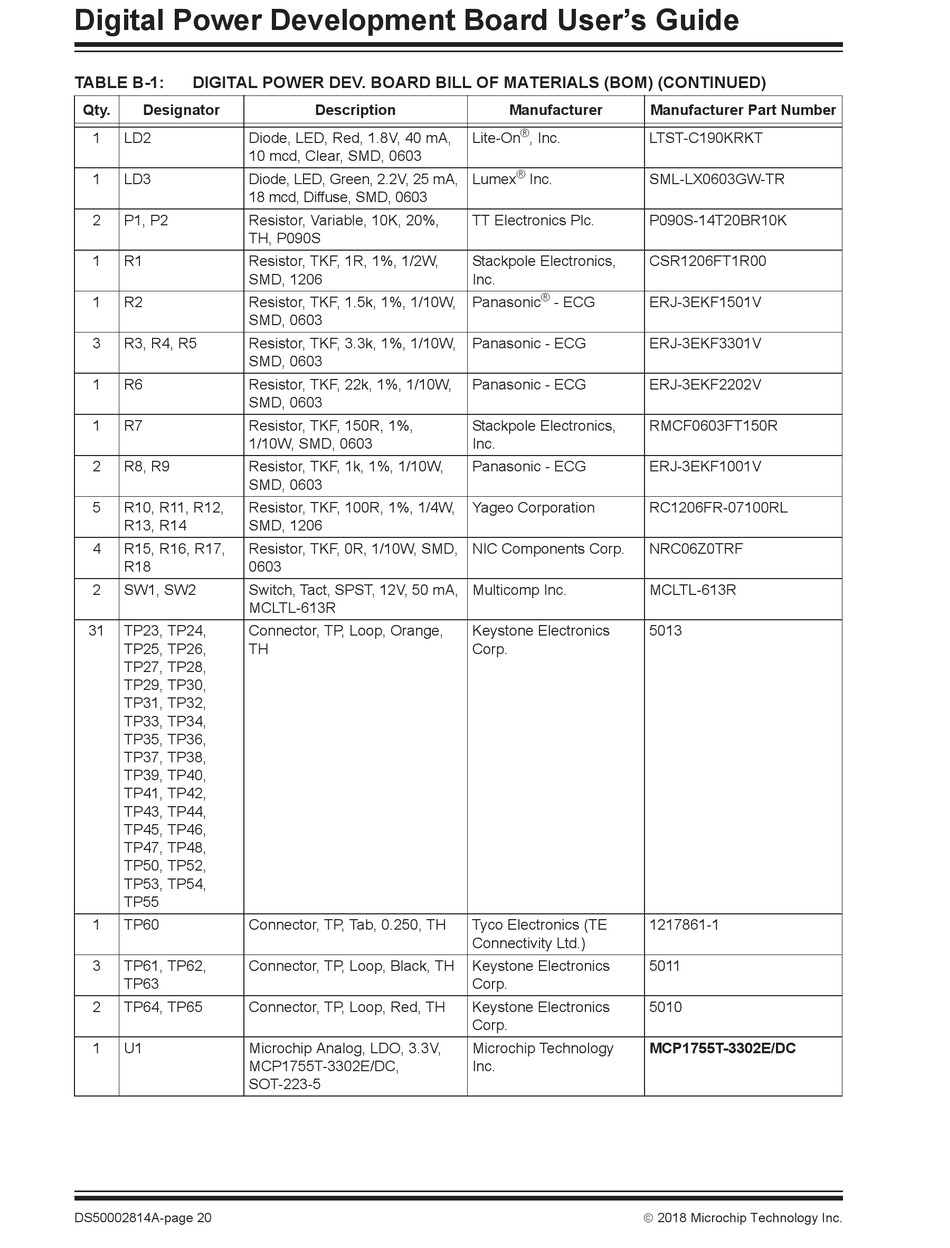

TABLE B-1: DIGITAL POWER DEV. BOARD BILL OF MATERIALS (BOM) (CONTINUED)
Qty. Designator
1 LD2 Diode, LED, Red, 1.8V, 40 mA,
10 mcd, Clear, SMD, 0603
1 LD3 Diode, LED, Green, 2.2V, 25 mA,
18 mcd, Diffuse, SMD, 0603
2 P1, P2 Resistor, Variable, 10K, 20%,
TH, P090S
1 R1 Resistor, TKF, 1R, 1%, 1/2W,
SMD, 1206
1 R2 Resistor, TKF, 1.5k, 1%, 1/10W,
SMD, 0603
3 R3, R4, R5 Resistor, TKF, 3.3k, 1%, 1/10W,
SMD, 0603
1 R6 Resistor, TKF, 22k, 1%, 1/10W,
SMD, 0603
1 R7 Resistor, TKF, 150R, 1%,
1/10W, SMD, 0603
2 R8, R9 Resistor, TKF, 1k, 1%, 1/10W,
SMD, 0603
5 R10, R11, R12, Resistor, TKF, 100R, 1%, 1/4W,
R13, R14 SMD, 1206
4 R15, R16, R17, Resistor, TKF, 0R, 1/10W, SMD,
R18 0603
2 SW1, SW2 Switch, Tact, SPST, 12V, 50 mA,
MCLTL-613R
31 TP23, TP24, Connector, TP, Loop, Orange,
TP25, TP26, TH
TP27, TP28,
TP29, TP30,
TP31, TP32,
TP33, TP34,
TP35, TP36,
TP37, TP38,
TP39, TP40,
TP41, TP42,
TP43, TP44,
TP45, TP46,
TP47, TP48,
TP50, TP52,
TP53, TP54,
TP55
1 TP60 Connector, TP, Tab, 0.250, TH
3 TP61, TP62, Connector, TP, Loop, Black, TH
TP63
2 TP64, TP65 Connector, TP, Loop, Red, TH
1 U1 Microchip Analog, LDO, 3.3V,
MCP1755T-3302E/DC,
SOT-223-5
