MRF89XAMxA PICtail/PICtail Plus Daughter Board Schematic
A.3
MRF89XAMxA PICtail/PICtail PLUS DAUGHTER BOARD PCB LAYOUT
The MRF89XAMxA PICtail/PICtail Plus Daughter Board is a 2-layer, FR4, 0.062 inch,
plated through hole PCB construction.
FIGURE A-2:
FIGURE A-3:
© 2011 Microchip Technology Inc.

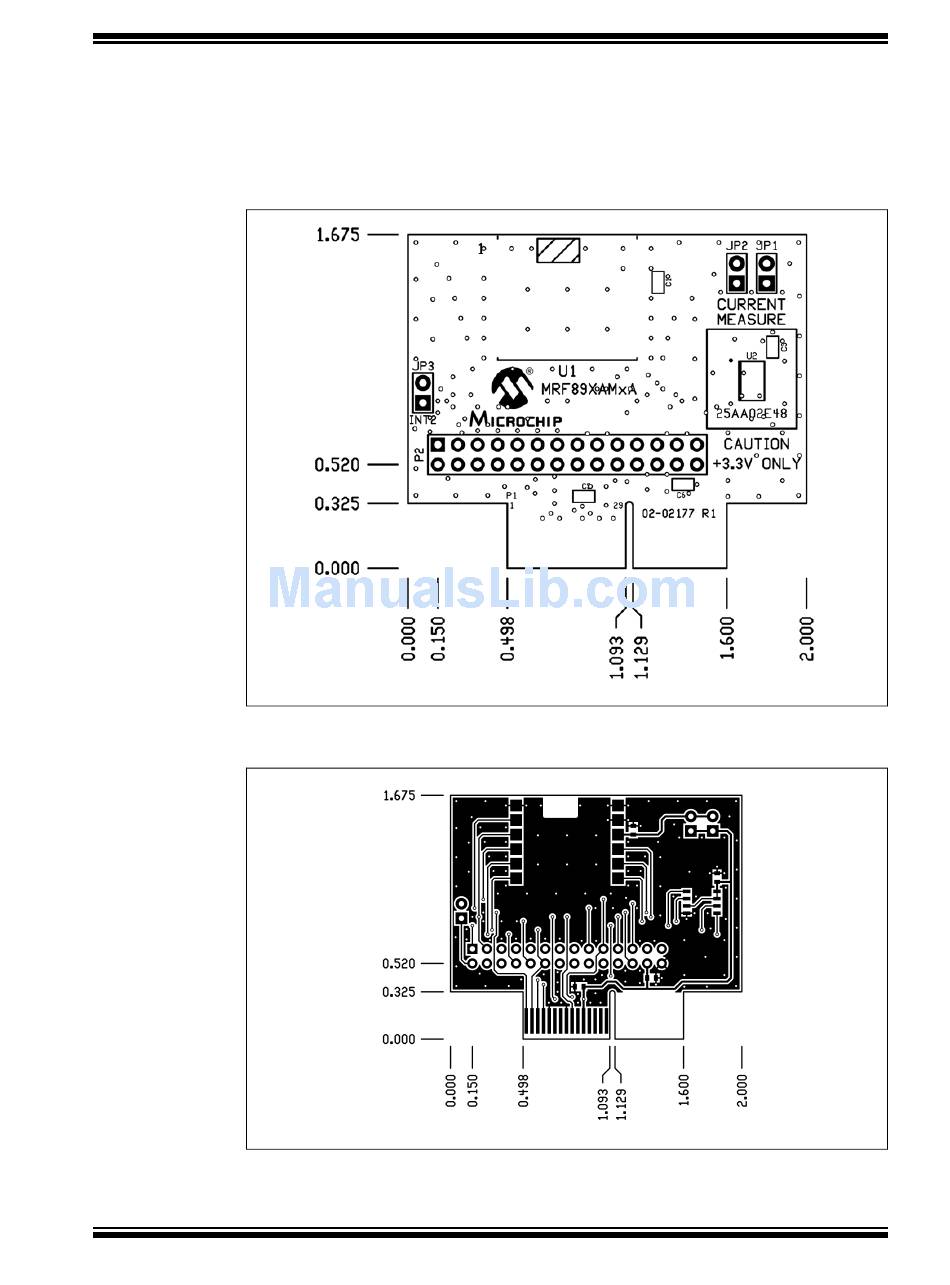

MRF89XAMxA PICtail™/PICtail PLUS DAUGHTER BOARD
TOP SILKSCREEN
MRF89XAMxA PICtail™/PICtail PLUS DAUGHTER BOARD
TOP COPPER
