1- GENERAL DESCRIPTION
Electronic for the remote control of tubular motors for roller blinds, rolling shutters, doors with limit
switch inside or outside the motor, radio receiver section with transmitter channel memorization by
means of internal push button or via radio.
Possibility to connect wired with auto-test control before every closing movement.
Possibility to connect a 240 V
1min.)
Plastic housing for external use equipped with clamps.
Possibility of centralized controls for simultaneous control of several appliances.
Possibility to connect external mechanical controls with dynamic push button function and blockage
push button.

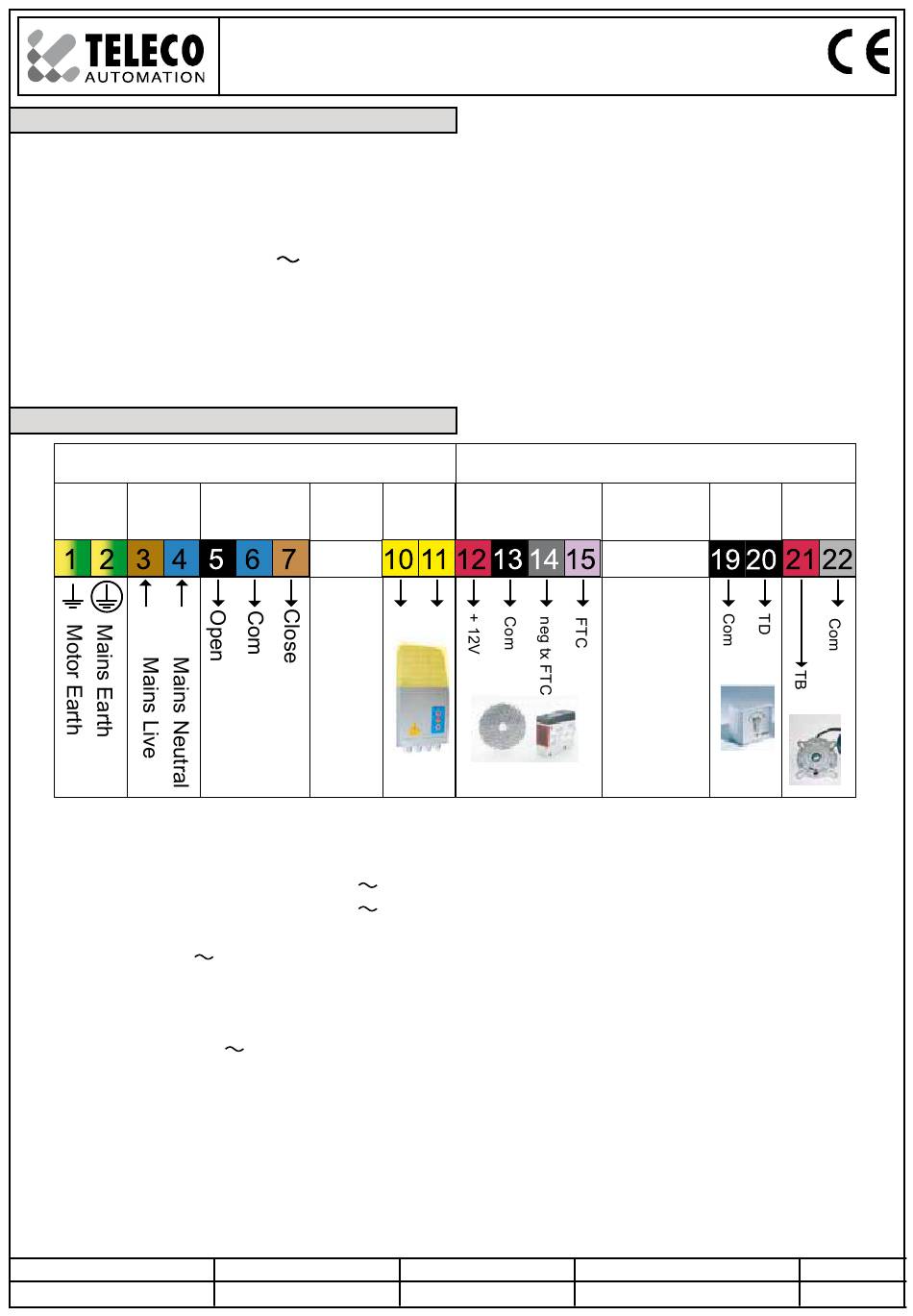

2- CONNECTIONS
Power
Ground
supply
240V
L N
Description of the connections:
1
Input ground general power supply
2
Input ground motor
3
Input general power supply 240 V
4
Input general power supply 240 V
5
Opening output relay motor contact
6
Output 240 V
(common motor)
7
Closing output relay motor contact
10-11 Output LC 240 V
courtesy lamp
(only for the version with courtesy light)
12
Positive output 12/15Vdc 80mA
for photocells
13
Safety common contact
14
Negative output for photocells (autotest)
Code Number:
TELECO AUTOMATION SRL - Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
TELEPHONE: ++39.0438.388511 FAX: ++39.0438.388536
www.telecoautomation.com
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
courtesy lamp with variable time from 1 min. to 12 hours (default
Zone 240V
Motor
Motor
neutral by means of fuse
300 W max. for
Series
TVLink RS868
Courtesy
Réflex photocell
lamp
15
FTC input (NC normally closed)
phase
19
Push buttons common for TD
neutral
20
Dynamic push-button input (NO normally open)
21
Stop push-button TB (NC normally closed)
22
Push buttons common for TB
24
Antenna ground
25
Antenna pole (wire 8.5cm)
Model number
TVPRP868F08E
1
Safety zone, isolated low voltage
Draft
T574.01
TB
TD
Date
25/11/13
Advertisement
Table of Contents
Related Manuals for Teleco TVLink RS868
Summary of Contents for Teleco TVLink RS868
- Page 1 TELEPHONE: ++39.0438.388511 FAX: ++39.0438.388536 www.telecoautomation.com This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights 1- GENERAL DESCRIPTION Electronic for the remote control of tubular motors for roller blinds, rolling shutters, doors with limit switch inside or outside the motor, radio receiver section with transmitter channel memorization by means of internal push button or via radio.
- Page 2 Warning: The installed safety device must ensure the safety of the door according to EN13241-1 (EN12453, EN12445) If TB stop NC contact is not used it must be jumpered. If the FTC input NC is not used it must be jumpered to 14 terminal Connections with reflex Connections with photocells...
- Page 3 After the reset, the control unit carries out only opening commands until the door is fully opened. After the complete opening, the functioning of the commands is standard. 4- Dip-switch function Dip1: OFF The closing movement is in dead man mode, during the opening it is automatic (even if the automatic reclosing is excluded) The opening and closing movement is automatic.
- Page 4 5.0- To memorize the transmitters from the receiver Transmitters The transmitters are encoded in the factory and each transmitter has its own unique code. Caution! If you keep a channel button pressed down for more than 30 seconds the transmitter will automatically turn off.
- Page 5 5.1.2- Mode 2: open The memorization of the channels is done in pairs: close channel 1 with channel 2 (or vice versa) and channel 3 with channel 4 (and vice versa) and channels 5-6-7. Press twice and hold the push button Transmit one of the channel which is to P1 down, the buzzer B1 will make two be memorized, the buzzer B1 will sound...
- Page 6 5.2.1- To cancel a code from the receiver: the deletion in single mode or in pairs is done as in the memorization mode 1, 2 and 3: Press 4 times and hold the push- Transmit the code which is to be button P1 down, the buzzer B1 will cancelled, once the channel is cancelled emit an intermittent slowly sound.
- Page 7 5.3- How to insert a transmitter via radio without accessing the receiver when the memory is empty (first installation), in this mode the channels function of the transmitter will be in mode 2. The transmitter to be inserted will become the master transmitter for inserting other transmitters. Press the internal push-button P3 of the Transmit the channel which is to be transmitter, the receiver will be activated...
- Page 8 6.0- Time settings 6.1- Procedure for the courtesy light time setting (from 1min max 12h) This procedure can be done within 30 seconds after the reset. Sum 1min to the set time. 1- Press for 5 sec. the release and re-press within 5 sec. the (if after 5 sec.
- Page 9 6.2- Procedure for the automatic re-closing time setting (from 5s max 90s) (default 5sec.) This procedure can be done within 30 seconds after the reset. Sum 5s to the set time. (if after 5 sec. the push but- 1- Press for 5 sec. the push release and re-press within 5 sec.
- Page 10 7.0- Courtesy light operation mode as the ambient light or alarm This procedure can be done within 30 seconds after the reset. 1- Press for 5 sec. the push release and re-press within 5 sec. the sound: button P3 of the transmitter; push button P3 of the transmitter 3 3 beeps to indicate ambient the buzzer will sound 1 beep,...
- Page 11 8.0- Acoustic signals emitted by the control unit 1 beep: reset Beep ... 2 beeps: motor is not connected 3 beeps: error on FTC input (FTC is activated) 5 beeps: error on safeties test (safeties test failed) 8 beeps: Limit switch error It is possible to close the door also with a not working CSP or with a negative safety test (forced closing), by pressing and holding down the closing push button;...
- Page 12 EXPLOSION VIEW DISASSEMBLY BOX DIMENSIONS ASSEMBLY 205 mm 85 mm 145 mm 290 mm 85 mm 145 mm www.telecoautomation.com...
