TE LE C0
TELECOAUTOMATION
SRL - Via dell'Artigianato,
16 - 31014 Colle
Umberto
(TV) ITALY (
E
•••
~
TELEPHONE:
++39.0438.388511
FAX:
++39.0438.388536
•.••
AUTOMATION
Thisdocument
isthe
property
of
TelecoAutomation
Sriwho
reserves ell
reproduction
end copying
rights

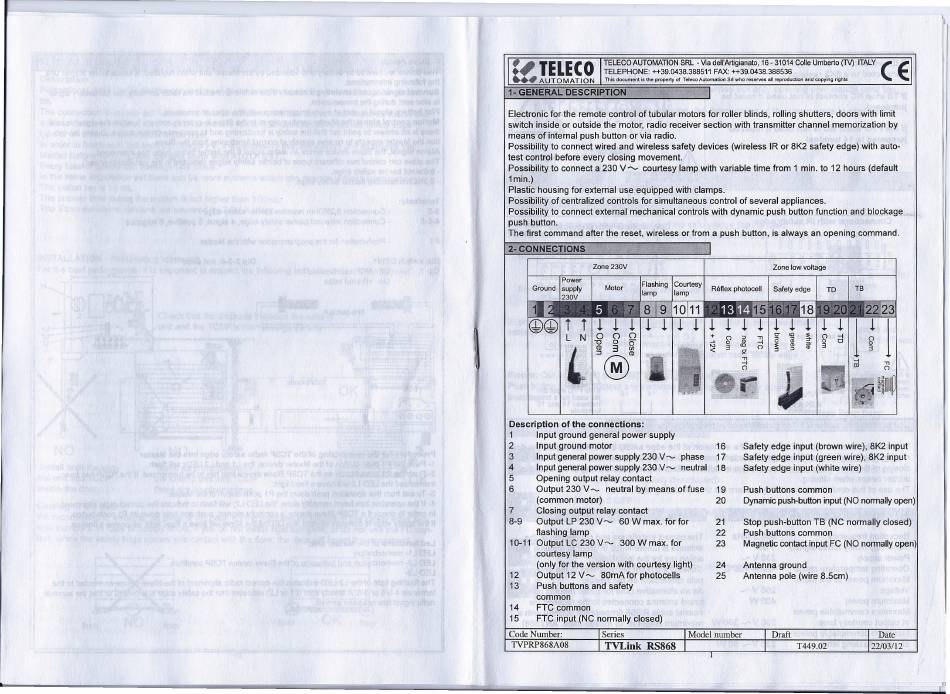

Electronic for the remote control of tubular motors for roller blinds, rolling
shutters,
doors with limit
switch inside or outside the motor, radio receiver section with transmitter channel memorization
by
means of internal push button or via radio.
Possibility to conneet wired and wireless safety devices (wireless IR or 8K2 safety edge) with auto-
test con trol before every closing movement.
Possibility to connect a 230
V'"'-
courtesy lamp with varia bie time from 1
min.
to 12 hours (detault
1min.)
Plastic housing
tor
extemal use equipped with
clamps.
Possibility
of
centralized controls for simultaneous
control of several appliances.
Possibility to connect external mechanical
controls with dynamic push button function and blockage
push button.
The
first
command after lhe
reset,
wireless or trom a push
button,
is always an opening
commando
~.:.CONNEf:TIONS
Description
of the connections:
1
Input ground general power supply
2
Input ground motor
16
3
Input general power supply 230 V
---
phase
17
4
Input
general
power supply 230 V --- neutral
18
5
Opening output relay contact
6
Output 230 V
---
neutra I by means of fuse
19
(common motor)
20
7
Closing output relay contact
8-9
Output LP 230 V---
60 W
max.
for for
21
flashing lamp
22
10-11
Output LC 230 V --- 300 W max. for
23
courtesy lamp
(only for the version with courtesy light)
24
12
Output 12 V
---
80mA for photocells
25
13
Push buttons and safety
common
14
FTC common
15
FTC input (NC norrnally closed)
Safety edge input (brown
wire),
8K2 input
Safety edge
input
(green
wire),
8K2 input
Safety edge input (white
wire)
Push buttons common
Dynamic push-button input (NO normally open)
Stop push-button TB (NC
normally
closed)
Push buttons common
Magnetic contact input FC (NO normally open)
Antenna ground
Antenna pole (wire
8.5cm)
Code Number:
Series
Draft
Date
TVPRP868A08
TVLink RS868
T449.02
22/03/12
