GENERAL DESCRIPTION
PRV868 Electonics for the remote control of tubular motors for rolling shutters with mechanical or electronic stop incorporated in the motor.
Made with an ABS V0 plastic casing.
Possibility for single or centralised commands for simultaneously controlling several shutters.
Working time is fixed at 90 sec.
Programming is all remotely done by means of transmitters. You do not have to do anything on the receiver.
The code transmission type is "Rolling-code". The code is changed for every transmission through the use of an algorithm that only the receiver is able to recognize.
Functions:
There are two operating ways;
- the first one permits, with short impulses (from 50 to 300 ms.), the inclination of the position of the venetian blind both in the opening and in the closing direction;
- the second one allows the complete movement of the venetian blind in the opening and in the closing direction, the movement is automatic through impulses given via
radio or by push-buttons higher than 300 ms.

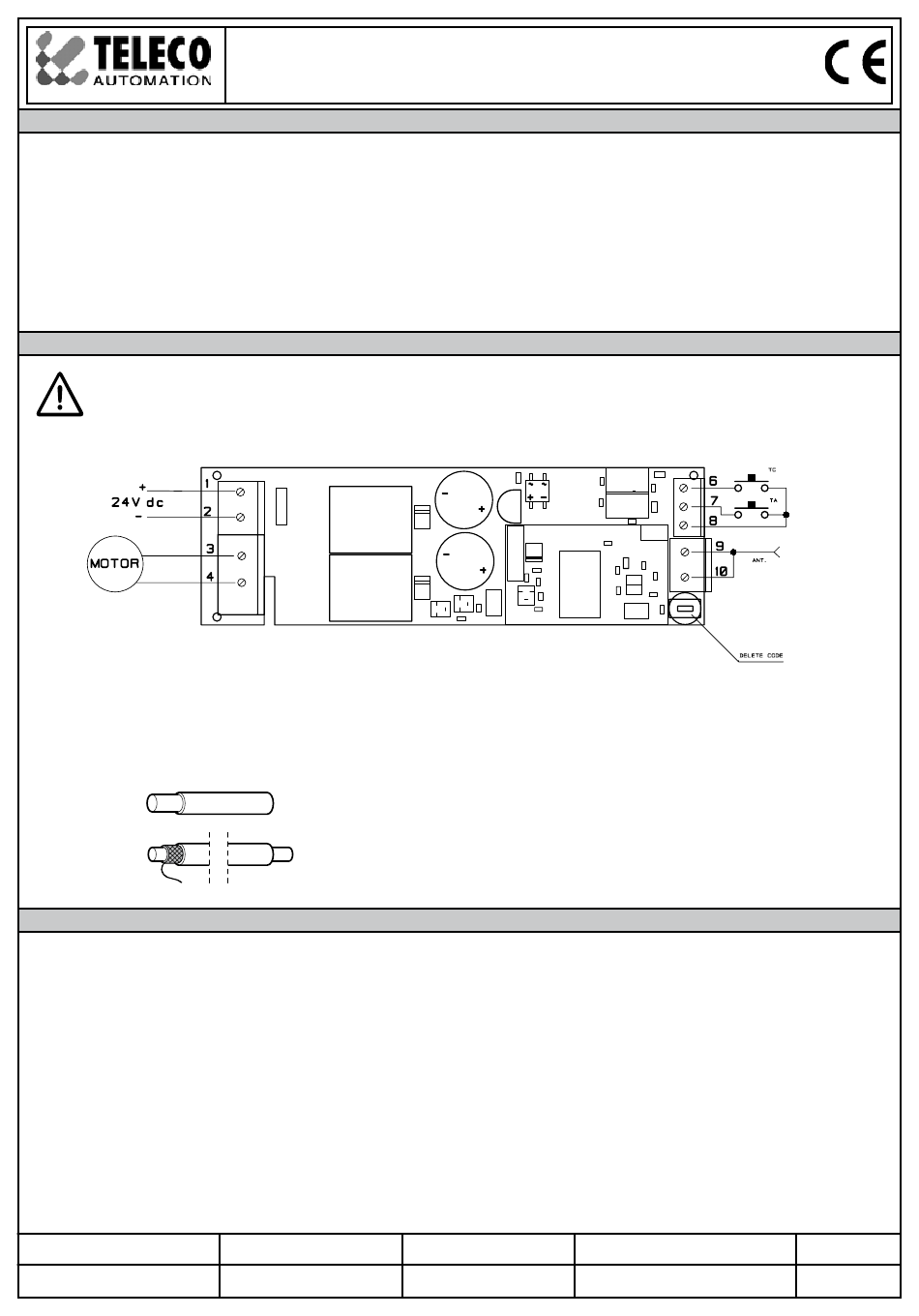

ELECTRONIC CARD
The subject appliance must be installed only by qualified technical personnel in compliance with the standards.
Only suitable materials for the connections must be used to guarantee insulation that complies with current standards on the subject of electrical safety.
The programmer carries out movement commands by radio; all the necessary safety devices are to be seen to separately.
8
Aerial wire
8.5 cm
8
Coaxial wire
9
MEMORISATION
Memorizing
1)push and keep pushed the push-button P2, after 0,8 sec. the buzzer will sound continuously
2)transmit the channel to be memorized, the buzzer will sound intermittently
In order to introduce a new code repeat the operations 1 and 2.
If the code has not been memorized, the causes can be the following:
-the code already exists in the memory
-the memory is full (max 83 different codes); in this case the buzzer sounds intermittently for 3 sec. at each switching on
In order to cancel a code:
1)push twice at intervals of 0,8 sec. and keep pushed the push-button P2, after 0,8 sec. the buzzer will sound intermittently slowly
2)transmit the code that has to be cancelled;
In order to cancel another code repeat the operations 1 and 2.
In order to cancel all the codes in the memory:
1)push three times at intervals of 0,8 sec. and keep pushed the push-button P2, the buzzer will sound intermittently fastly. Keep pushed it for at least 10 sec. until
the buzzer will sound continuously. Now release the push-button.
Code Number:
TVPRV868A24
TELECO AUTOMATION SRL - Viale del Lavoro, 5 - 31014 Colle Umberto (TV) ITALY
TELEPHONE: ++39.0438.388511 FAX: ++39.0438.388536
8.5 cm terminal
Series
TVLink RS868
There can be interference with the device's radio reception
caused by several factors like, for instance:
-radioelectric interference from other appliances in the room that
transmit on the same frequency
-if its casing is metal; use a plastic casing only or pass the aerial
outside the casing by connecting a coaxial cable
-if the aerial wire is laid with the power supply wires; the aerial
must be positioned so it is as far away as possible from the
electrical cables.
