Teleco Daisy Simple Instruction

Wi-fi interface, app-programmable, to remotely radio control all devices from smartphones
Hide thumbs

Advertisement

Table of Contents

Product code:
TVDAY868A01
Feautures
•
Available in 868.3MHz frequencie.
•
Easy access via Wi-Fi or mobile network from any compatible device.
•
Up to 50 programmable device commands.
•
Possibility to create scenarios.
•
Weekly timer to send commands at a specific date and time.
Via dell'Artigianato, 5 - 31014 Colle Umberto (TV) ITALY
Tel. +39.0438.388511 Fax +39.0438.388536
Web site: www.telecoautomation.com
WISE CONTROLS APP
G304BK-CO-SER1
1.0 Characteristics
* The memorized transmitters are not deleted.

1.1 Technical specification

G304BK-CO-SER
- Transmission frequency
- Power supply
- Operating temperature range
REV: 2.0
TVDAY868A01_MR

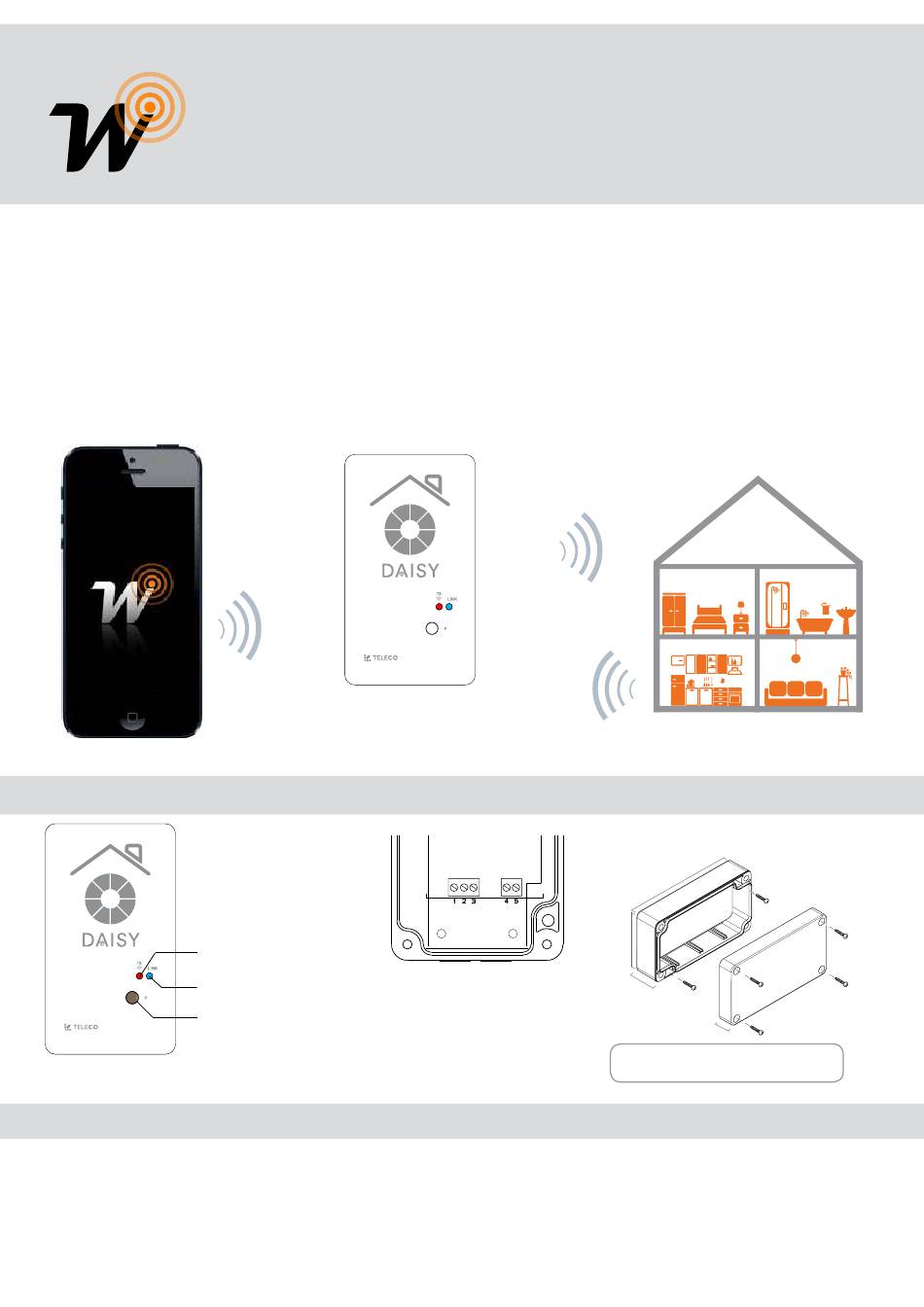

Wi-Fi interface, App-programmable, to remotely radio control
all devices from Smartphones.
SIMPLE INSTRUCTION
Via dell'Artigianato, 5 - 31014 Colle Umberto (TV) ITALY
Tel. +39.0438.388511 Fax +39.0438.388536
Web site: www.telecoautomation.com
G304BK-CO-SER1
Wi-Fi
DAISY BOX
colore come G304BK-CO-SER
REV: 2.0
DATE: 01/06/18
LED: Radio commands
Transmission
LED: Wi-Fi Network
Button: Reset Wi-Fi
Network configuration (*)
868.3 MHz (TVDAY868A01)
5 / 12 ÷ 24Vdc
-20° ÷ +50°C
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
868.3MHz
868.3MHz
* The Blue Series receivers are bidirectional. They can receive
and execute commands and send the status back to DAISY BOX
1.
+12 ÷ 24Vdc
2.
GND (-)
3.
+5Vdc
4.
COMMON
5.
N.O. CONTACT INPUT
- Max. possible virtual transmitters
- Protection
- Material of the box and its cover
- Network Wi-Fi module
- Frequency band
*
Thermoplastic ABS
Not suitable for direct UV exposure
115 mm
65 mm
25 mm
15 mm
The product guarantees IP54 rating
if properly assembled.
50
IP54
Thermoplastic ABS
802.11 b/g/n
2.4GHz
DATE:11/04/19
DOC.: T804.01_EN
M
