Hardware Orientation

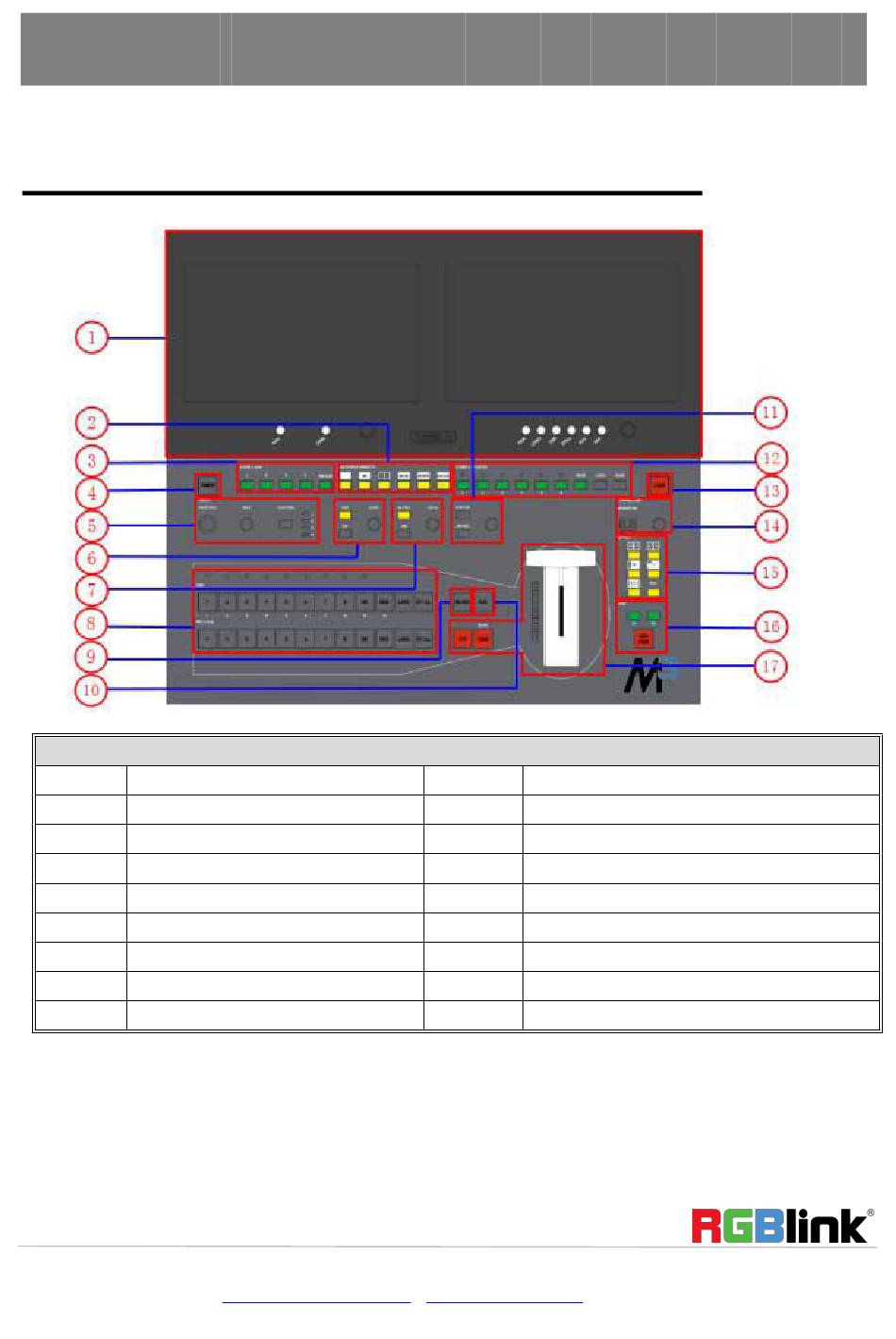

Front Panel

Panel Instruction
1 LCD display
2 Multiview presets area
3 Layer/Aux area
4 Power button
5 Position, Size and Control area
6 DSK edit area
7 BLEND edit area
8 Input sources area
9 Black button
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 | support@rgblink.com
10 AUX button
11 Menu area
12 Stored presets area
13 Lock top panel area
14 Transition time control area
15 WIPE operation area
16 OSD edit area
17 Switch Modes area
