User can also custom the size and position of each SPGM.

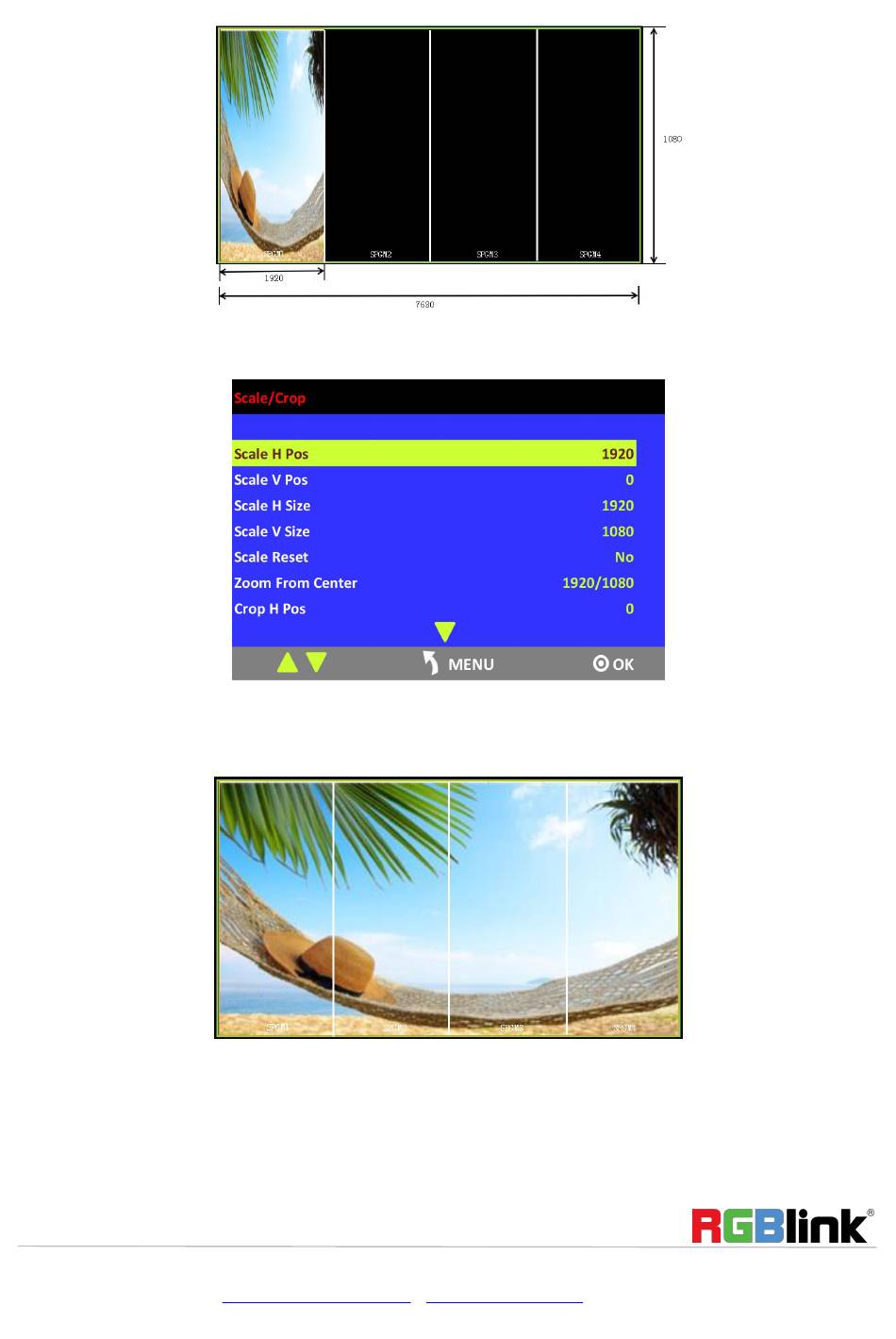

(3) Push the [SIZE] button, and enter to the menu items as follows:
According to the parameters from Step 2, set Scale H Size as 7680, [1920 (SPGM1)+1920 (SPGM2) +1920
(SPGM3) +1920 (SPGM4)=7680]. The image or video will output to the 4 split screens, as shown in the figure
below:
PGM&SPGM Splicing
1. Turn the rotary knob, and select <PGM&SPGM Splicing>, push the knob to confirm, and enter to the menu
items.
