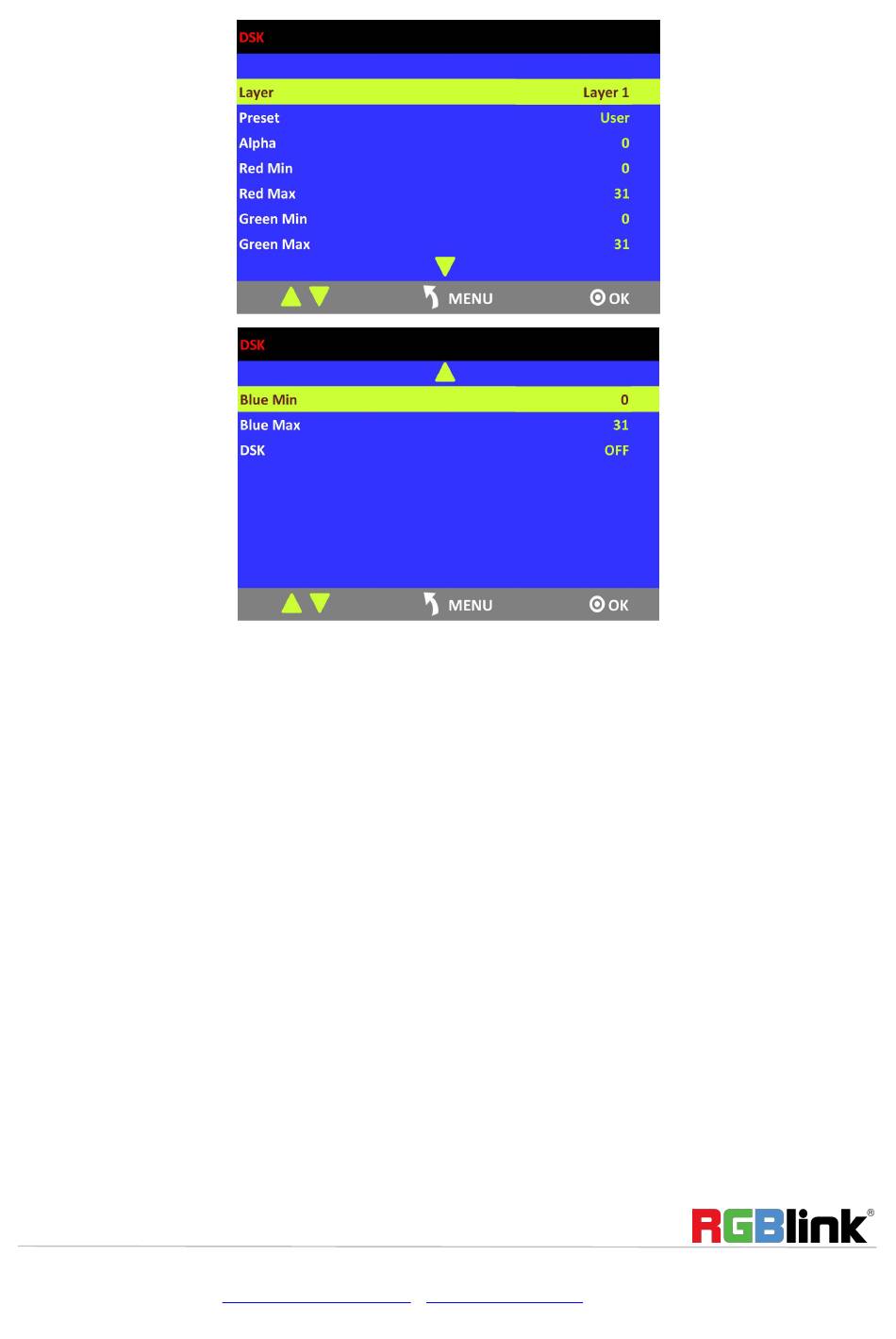

Layer: Select the layer that will DSK.
Preset: Can select user, black background, green background, blue background, red background and
white background.
Alpha: The adjustment range is between 0~128.
Red Min: The adjustment range is between 0~255.
Red max: The adjustment range is between 0~255.
Green Min: The adjustment range is between 0~255.
Green Max: The adjustment range is between 0~255.
Blue Min: The adjustment range is between 0~255.
Blue Max: The adjustment range is between 0~255.
DSK: Can select enable or disable the DSK function.
BLEND Setting
1. Firstly, enable the multiview function.
2. Push the [SYSTEM] button, and enter to the menu items. Turn the rotary knob, and select <Blending>, push
the knob to confirm. (Or push the [BLEND] button to enter to the blend menu items)
